GRENZEBACH - Grenzebach FSW Machine DSM 3000SI-OTH-GRE-2021-00001

Rs. 15,434,503
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

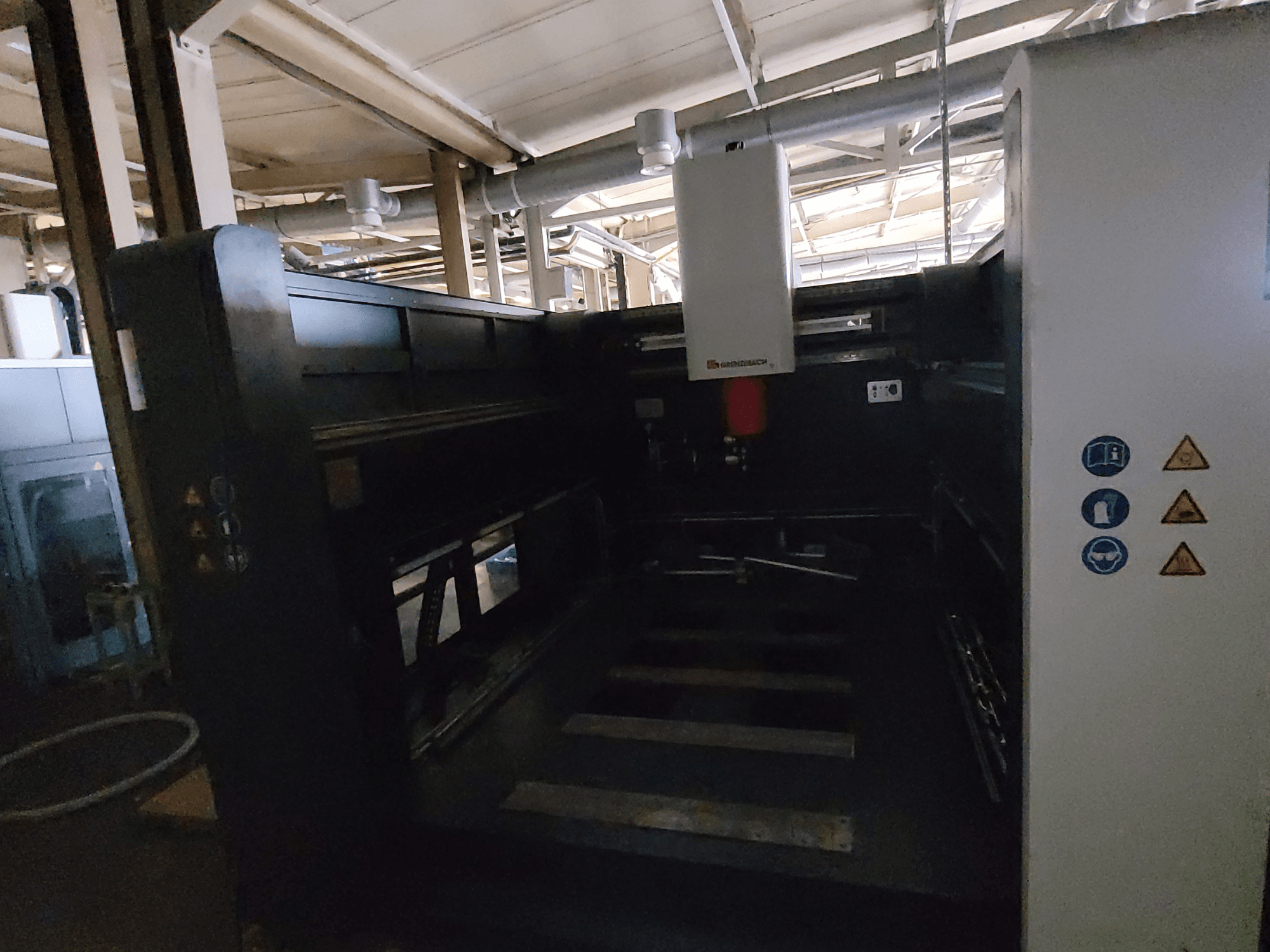

This 3-axis GRENZEBACH FSW Machine DSM 3000 was manufactured in 2021. It features a working area with an X-axis of 1,400 mm, Y-axis of 3,000 mm, and Z-axis of 400 mm. The machine has a maximum spindle speed of 5,000 rpm and a rapid traverse of 20 m/min. If you are looking to get high-quality friction stir welding capabilities, consider the GRENZEBACH FSW Machine DSM 3000 we have for sale. Contact us for further details.

Overview

  • brand: GRENZEBACH
  • year: 2021
  • MODEL: Grenzebach FSW Machine DSM 3000
  • application type: Other Machine Tools
  • Location: Slovenia
  • machine type: Machine Tool

Technical Information - GRENZEBACH Grenzebach FSW Machine DSM 3000

Dimensions

  • Machine Height: 3444 mm
  • Machine Length: 4920 mm
  • Machine Weight: 26000 kg
  • Machine Width: 4300 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1400 mm
  • Y-axis Travel: 3000 mm
  • Z-axis Travel: 400 mm

Additional Information

  • Units available: 2

  • Weights:

    • Basic machine: 18,750 kg

    • ZC axis: 1,290 kg

    • Welding head: 10 kg

    • Control system: 750 kg

    • Overall machine: approx. 26,000 kg

  • Electrical:

    • Max. power consumption: 10 kW

    • Voltage: 400 V

    • Frequency: 50 Hz

    • Power supply: 3PH + N + PE

    • Mains fuse: 32 A

  • Pneumatics:

    • Min. line pressure: 6 bar

    • Connection diameter: 1"

    • Air consumption: approx. 21 m³/h

    • Compressed air quality: ISO 8573-1 Class 4.4.1

  • Hydraulic system:

    • Flow rate: 5.1 l/min

    • Rated pressure: 340 bar

    • Filling quantity: approx. 15 l

    • Effective capacity: approx. 11 l

  • Working area:

    • Max. rapid traverse: 20 m/min

    • Max. process speed: 1.5 m/min

  • Process/operating data:

    • Process force X/Y: 2.6 kN

    • Process force Z: 10 kN

    • Max. spindle speed: 5,000 rpm

    • Operating temperature: +15 to +35 °C

    • Max. humidity: 70%

    • Max. operating time: 24 h/day

Additional equipment

  • Clamping device (approx. 7,500 kg)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
