Ingersoll Rand - D480EC-ADE-OTH-ING-2022-00001

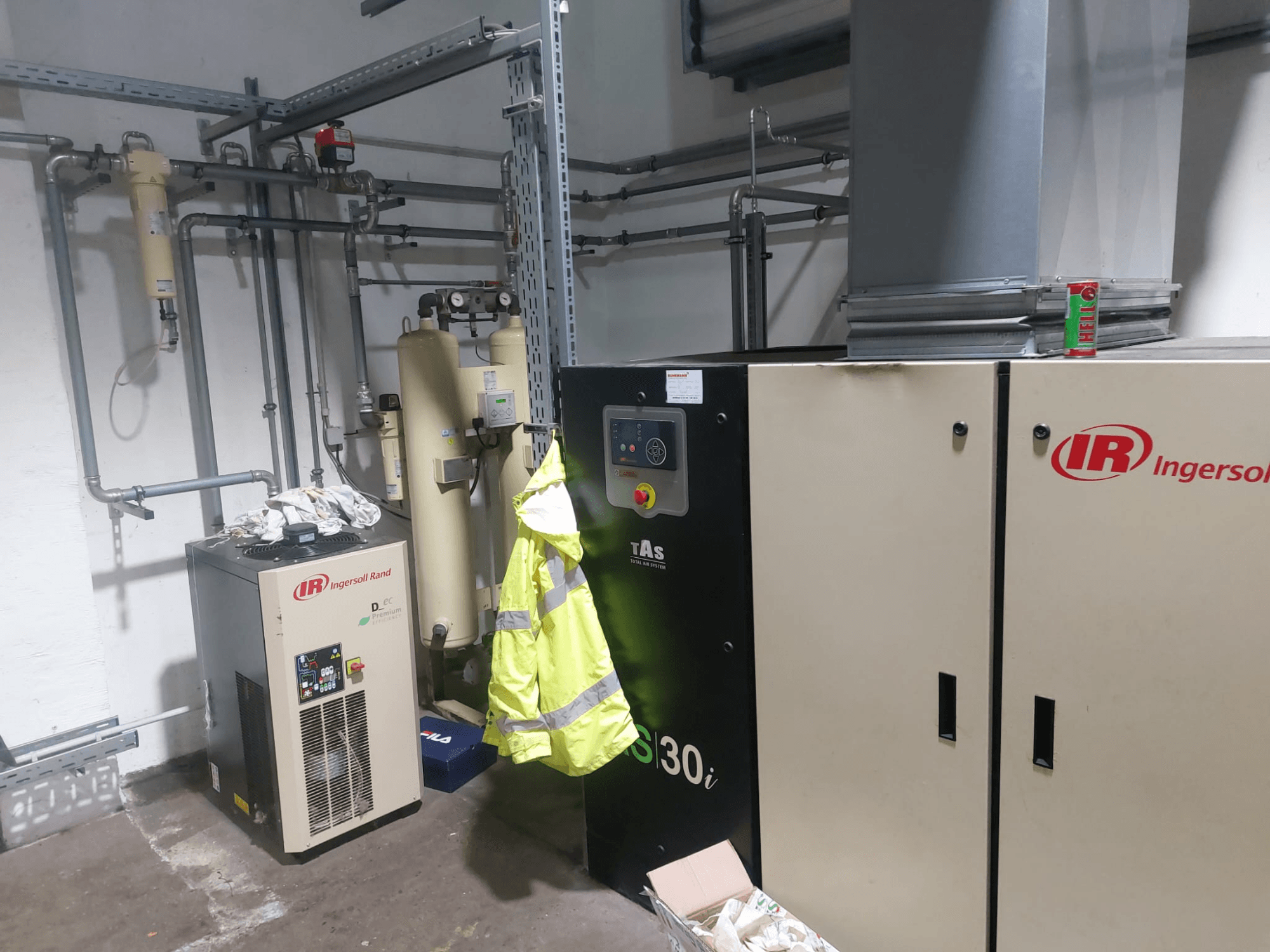

INGERSOLL RAND RS30i-A9.6-TAS

- Machine Type: Oil-Flooded Rotary Screw Air Compressor (Total Air System / TAS Configuration)

- Nominal Power / Input Shaft Power: 30 kW (40 HP)

- Maximum Allowable Working Pressure: 9.6 bar (138 psi)

- Flow Rate / Air Capacity (FAD): ~4.7 - 5.2 m³/min (164 - 184 CFM)

- Motor Speed: 2970 rpm

- Electrical Supply: 400 V / 3 Phase / 50 Hz

- Gross Mass / Package Weight: 1150 kg

- Sound Level: 69 dB(A)

- Integrated Features: Xe-70M Microprocessor Controller, Integrated Refrigerated Air Dryer, Moisture Separator, Dual-Stage Coalescing Air Filters, Heavy-Duty Pre-Filters, High-Efficiency TEFC IP55 Main Motor

- Piping Connections: 1.5" NPT Discharge

INGERSOLL RAND RSE37n-A13

- Machine Type: Rotary Screw Air Compressor

- Installed Motor Capacity: 37 kW

- Stage Pressure: 13 bar

- Debit Volume / Air Flow Capacity: 6,90 m³/min

- Suction Pressure: 1,0 bar

- Full Load Current: 81 A

- Motor Speed: 3600 rpm

- Air End Model: EK140NK

- Version: V4

- Voltage / Phase / Frequency: 400V / 3 Ph / 50 Hz

- Compression Medium: Luft

- Total Weight: 952 kg

INGERSOLL RAND D600EC-A

- Machine Type: Compressed Air Refrigeration Dryer

- Electrical Power: 1,77 kW

- Power Supply: 230V / 1 Ph / 50 Hz

- Coolant / Refrigerant: R407C (1,70 kg)

- CO2 Equivalent: 3,016 t

- Ambient Temperature Range (TS): +2 / +50 °C

- Compressed Air Operating Temperature Range (TS): +5 / +60 °C

- Compressed Air Maximum Operating Pressure (PS): 16 barg

- Low Pressure Range (LP): -15 / 52 °C (20 barg)

- High Pressure Range (HP): -10 / 120 °C (30 barg)

INGERSOLL RAND D480EC-A

- Machine Type: Compressed Air Refrigeration Dryer

- Electrical Power: 1,77 kW

- Power Supply: 230V / 1 Ph / 50 Hz

- Coolant / Refrigerant: R407C (1,20 Kg)

- CO2 Equivalent: 2,129 t

- Ambient Temperature Range (TS): +2 / +50 °C

- Compressed Air Operating Temperature Range (TS): +5 / +60 °C

- Compressed Air Maximum Operating Pressure (PS): 16 barg

- Low Pressure Range (LP): -15 / 52 °C (20 barg)

- High Pressure Range (HP): -10 / 120 °C (30 barg)

INGERSOLL RAND D240EC-A

- Machine Type: Compressed Air Refrigeration Dryer

- Electrical Power: 0,84 kW

- Power Supply: 230V / 1 Ph / 50 Hz

- Coolant / Refrigerant: R407C (0,40 Kg)

- CO2 Equivalent: 0,710 t

- Ambient Temperature Range (TS): +2 / +50 °C

- Compressed Air Operating Temperature Range (TS): +5 / +60 °C

- Compressed Air Maximum Operating Pressure (PS): 16 barg

- Low Pressure Range (LP): -15 / 52 °C (20 barg)

- High Pressure Range (HP): -10 / 120 °C (30 barg)

STIA DRUCKBEHÄLTER 2000L

- Machine Type: Vertical Compressed Air Storage Vessel / Receiver Tank

- Volume: 2000 Litres

- Maximum Allowable Pressure (PS): 10 bar

- Test Pressure (PT): 14.3 bar

- Minimum / Maximum Allowable Temperature (TS): 0 / 50 °C

W+Z ROHRSYSTEM-TECHNIK DTS-40-HPI

- Machine Type: High-Temperature Pressure Vessel / Buffer Tank

- Maximum Allowable Pressure (PS): 16 bar

- Minimum Allowable Pressure (PS): 0 bar

- Minimum Allowable Temperature (TS): -10 °C

- Maximum Allowable Temperature (TS): 250 °C

- Volume (V): 71 L

- Test Pressure (PT): 28.2 bar

W+Z ROHRSYSTEM-TECHNIK DPS-30

- Machine Type: Compressed Air Vessel / Pressure Equalization Tank

- Maximum Allowable Pressure (PS): 16 bar

- Minimum Allowable Pressure (PS): 0 bar

- Minimum Allowable Temperature (TS): -10 °C

- Maximum Allowable Temperature (TS): 60 °C

- Volume (V): 56 L

- Test Pressure (PT): 22.9 bar

W+Z ROHRSYSTEM-TECHNIK DPS-20

- Machine Type: Compressed Air Vessel / Buffer Vessel

- Maximum Allowable Pressure (PS): 16 bar

- Minimum Allowable Pressure (PS): 0 bar

- Minimum Allowable Temperature (TS): -10 °C

- Maximum Allowable Temperature (TS): 60 °C

- Volume (V): 34.5 L

- Test Pressure (PT): 22.9 bar
