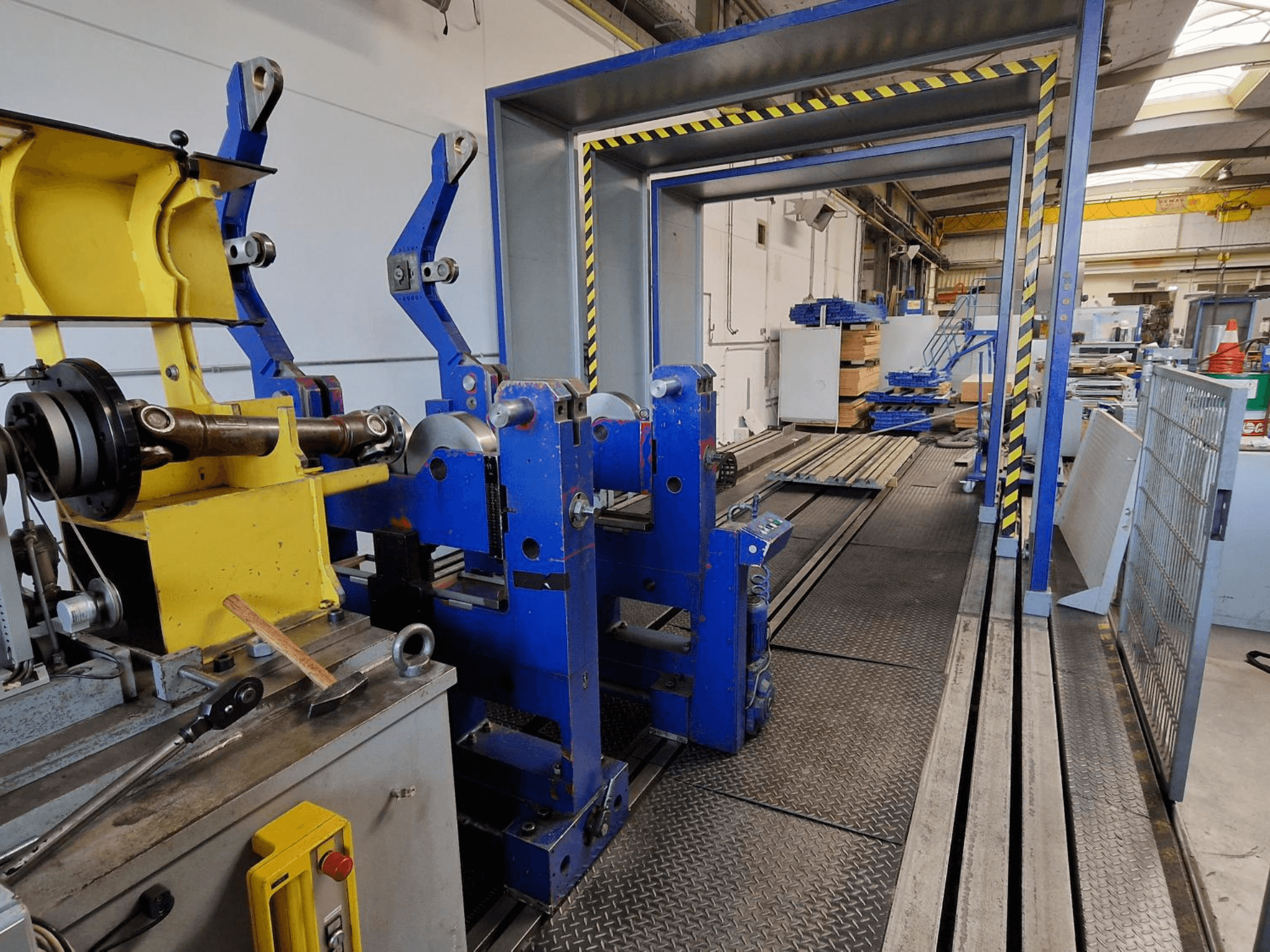

Horizontal universal balancing machine manufactured in 2004. This SCHENCK HM 70U BU features a maximum workpiece weight of 50,000 kg and a maximum workpiece length of 15,000 mm. It includes a control unit with CAB 920 software and a total power requirement of 75 kW. If you are looking to get high-quality balancing capabilities, consider the SCHENCK HM 70U BU machine we have for sale. Contact us for further details.
Overview
- brand: SCHENCK
- year: 2004
- MODEL: HM 70U BU
- application type: Other Machine Tools
- Location: Austria
- machine type: Machine Tool
Technical Information - SCHENCK HM 70U BU
Dimensions
- Machine Weight: 16000 kg
Additional Information
- machine type: Horizontal universal balancing machine
- Control/Measuring Unit: CAB 920 (Software Version: V 5.3.1504)
- Max. Workpiece Weight: 50,000 kg
- Max. Workpiece Length: 15,000 mm
- Max. Workpiece Diameter: 2,800 mm
- Optional Balancing Capacity: Parts with Ø 4,090 mm and max. length of 1,200 mm
- Bearing Center Distance: 5,050 mm
- Drive Types: Cardan shaft drive + Belt drive
- Safety Category: Class B protective shielding/guards
- Total Power Requirement: 75 kW
- Last Technical Inspection: September 2022
- Space Requirements: Approx. 17 x 5 m
- Control Panel Integration: Houses CAB 920 display, analog gauges (ampere meters), emergency stop button, key switch selectors, and a pull-out tray
- Electrical Cabinet Hardware: Equipped with industrial frequency converters (ABB brand) and power distribution switchgear
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
