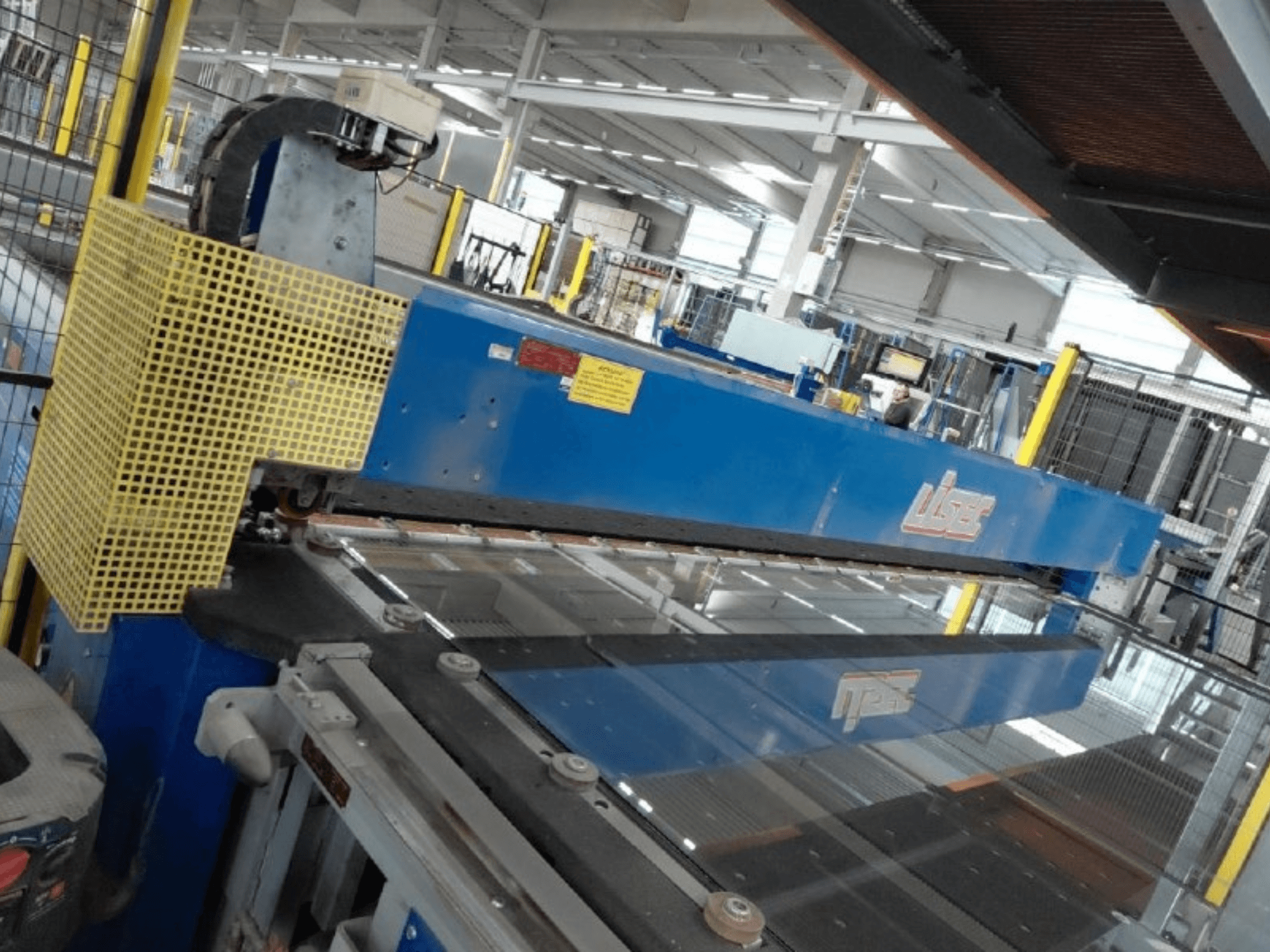

LISEC - Combined VSG & Float Glass Cutting LineDE-OTH-LIS-2009-00001

- Plant Configuration: Combined automatic float and laminated safety glass (VSG) cutting line with breakout, transport, and trimming modules

- System Manufacturer: LISEC Austria GmbH / LISEC Maschinenbau GmbH

- Years of Manufacture (Line Integration): 2009 & 2016 (mixed installation)

- Operational Status: Currently installed and running in active production (turnkey inspection possible)

- Standard Line Voltage: 400 V / 50 Hz (3/N/PE~ 400V, Control: 24V AC/DC)

- Operating Compressed Air: 6.00 – 8.00 bar

- Total Cumulative Installed Weight: > 28,400 kg

MODULE BREAKDOWN & INDIVIDUAL SPECIFICATIONS:

1. VSG (Laminated Safety Glass) Processing Section:

- Pos 01: LISEC PTV-60/30RE (YOM: 2009)

* Type: Laminated glass cutting machine (Verbundglasschneidanlage)

* Weight: 5,640 kg | Electrical: 400 V / 50 Hz

- Pos 02: LISEC VZ Linie 2 (YOM: N/A)

* Type: Assembly unit / line connection section

- Pos 03: LISEC LKT-45/45TS (YOM: 2009)

* Type: Processing / support air-cushion table

* Weight: 3,200 kg | Connected Load: 61.28 kVA | Air: 8.00 bar

- Pos 04: LISEC VB-33 (YOM: 2009)

* Type: Laminated glass line sub-assembly

* Weight: 2,200 kg | Connected Load: 17.00 kVA | Air: 6.00 bar

- Pos 05: LISEC FASV-33 (YOM: 2016)

* Type: Automated protruding PVB film trimmer/remover

* Weight: Not specified | Connected Load: 0.83 kVA | Air: 6.00 bar

- Pos 06: LISEC VB-33 (YOM: 2016)

* Type: Cutting machine for laminated glass

* Weight: 2,200 kg | Connected Load: 18.83 kVA | Air: 6.00 bar | Max Load: 43 kg/m²

- Pos 07: LISEC AL-32/33N (YOM: 2016)

* Type: Glass stop locator and positioning section

* Weight: 1,830 kg | Connected Load: 25.88 kVA | Air: 6.00 bar

- Pos 08: LISEC BTA-20/26 (YOM: 2016)

* Type: Horizontal belt transport conveyor

* Weight: 1,020 kg | Connected Load: 6.08 kVA | Air: 6.00 bar | Max Load: 50 kg/m²

2. Float Glass Processing & Transfer Section:

- Pos 09: LISEC BTA-20/26 (YOM: 2016)

* Type: Horizontal belt transport conveyor

* Weight: 1,020 kg | Connected Load: 6.08 kVA | Air: 6.00 bar

- Pos 10: LISEC BTA-40/26 (YOM: N/A)

* Type: Horizontal transport / support table

* Weight: Not specified | Electrical: Not specified

- Pos 11: LISEC BTA-20/26 (YOM: 2016)

* Type: Horizontal belt transport conveyor

* Weight: 1,020 kg | Connected Load: 9.05 kVA | Air: 6.00 bar

- Pos 12: LISEC BTS-37/33 (YOM: 2016)

* Type: Manual breakout table with integrated breaking bars

* Weight: 1,543 kg | Connected Load: 15.75 kVA | Air: 6.00 bar

- Pos 13: LISEC LKT-10/33 (YOM: 2016)

* Type: Horizontal air-cushion transfer table

* Weight: 250 kg | Connected Load: 4.50 kVA | Air: 6.00 bar | Max Load: 33 kg/m²

- Pos 14: LISEC BTA-40/26 (YOM: 2009)

* Type: Horizontal belt transport conveyor unit

* Weight: 1,154 kg | Connected Load: 2.30 kVA | Air: 8.00 bar | Max Load: 50 kg/m²

- Pos 15: LISEC TBY-26/12 (YOM: 2009)

* Type: Intermediate transport module

* Weight: 255 kg | Connected Load: 0.00 kVA | Air: 6.00 bar

- Pos 16: LISEC RWF-33/25 (YOM: 2009)

* Type: Roller/belt transfer assembly

* Weight: 975 kg | Connected Load: 4.59 kVA | Air: 8.00 bar

- Pos 17: LISEC BTA-30/33 (YOM: 2009)

* Type: Horizontal belt transport table

* Weight: 980 kg | Connected Load: 2.30 kVA | Air: 8.00 bar

- Pos 18: LISEC RBA-25 (YOM: 2009)

* Type: Float line alignment/handling sub-assembly

* Weight: 820 kg | Connected Load: 1.46 kVA | Air: 8.00 bar

- Pos 19: LISEC TBX-33/12 (YOM: 2009)

* Type: Belt transfer/lifter assembly

* Weight: 290 kg | Connected Load: 0.00 kVA | Air: 8.00 bar

- Pos 20: LISEC BTA-60/33 (YOM: 2009)

* Type: Horizontal high-capacity conveyor table

* Weight: 1,560 kg | Connected Load: 18.22 kVA | Air: 0.00 bar

- Pos 21: LISEC ARS-33 (YOM: 2009)

* Type: Multi-directional ball transfer and positioning deck

* Weight: 580 kg | Connected Load: Not specified | Air: 8.00 bar

- Pos 22: LISEC ESL-60/30RS (YOM: 2009)

* Type: Automatic CNC float glass cutting bridge and table

* Weight: 6,380 kg | Connected Load: 14.90 kVA | Air: 8.00 bar | Full Load: 21.50 A
