Elumatec DG 104/02 + E111

Photo Gallery

Elumatec - DG 104/02 + E111RU-SAW-ELU-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

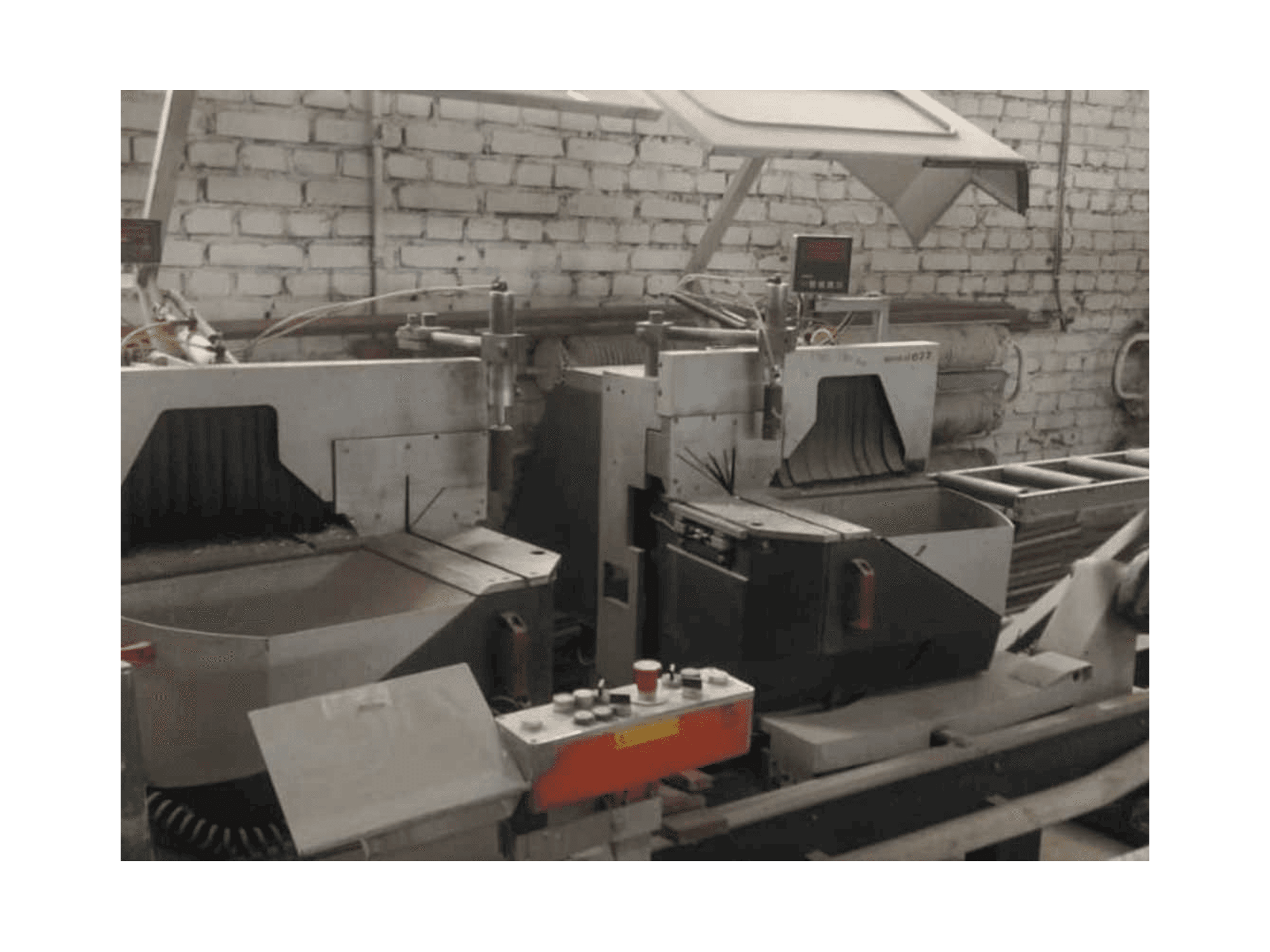

Elumatec DG 104/02 + E111 Sawing Machine

Show in original language

This Elumatec DG 104/02 + E111 Sawing Machine was manufactured in the year 2000 in Germany. It is equipped with a control unit of the same brand. This machine incorporates a rotation speed up to 2800 rpm, a cutting length 6000 mm, and a blade diameter 420 mm.

Overview

brand: Elumatec
year: 2000
MODEL: DG 104/02 + E111
application type: Sawing
Location: Russia
machine type: Circular Metal Saw

Technical Information - Elumatec DG 104/02 + E111

Dimensions

Machine Depth: 1600 mm
Machine Height: 1450 mm
Machine Weight: 1420 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Cutting length: 6000 mm
Blade diameter: 420 mm
Cutting capacity at 90 °: 300 x h = 50 or 250 x h = 100 or 150 x h = 140 mm
Cutting capacity at 45 ° (rotating head): 220 x v = 30 or 160 x v = 100 mm
Cutting capacity at 45 ° (inclined blade): 300 x h = 30 or 250 x h = 70 or 150 x h = 100 mm
Rotation speed: 2800 rpm
Power per motor: 4 kw-three-phase 400 volts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
