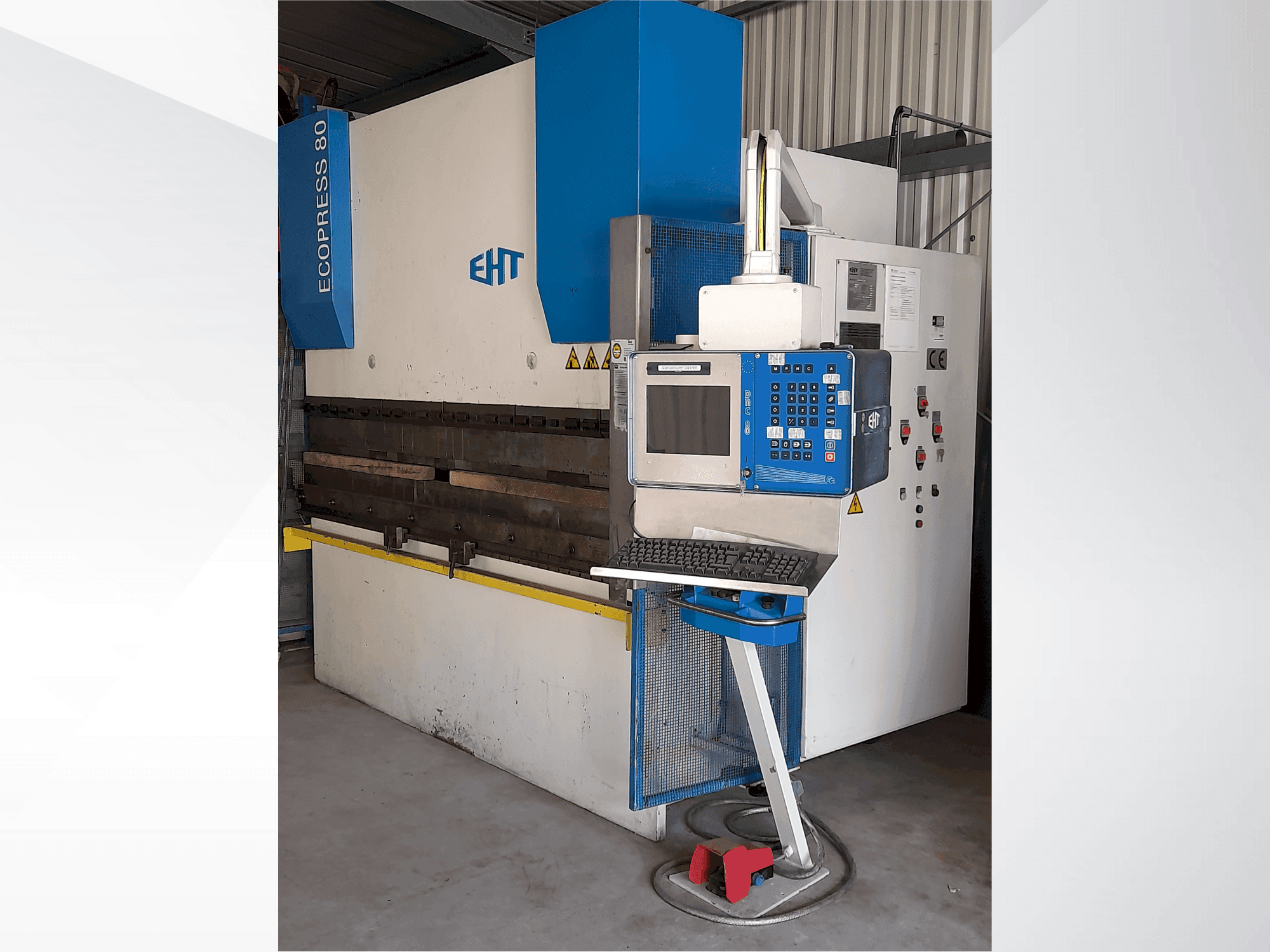

EHT - Ecopress 80DE-BEN-EHT-1997-00003

Additional equipment

• Bending unit must be placed in the wagon manually

Extra Information

Main Machine Data/ 2.2.1 Dimensions/ Overall length: 4300 mm/ Overall width: 3490 mm/ Overall height above floor: 2750 mm/ 2.2.2 Functional Data/ Working length: 2550 mm/ Distance between machine columns: 2050 mm/ Column overhang: 300 mm/ Ram stroke: 240 mm/ Distance between table and ram: min. 320 mm, max. 560 mm/ Maximum press force: 800 kN/ Stroke speeds: Idle speed: 150 mm/s/ Pressing speed: 10 mm/s/ Retraction speed: 140 mm/s/ Machine weight: 7300 kg/ 2.2.3 Safety Data/ Safety distance: min. 220 mm/ Permissible stopping time: 137 ms/ 2.2.4 Hydraulics / Pneumatics/ Pressure in Hydraulic system: max. 280 bar/ Pneumatic system pressure: 4.5-6 bar/ Oil tank capacity: 200 l/ 2.2.5 Connection values/ Operating voltage: 3x400V/ Rated current of the main fuse: 50 A/ Connected load: 10 kW/ Main motor drive power: 7.5 kW/ 2.3 Rear stop/ 2.3.1 Stop beam adjustment/ X-axis stop range (from bending line): 5-1000 mm/ X-axis adjustment speed: 250 mm/s/ X-axis drive power: 0.5 kW
