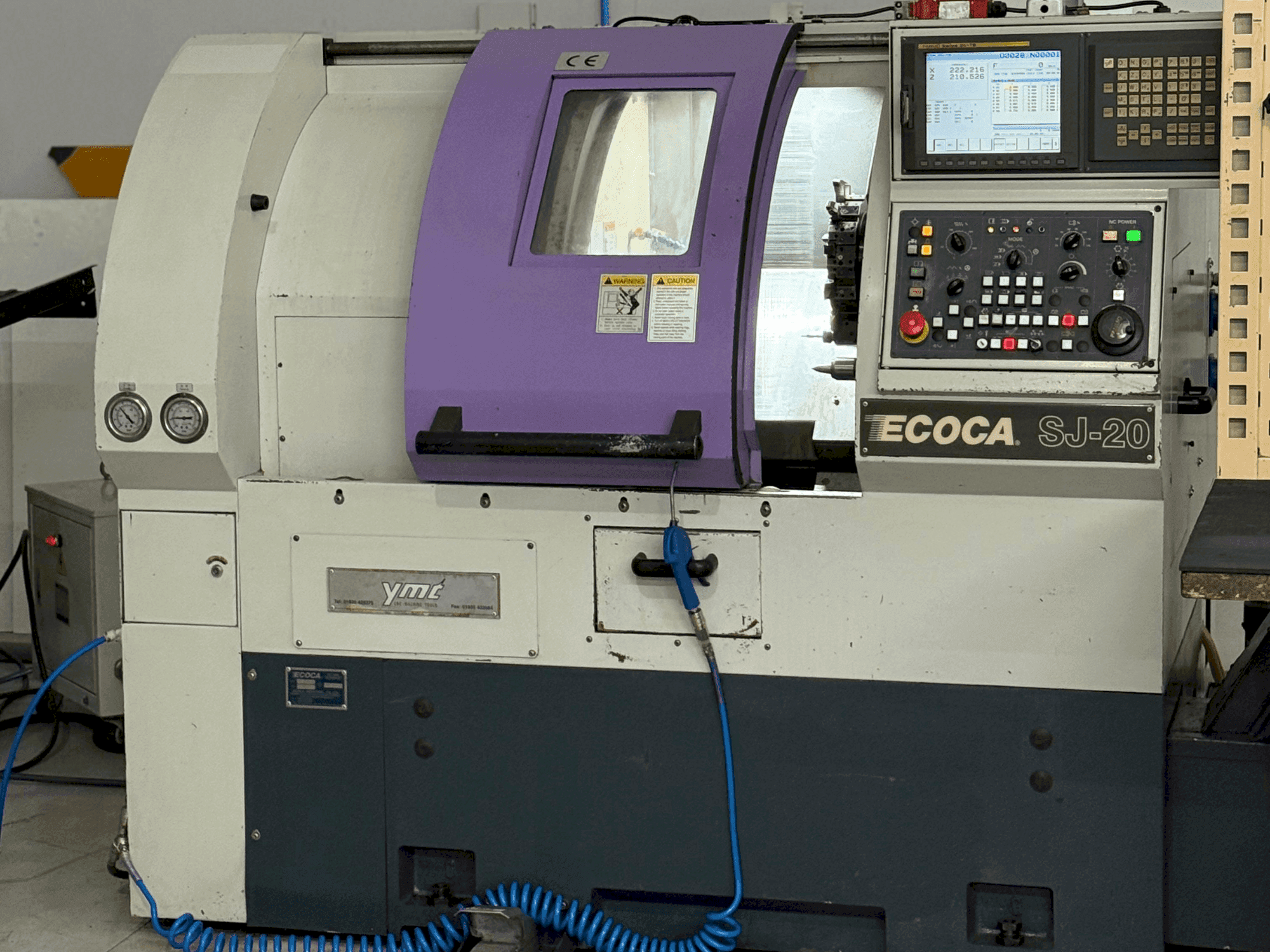

Front view of ECOCA SJ-20 machine
Front view of ECOCA SJ-20 machine

ECOCA - SJ-20PT-TUR-ECO-2004-00001

Rs. 3,049,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ECOCA SJ-20 was manufactured in 2004. A robust horizontal turning machine featuring a swing over bed of approximately 520 mm and a max turning length of 500 mm. It includes a spindle speed of up to 4,000 rpm and a powerful 7.5 kW spindle motor. Ideal for precision turning, it also offers an 8 or 12-station turret. Footprint approximately 2.5 m x 1.6 m. Contact us for more information about this machine.

Overview

  • brand: ECOCA
  • year: 2004
  • MODEL: SJ-20
  • application type: Turning
  • Location: Portugal
  • machine type: Horizontal Turning Machine

Technical Information - ECOCA SJ-20

General Data

  • Measurements width: 1600 mm
  • Measurements depth: 2500 m MM
  • Machine weight: 3000 – 3500 kg

Main drive

  • Spindle speed range: 4000 1/MIN
  • Spindle motor power: 7.5 kW
  • Spindle bore: 52 mm
  • Number of axis: 2

Workpiece

  • Workpiece drm over bed: 520 mm
  • Workpiece drm over support: 310 mm

Turret

  • Number of turrets: 1

Tools

  • Number of stations: 8 or 12

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tailstock: programmable or manual
      • - Guideways: box or linear ways depending on configuration
      • - Max turning diameter: approx. 300 mm
      • - Max turning length: approx. 500 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
