- Droop & Rein FS 130 SKE Vertical Machining center

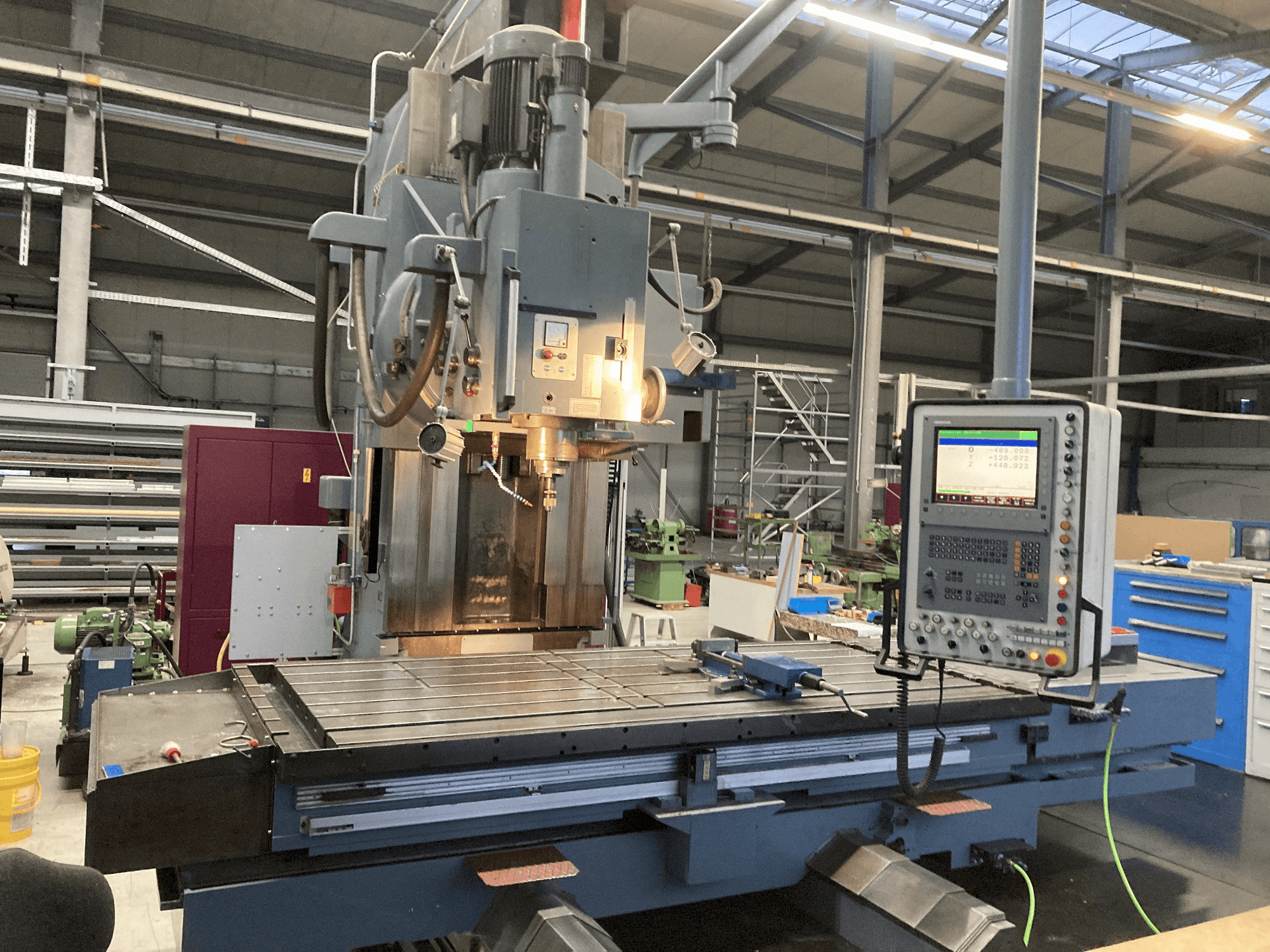

This Droop & Rein FS 130 SKE Vertical Machining center was manufactured in the year 1978. It is equipped with a HEIDENHAIN iTNC 426 control unit and has 3 axis. The machine has a spindle speed of 31.5 – 1600 rpm. The machine was completely overhauled in 2022. See information about overhauling details in PDF (DE) attached. Contact us at any time for further questions.
Overview
- brand: Droop & Rein
- year: 1978
- MODEL: FS 130 SKE
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Heidenhain
Technical Information - Droop & Rein FS 130 SKE
General Data
- Machine weight: 30000 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 426
Main drive
- Spindle speed range: 31.5 – 1600 1/MIN
- Spindle motor power: 30 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 2300 mm
- Y-AXIS Movement: 1200 mm
- Z-AXIS Movement: 950 mm
Table
- Outer length: 3000 mm
- Outer width: 1200 mm
- Table load: 10000 kg
Tools
- Type of tool holder: SK50
Additional Information
- Technical Machine Benefits:
- - Milling spindle diameter 130 mm
- - Axial displacement of the milling spindle: 200 mm
- - Tool holder – automatic
- - Pivoting of the milling spindle head: +/- 45°
- - Maximum distance to table milling spindle head: 1200 mm
- - Clamping table with model table: 4200 x 1200 mm (also ideal as a tool storage area)
- - Feed and rapid traverse: 0 to 4000 mm/min
- - Pedestal
- - 2 new workbenches
- - Clamping tools: screws, clamping claws
- Qualitative Machine Benefits:
- - Sanded documents
- - Approx. 130 tool holders in various designs
- - Approx. 10 different knife heads
- - Drilling tool sets
- - Countersink tool sets
- - Various sk-50 long milling cutters
- - Various measuring mandrels and zero point recording tools
- - Various boring tools
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
