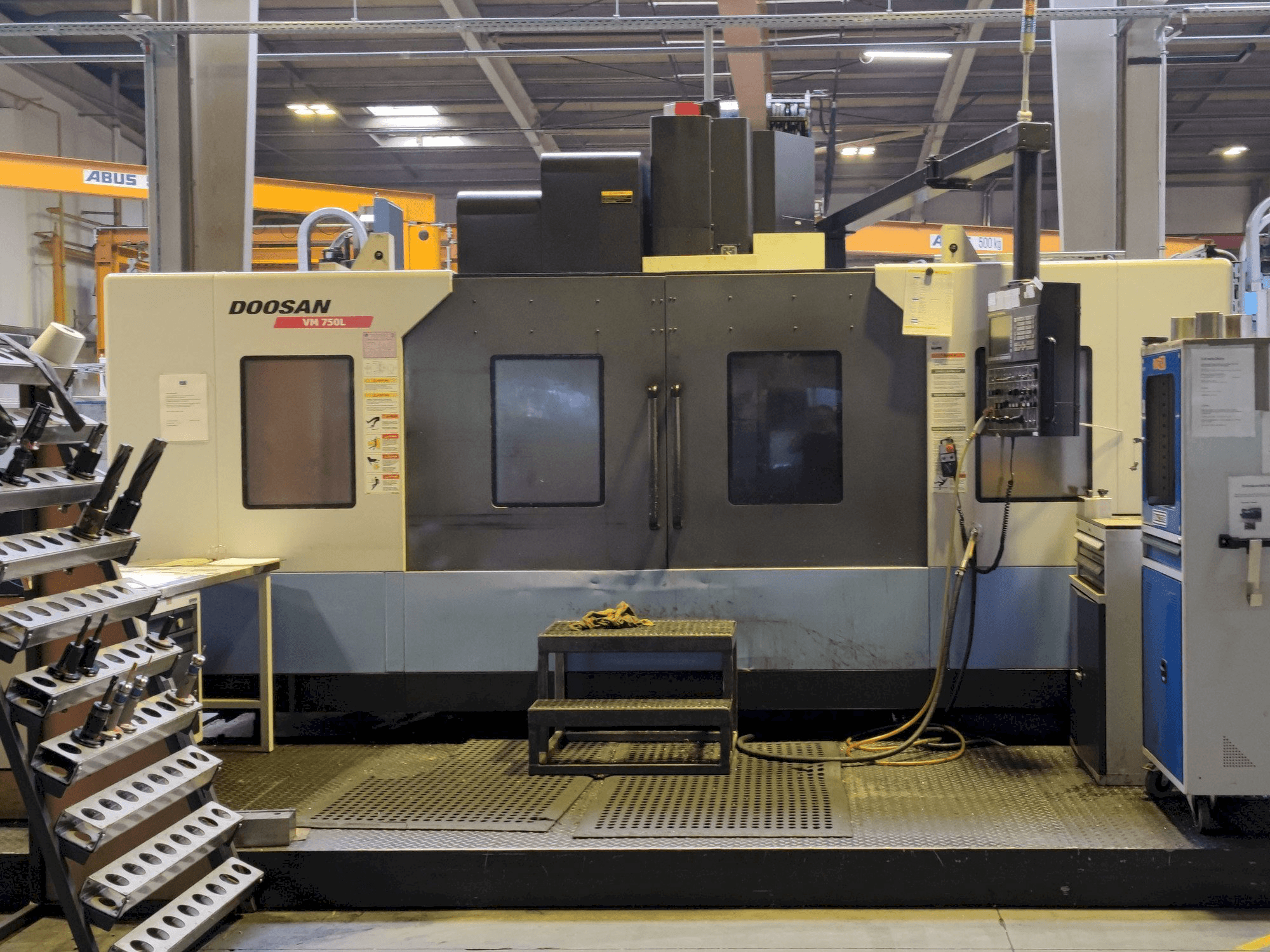

DOOSAN VM 750L

Photo Gallery

DOOSAN - VM 750LDE-MIL-DOO-2012-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan VM 750L Vertical Machining Center

Show in original language

This Doosan VM 750L Vertical Machining Center was manufactured in Korea in 2012. This 3-axis machine counts with a FANUC Series 31-iA control unit. It incorporates a spindle speed range of 30 - 6000 and a torque max of 562 nm. This machine includes its manual books.

Overview

brand: DOOSAN
year: 2012
MODEL: VM 750L
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VM 750L

General Data

Measurements width: 5190 mm
Measurements depth: 5075 mm
Measurements height: 3545 mm
Machine weight: 15100 kg

Control Unit

Model: 31-iA
Brand: FANUC

Main drive

Spindle speed range: 30 - 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1900 mm
Outer width: 800 mm
Table load: 3500 kg

Tools

Max weight: 15 kg
Max tool diameter: 125 mm
Max tool length: 350 mm

Media

Pump drive power: 15 / 18,5 kW
Power consumption: 1,5 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance table - spindle nose 200mm - 1000mm
- - Ball screw diameter x-axis 50mm x 12mm
- - Ball screw diameter y-,z-axis 50mm x 10mm
- - Feed motor x-,y-axis 7 kw
- - Feed motor z-axis with brake 7 kw
- - Rapid traverse x, y, z axis 20 / 20 / 20 m/min
- - Feed x, y, z axis 1 - 10000 mm/min
- - Guided tours: hardened and ground flat guides in all axes
- - Torque max. 562 nm
- - Spindle cone a 50
Qualitative Machine Benefits:
- - Number of magazine spaces 30 stk
- - Max. Tool diameter with free secondary stations 230 mm
- - Container capacity 480 l
- - Delivery rate 30 l/m
- - Delivery pressure 20 bar
- - Compressed air connection 6 bar
- - Connected load 60 kva
- - Voltage (+/-10%) 3 x 400 v
- - Frequency 50 hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
