DOOSAN - Puma TT1800SYCZ-MIL-DOO-2008-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DOOSAN Puma TT1800SY For Sale | gindumac.com

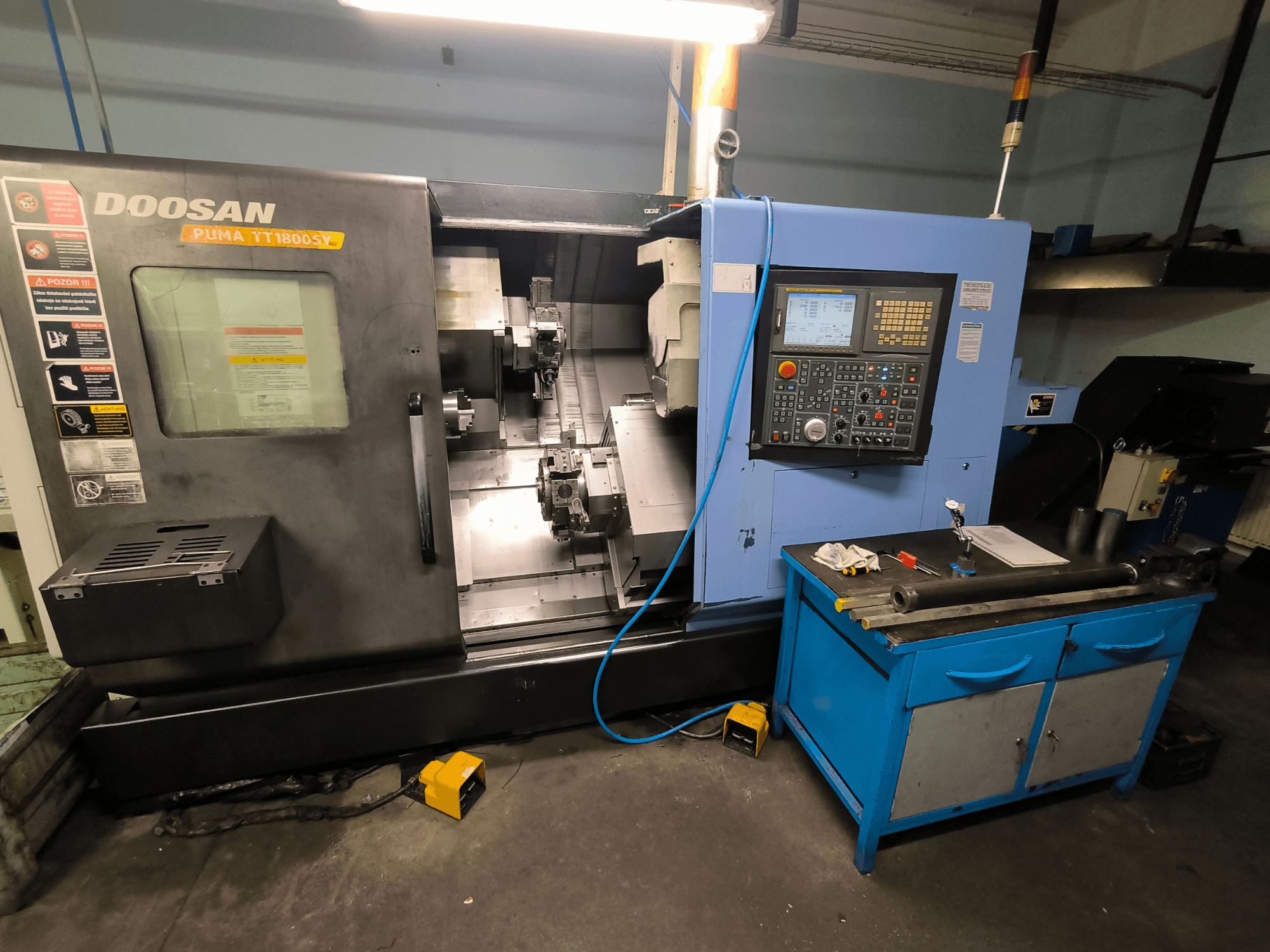

This 6-axis DOOSAN Puma TT1800SY was manufactured in 2008. It features a spindle rpm of 5000, a maximum distance between spindle noses of 980 mm, and a bar capacity of 65 mm. It includes a 210 mm diameter 3-jaw chuck on the main spindle and a 170 mm diameter 3-jaw chuck on the second spindle. If you are looking to get high-quality milling capabilities, consider the DOOSAN Puma TT1800SY machine we have for sale. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2008
- MODEL: Puma TT1800SY
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN Puma TT1800SY
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-TB
Movement
- Number of Axes: 6
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Milling rpm: 5000 rpm
Max. distance between spindle noses: 980 mm
Max. swing: 230 mm
Bar capacity: 65 mm
Turret positions: 12 + 12
Main spindle chuck: 3-jaw, 210 mm diameter
Second spindle chuck: 3-jaw, 170 mm diameter
Spindle through hole: 76 mm diameter
X1 axis travel: 165 mm
X2 axis travel: 190 mm
Z1 axis travel: 700 mm
Z2 axis travel: 720 mm
Y axis travel: 100 mm (±50 mm)
B axis travel: 770 mm
Additional equipment
Barfeed magazine: CNC Technology SS 2200
Tool holders included
