DOOSAN Puma IV30M

DOOSAN - Puma IV30MCZ-TUR-DOO-2007-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma IV30M Lathe

Show in original language

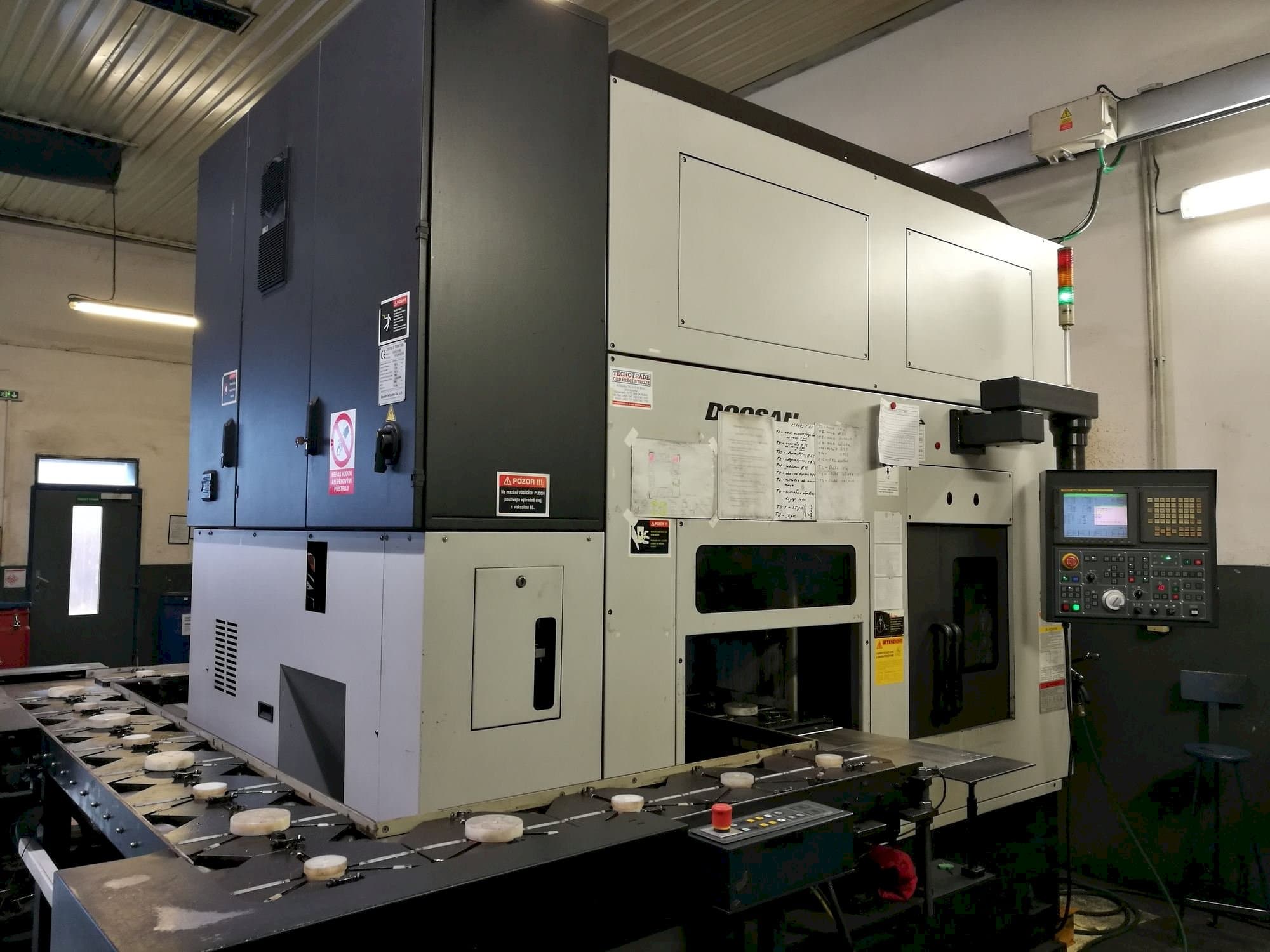

This Doosan IV30M Lathe Machine was manufactured in 2007 in South Korea. This 4 controlled axes machine has 24321 working hours. The machine can work with a spindle speed up to 3300 rpm. It is in very good condition and has low hours.

Overview

brand: DOOSAN
year: 2007
MODEL: Puma IV30M
production hours: 24321
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre

Technical Information - DOOSAN Puma IV30M

Dimensions

Machine Depth: 2024 mm
Machine Height: 2960 mm
Machine Weight: 9000 kg

Movement

X-axis Travel: 1250 mm
Z-axis Travel: 360 mm

Technical Specification

Spindle Speed: 3300 RPM
Tool Stations: 12

Additional Information

Additional equipment

Set of tool holders

Machine Benefits

Qualitative Machine Benefits

Very good condition, low hours

Technical Machine Benefits

Max. Swing diameter: 400 mm
Chuck diameter: 304 mm
Max. Turning diameter 320 mm
Max. Turning length 200 mm
Spindle nose a2#8
C axis 360/0. 001 degree
Milling spindle speed 40-4000 rpm
Main spindle motor 22/15 kw
Automatic feeding line system
Turret 12 positions (all driven)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
