DOOSAN - Puma 400LBGB-TUR-DOO-2015-00001

Name: DOOSAN Puma 400LB
Brand: DOOSAN
SKU: GB-TUR-DOO-2015-00001
Price: 8902000 INR
Availability: InStock

Rs. 8,902,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma 400LB For Sale | gindumac.com

Show in original language

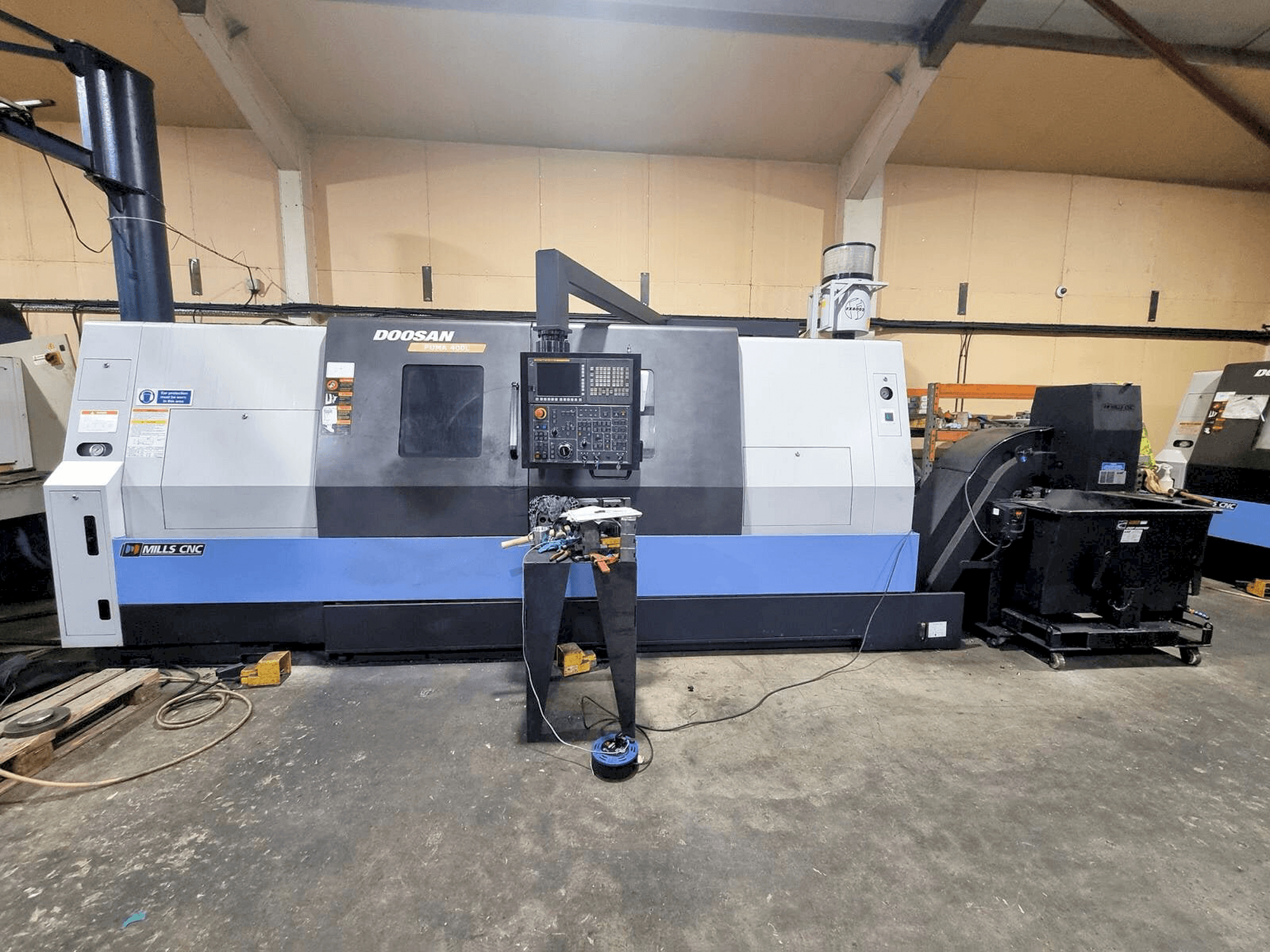

This DOOSAN Puma 400LB was manufactured in 2015. A robust horizontal turning machine featuring a FANUC 32i control, it has a chuck size of 381mm and a bar capacity of 117mm. The machine offers a maximum cutting diameter of 550mm and a length of 2093mm. With a 10 station turret and rapid feedrates of X x Z: 16 x 18m/minute, it's ideal for efficient machining. Contact us for further details regarding this machine.

Overview

brand: DOOSAN
year: 2015
MODEL: Puma 400LB
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN Puma 400LB

General Data

Measurements width: 2440 mm
Measurements depth: 6642 mm
Measurements height: 2060 mm
Machine weight: 11000 kg

Control Unit

Brand: FANUC
Model: 32i control

Main drive

Spindle speed range: 2000 rpm 1/MIN
Spindle motor power: 26 kW (Gearbox)

Additional equipment

- Turret Positions: 10 station

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feedrates x x z: 16 x 18 m/minute
- - Maximum cutting diameter: 550 mm / maximum cutting length: 2093 mm
- - Bar capacity: 117 mm
- - Swing: 700 mm / swing over carriage: 590 mm
- - Chuck size: 381 mm
- - Tailstock taper: mt#6
- - Tool size: 32 x 32 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
