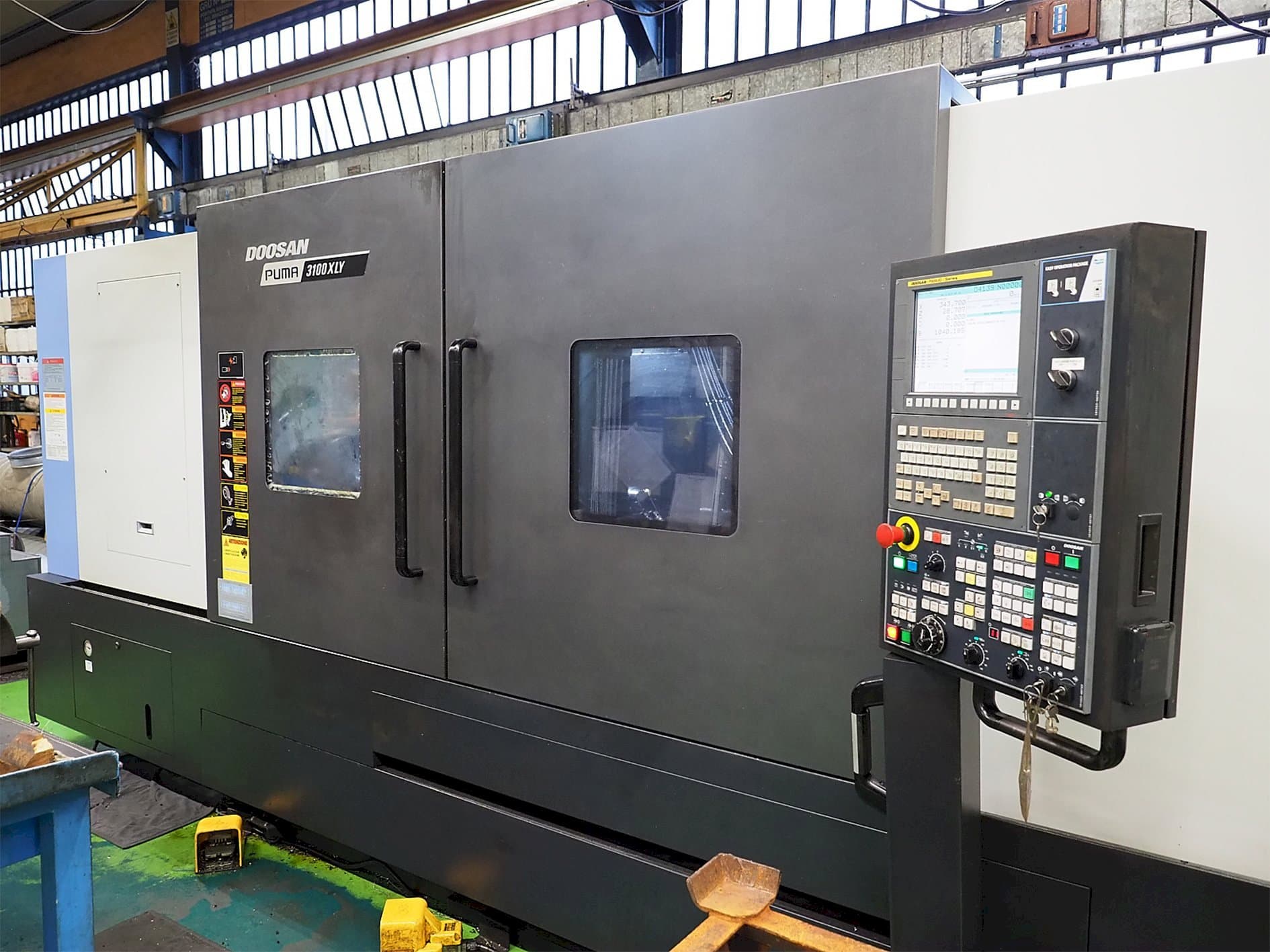

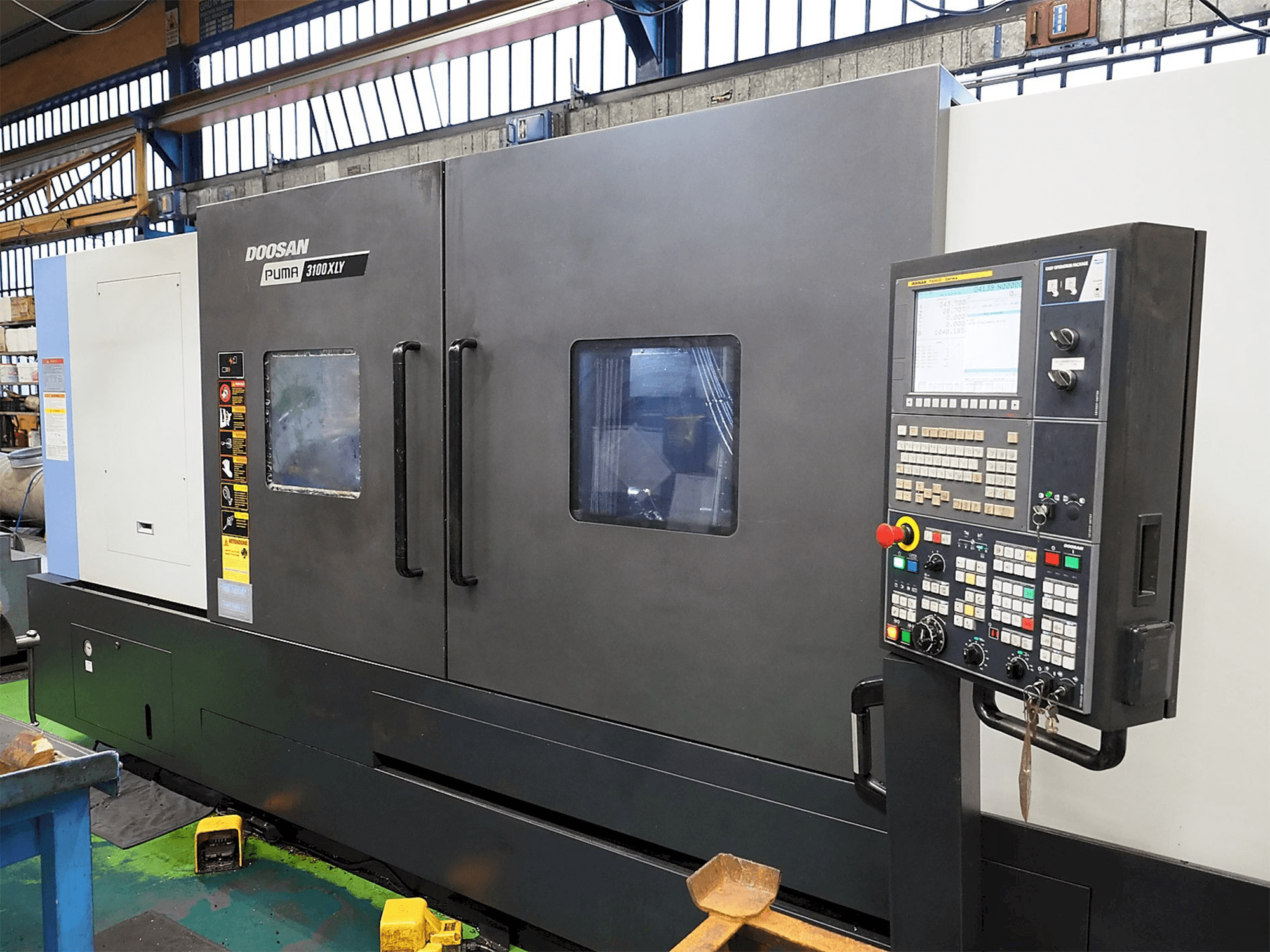

Front view of Doosan Puma 3100XLY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 3100XLY

Photo Gallery

DOOSAN - Puma 3100XLYIT-TUR-DOO-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma 3100XLY Lathe

Show in original language

This Doosan 3100XLY Lathe was built in 2015 in Korea. It has been working for 3954 hours of which 3061 are cutting hours. It is equipped with a Fanuc i-Series control unit. This 3 axis machine operates with a spindle speed up to 3000 rpm. The lunette is a full-effect axis, also programmable to track.

Overview

brand: DOOSAN
year: 2015
MODEL: Puma 3100XLY
production hours: 3954
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma 3100XLY

Control Unit

Control Brand: FANUC
Control Model: i-Series

Dimensions

Machine Depth: 5615 mm
Machine Height: 2315 mm
Machine Weight: 10500 kg

Movement

Number of Axes: 3

Technical Specification

Spindle Power: 25 kW
Spindle Speed: 3000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Capacity rotating diameter over bed: 850 mm
Max. Turning diameter: 420 mm
Max. Turning length: 2125 mm
Max. Turning diameter from bar: 102 mm
Y-axis stroke: 130 mm (± 65)
Spindle attachment asa a2-11
Turret motorized power kw / 30min. 5. 5
The lunete is a full-effect axis, also programmable to track

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
