Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DOOSAN - PUMA 3100IT-TUR-DOO-2018-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DOOSAN PUMA 3100 For Sale | gindumac.com

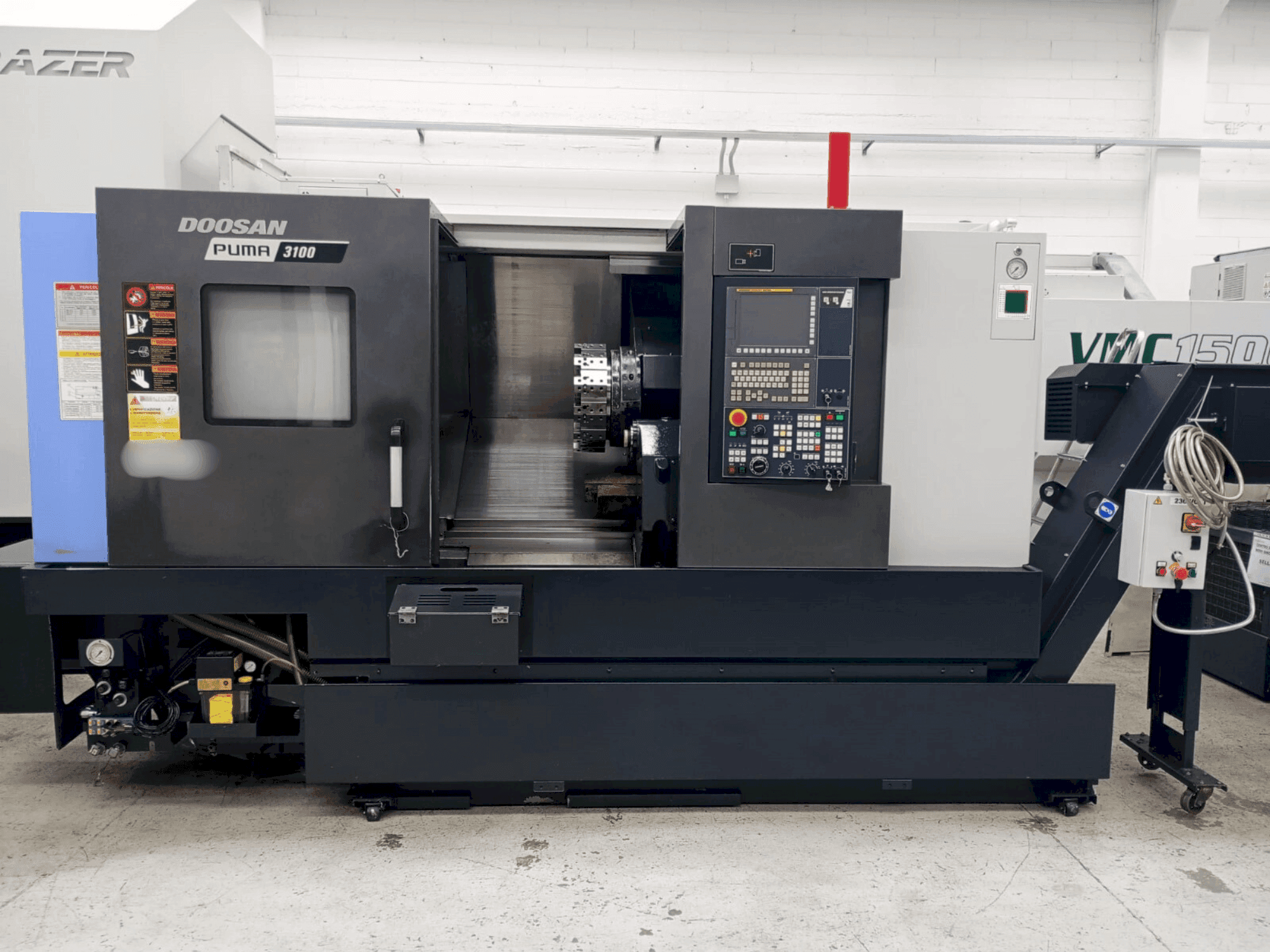

This DOOSAN PUMA 3100 horizontal turning machine was manufactured in 2018. It features a spindle speed of 2800 rpm and a spindle hole diameter of 115 mm. The machine offers a maximum turning diameter of 525 mm and a turning length of 760 mm. It includes a 10-station turret and a main spindle motor of 22 kW. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA 3100 machine we have for sale. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: PUMA 3100
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN PUMA 3100
Control Unit
- Control Brand: FANUC
- Control Model: Serie 0i TF
Movement
- Number of Axes: 2
- X-axis Travel: 293 mm
- Z-axis Travel: 830 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 2800 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Spindle hole diameter: 115 mm
- Coolant pump motor power: 0. 4 kw
- Electric power supply: 41. 6 kva
Technical Machine Benefits
- Recommended turning diameter: 305 mm
- Max. Turning diameter: 525 mm
- Max. Turning length: 760 mm
- Bar diameter: 102 mm
- External tool size od: 25 mm
- Boring bar diameter: 50 mm
- Indexing time: 0. 15 s
- Quilt diameter: 100 mm
- Quilt hole taper (live): mt#5
- Quilt stroke: 100 mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
