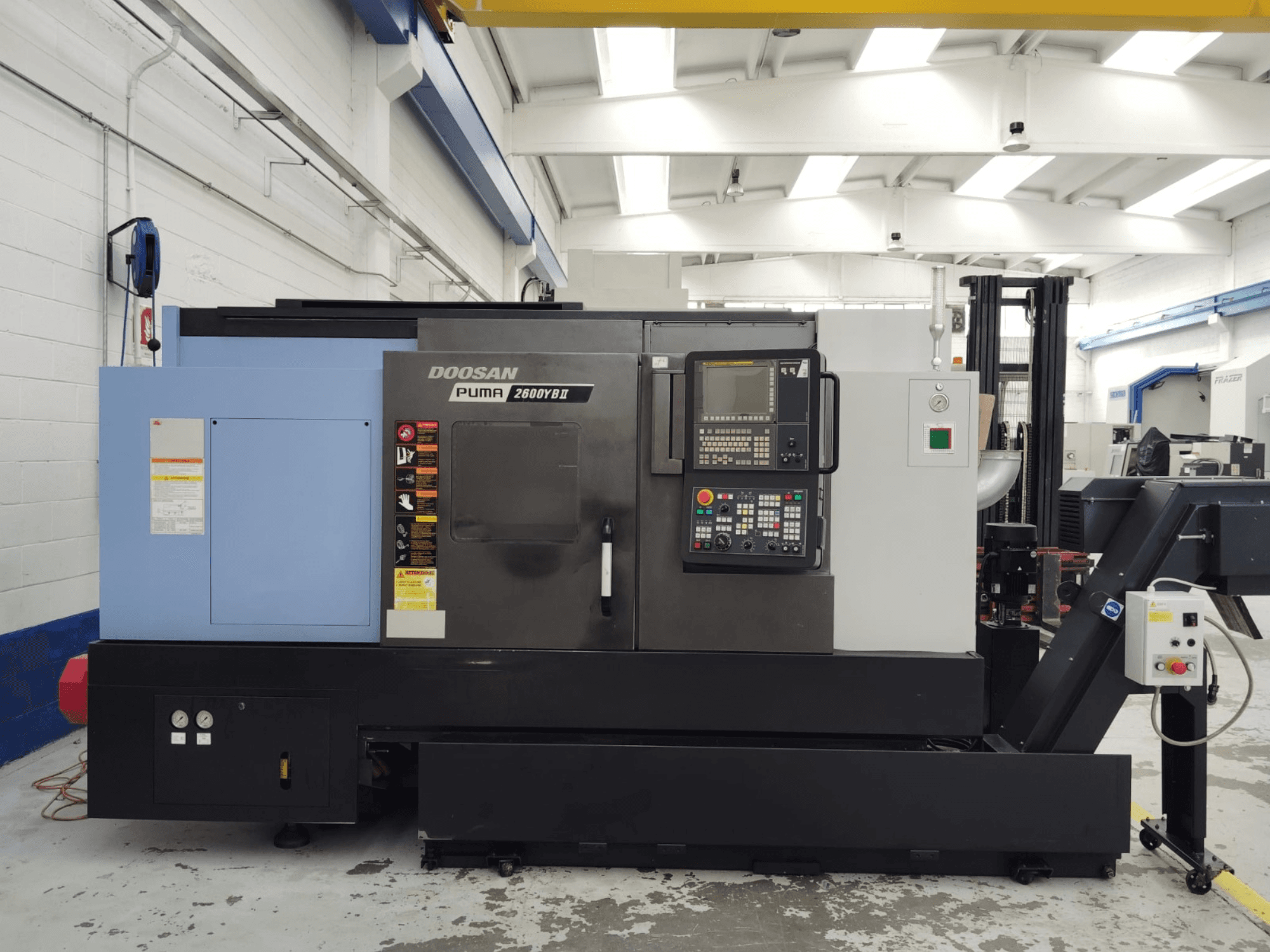

This 4-axis DOOSAN Puma 2600YB II was manufactured in 2019. It features a maximum turning length of 725 mm and a swing over bed of 780 mm. The machine is equipped with a FANUC i Series controller and includes 12 turret stations for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600YB II machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2019
- MODEL: Puma 2600YB II
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN Puma 2600YB II
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Height: 2163 mm
- Machine Length: 3873 mm
- Machine Width: 1945 mm
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 105 mm
- Z-axis Travel: 830 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Speed: 2800 RPM
Additional Information
Working hours: 4436 h
Parts count: 305
Swing over bed: 780 mm
Swing over carriage: 630 mm
Max turning length: 725 mm
Bar capacity: 102 mm
Spindle nose: ASA A2#11
C-axis indexing: 0.001 degrees
Turret stations: 12
Driven tool speed: 5,000 rpm
Rapid traverse (X/Z): 30 m/min
Tailstock taper: MT#5
Additional equipment
Chip conveyor
Tool setter
Manuals
CE Declaration
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
