➤ Used DOOSAN PUMA 300 C For Sale | gindumac.com

Show in original language

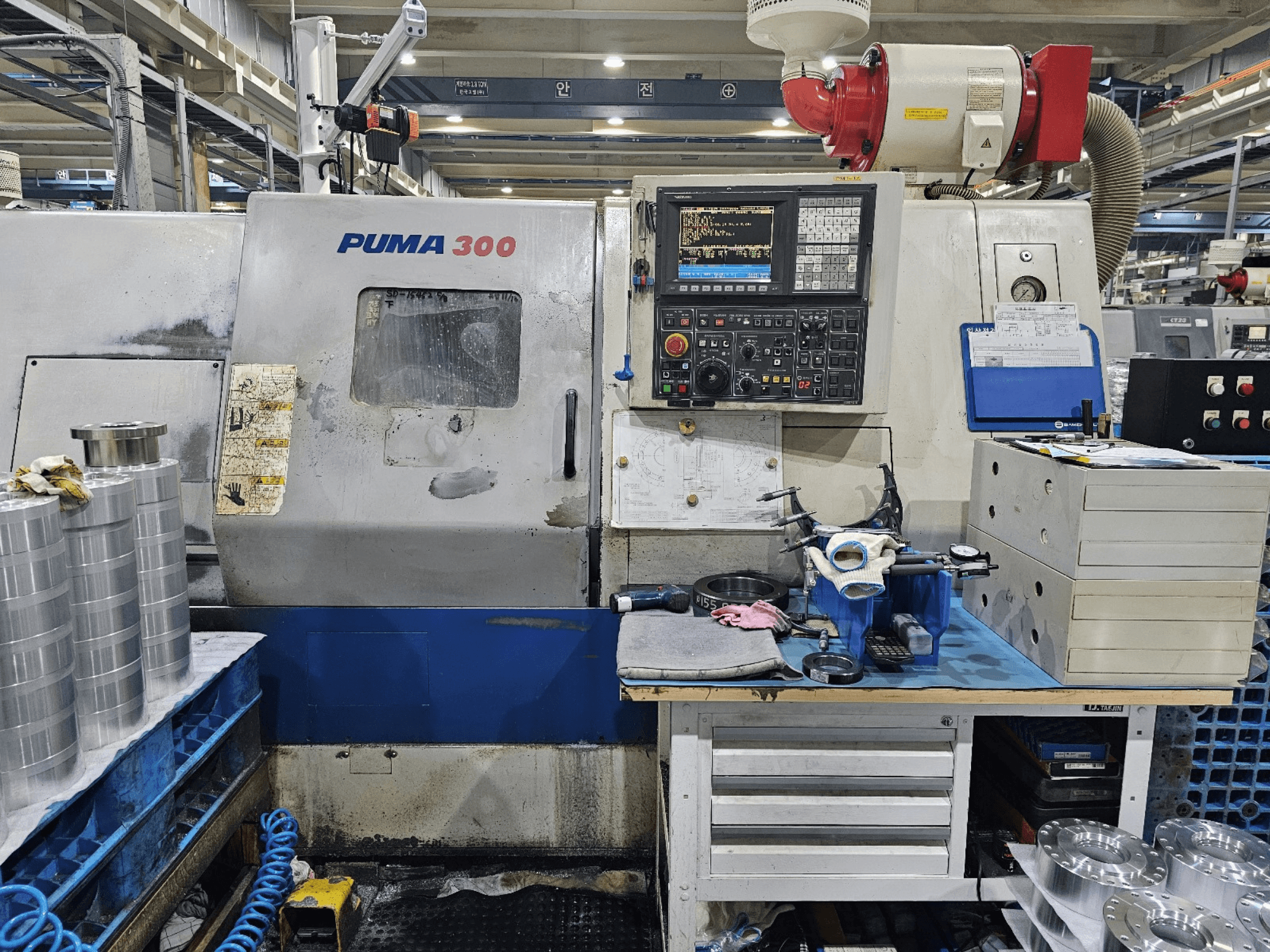

This DOOSAN PUMA 300 C horizontal turning machine was manufactured in 2006. It features a 12-inch chuck, a maximum turning diameter of 350 mm, and a maximum turning length of 760 mm. The spindle supports a speed of up to 3,500 rpm with a bar capacity of 76 mm. Ideal for precision turning, it also includes a servo indexing tool post with 12 tools. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2006
MODEL: PUMA 300 C
application type: Turning
Location: South Korea
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN PUMA 300 C

General Data

Measurements width: 1850 mm
Measurements depth: 3130 mm
Machine weight: 5600 kh KG

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 18.5 / 22 kW
Number of axis: 2

Movement

X-AXIS Movement: 260 mm
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 790 mm
Z-AXIS Rapid traverse: 24 m/min

Workpiece

Workpiece drm over bed: 570 mm
Workpiece drm over support: 450 mm

Tools

Number of index: 12

Additional equipment

- 4 units available

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Recommended turning diameter: 250 mm
- - Max. Turning diameter: 350 mm // max. Turning length: 760 mm
- - Bar working diameter: 76 mm
- - Tool size (od/id): 25 mm / 50 mm
- - Indexing type: servo
- - Quill diameter: 100 mm
- - Quill travel: 100 mm
- - Quill taper: mt#4
- - Electric power supply (kva): 30. 2
- - Maintenance done by doosan

Extra information

- 12 Inch Chuck Spindle Nose: A2-8 Spindle Bearing Diameter (Front): 120 mm Spindle Bore Diameter: 102 mm Spindle Bar Capacity: 76 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
