➤ Used DOOSAN LYNX 2100LYA For Sale | gindumac.com

Show in original language

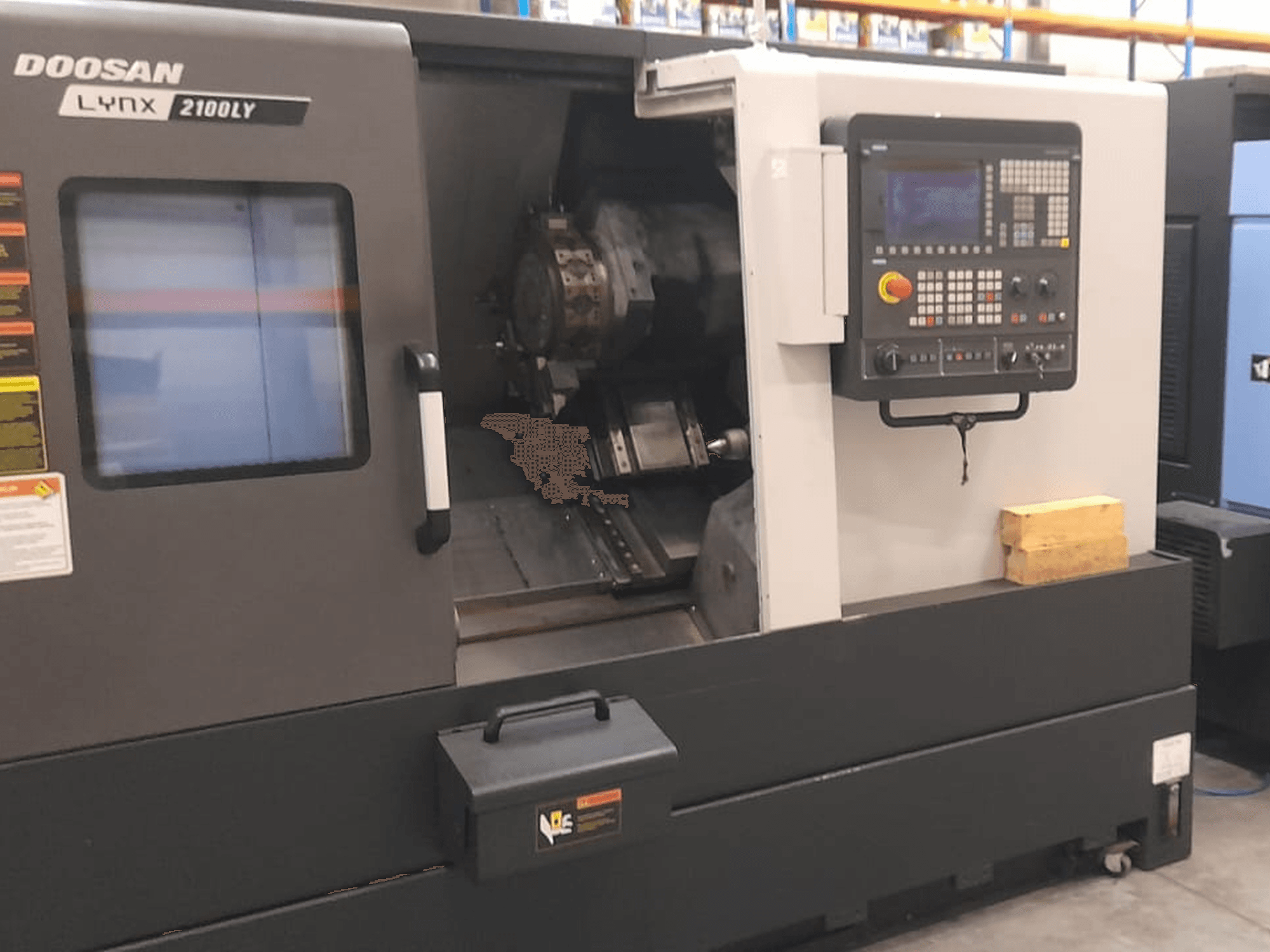

This 3-axis DOOSAN LYNX 2100LYA was manufactured in 2020, featuring a chuck size of 6 inches, a maximum turning diameter of 300 mm, and a length of 510 mm. It boasts rapid traverses of 30 m/min on the X-axis and 36 m/min on the Z-axis, with a high spindle speed up to 6000 rpm. Consider the opportunity to buy this DOOSAN LYNX 2100LYA horizontal turning machine. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2020
MODEL: LYNX 2100LYA
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DOOSAN LYNX 2100LYA

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 828D

Dimensions

Machine Height: 1921 mm
Machine Length: 2880 mm
Machine Weight: 3850 kg

Movement

Number of Axes: 3
X-axis Travel: 205 mm
Y-axis Travel: 105 mm
Z-axis Travel: 560 mm

Technical Specification

Driven Tools: Yes
Spindle Power: 15 kW
Spindle Speed: 6000 RPM

Additional Information

Chuck size: 6 inch
Maximum turning diameter: 300 mm
Maximum turning length: 510 mm

Travels

X-axis rapid traverse: 30 m/min
Z-axis rapid traverse: 36 m/min

Main Spindle

Maximum spindle power: 15 kW
Maximum spindle torque: 127 N·m

Turret

Number of tool stations: 12
Rotary tool speed: 6000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
