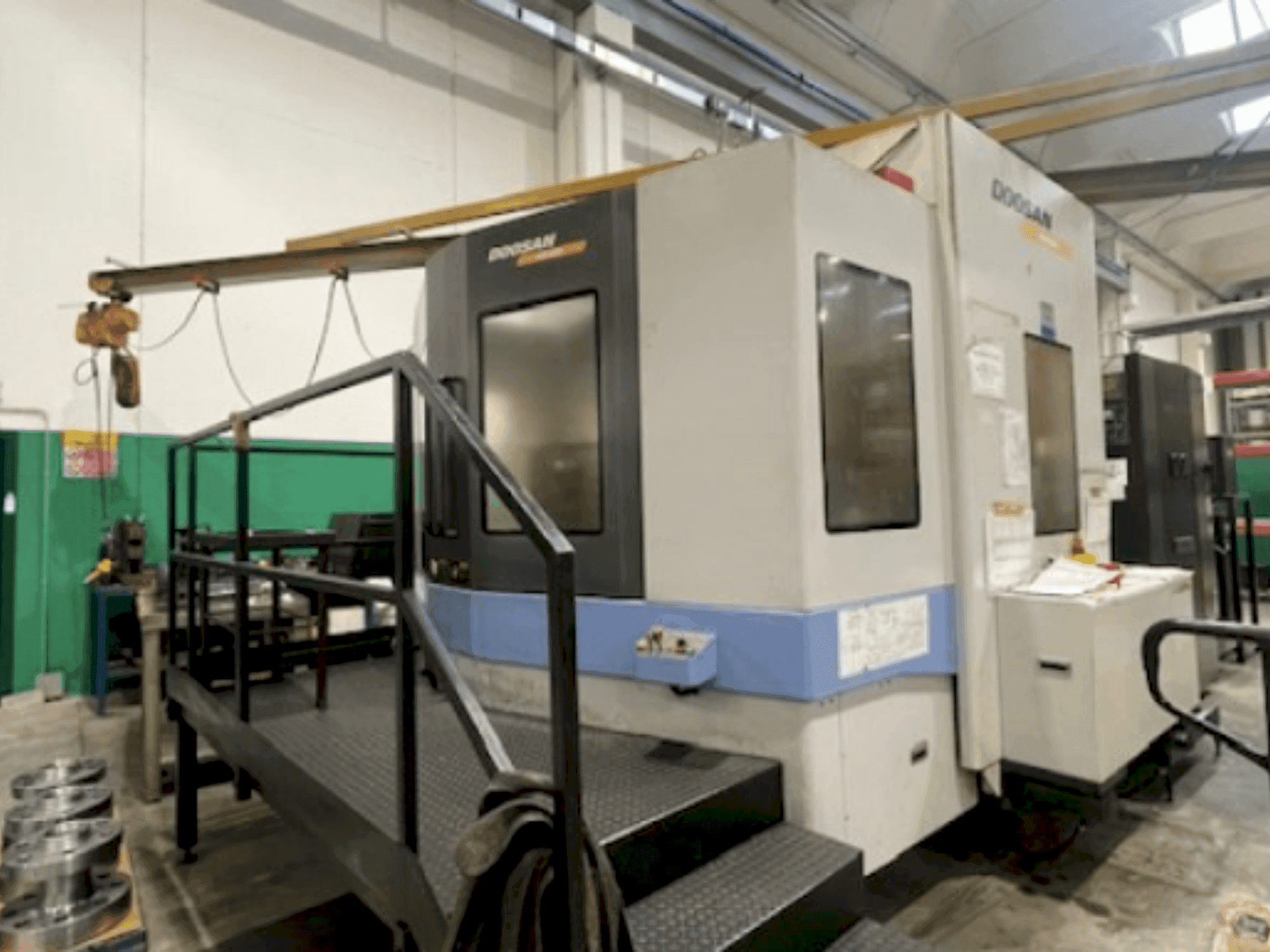

Front view of DOOSAN HM 800 (2008)  machine

DOOSAN HM 800

DOOSAN - HM 800

2008

Rs. 11,304,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-Axis DOOSAN HM 800, a 2008 horizontal machining centre, offers high performance with the CNC FANUC 18i–MB control system. It has extensive strokes: 1250 mm on the X-axis and 1000 mm on the Y and Z axes, with rapid movements of 24 m/min on all axes. The dual pallet system, each 800 x 800 mm, has a 1600 kg load capacity. Its spindle reaches 6000 rpm with a 22/26 kW motor output. A 90-position tool chain and high-pressure coolant system ensure optimal cutting. Contact us for more details.

Overview

  • brand: DOOSAN
  • year: 2008
  • MODEL: HM 800
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (horizontal)
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: IT-MIL-DOO-2008-00003

Technical Information

General Data

  • Machine weight: 20000 kg

Control Unit

  • Brand: Fanuc
  • Model: 18i–MB

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 rpm 1/MIN
  • Spindle motor power: 22/26 Kw
  • Tool taper: ISO 50 Din 69871
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1250 mm
  • X-AXIS Rapid traverse: 24 m/min
  • Y-AXIS Movement: 1000 mm
  • Y-AXIS Rapid traverse: 24 m/min
  • Z-AXIS Movement: 1000 mm
  • Z-AXIS Rapid traverse: 24 m/min

Tools

  • Number of stations: 90

Media

  • Chip conveyor: Yes

    Additional equipment

    • - 2 Pallets (dimensions 800 x 800 mm, indexing 1°, weight allowed on the pallet: 1600 kg)
    • - Remote electronic handwheel

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High-speed spindle (6000 rpm) with significant motor power (22/26 kw) supports heavy-duty machining.
        • - Rapid movement of 24 m/min on all axes ensures quick positioning and reduced cycle times.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
