DOOSAN - Lynx 2100 A HU-TUR-DOO-2021-00001

Name: DOOSAN Lynx 2100 A
Brand: DOOSAN
SKU: HU-TUR-DOO-2021-00001
Price: 5857189 INR
Availability: InStock

Rs. 5,857,189

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Lynx 2100 A For Sale | gindumac.com

Show in original language

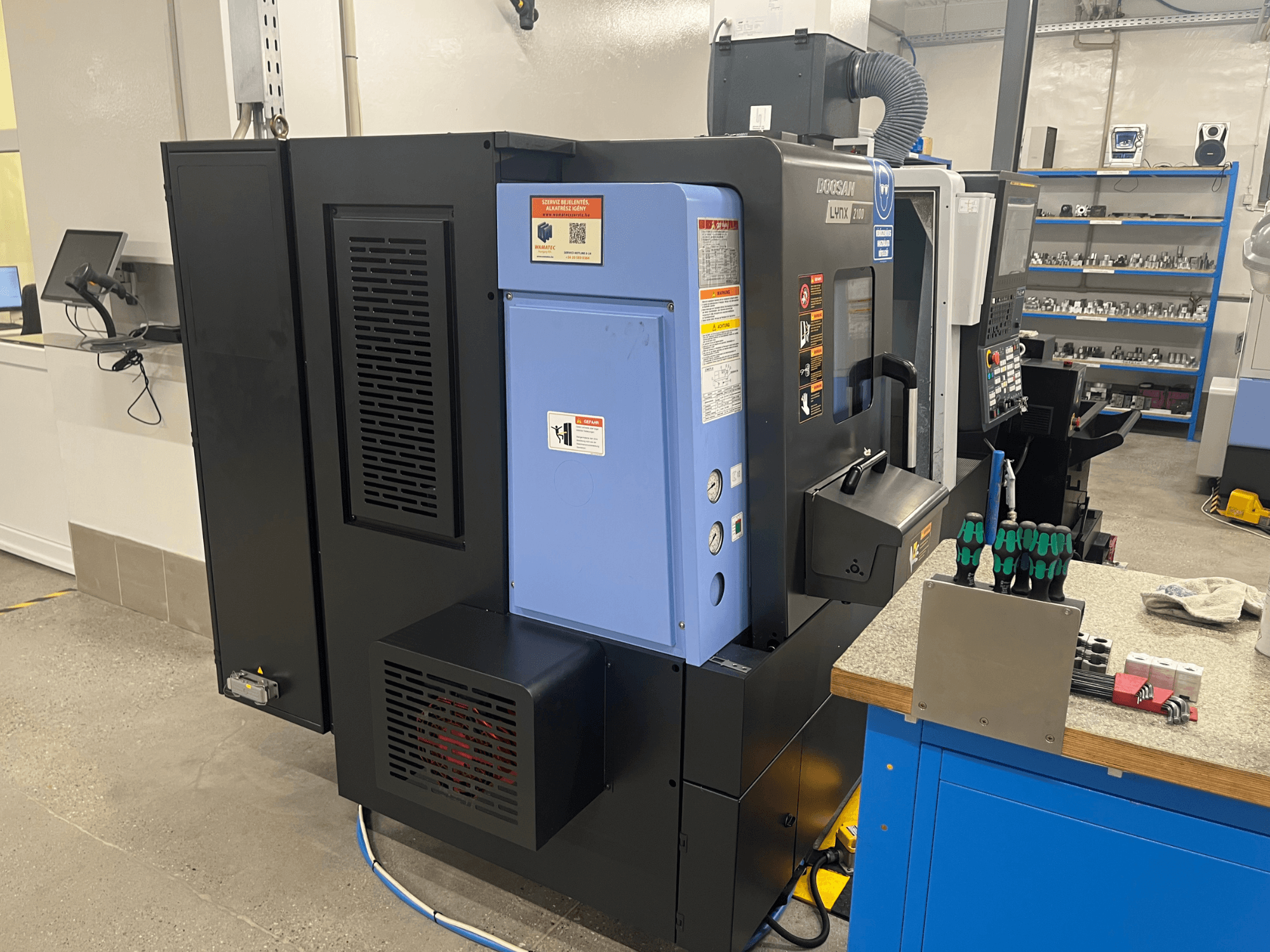

This DOOSAN Lynx 2100 A was manufactured in 2021. It features a Fanuc F0i+ control with a 15” LCD display, a main spindle speed of 6,000 rpm, and a chuck size of 160 mm. The machine offers a bar capacity through spindle of 52 mm, a maximum turning diameter of 350 mm, and a rapid traverse rate of 36 m/min. Consider the opportunity to buy this DOOSAN Lynx 2100 A horizontal turning machine. Contact us for more information.

Overview

brand: DOOSAN
year: 2021
MODEL: Lynx 2100 A
production hours: 2898
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine

Technical Information - DOOSAN Lynx 2100 A

Technical Specification

Spindle Speed: 6000 RPM

Additional Information

Main spindle motor power: AC 15/11 kW
Rapid traverse (X/Z): 36 m/min
Maximum turning diameter: Ø350 mm
Maximum turning length: 330 mm
Bar capacity through spindle: Ø52 mm
Tool shank size: 25 × 25 mm (Ø32 mm)
Number of turret stations: 12 (tool change time: 0.15 sec)
Programmable tailstock with live center
Basic toolholder set
Oil mist extractor
CE certification and transformer
Doosan tool load monitoring system
Programmable tailstock (CNC-controlled)
Bar feeder interface
Part catcher with collection box
Automatic tool presetter
High-pressure coolant system (7 bar / 1.1 kW)
Oil skimmer
Chip conveyor
Electrical noise filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
