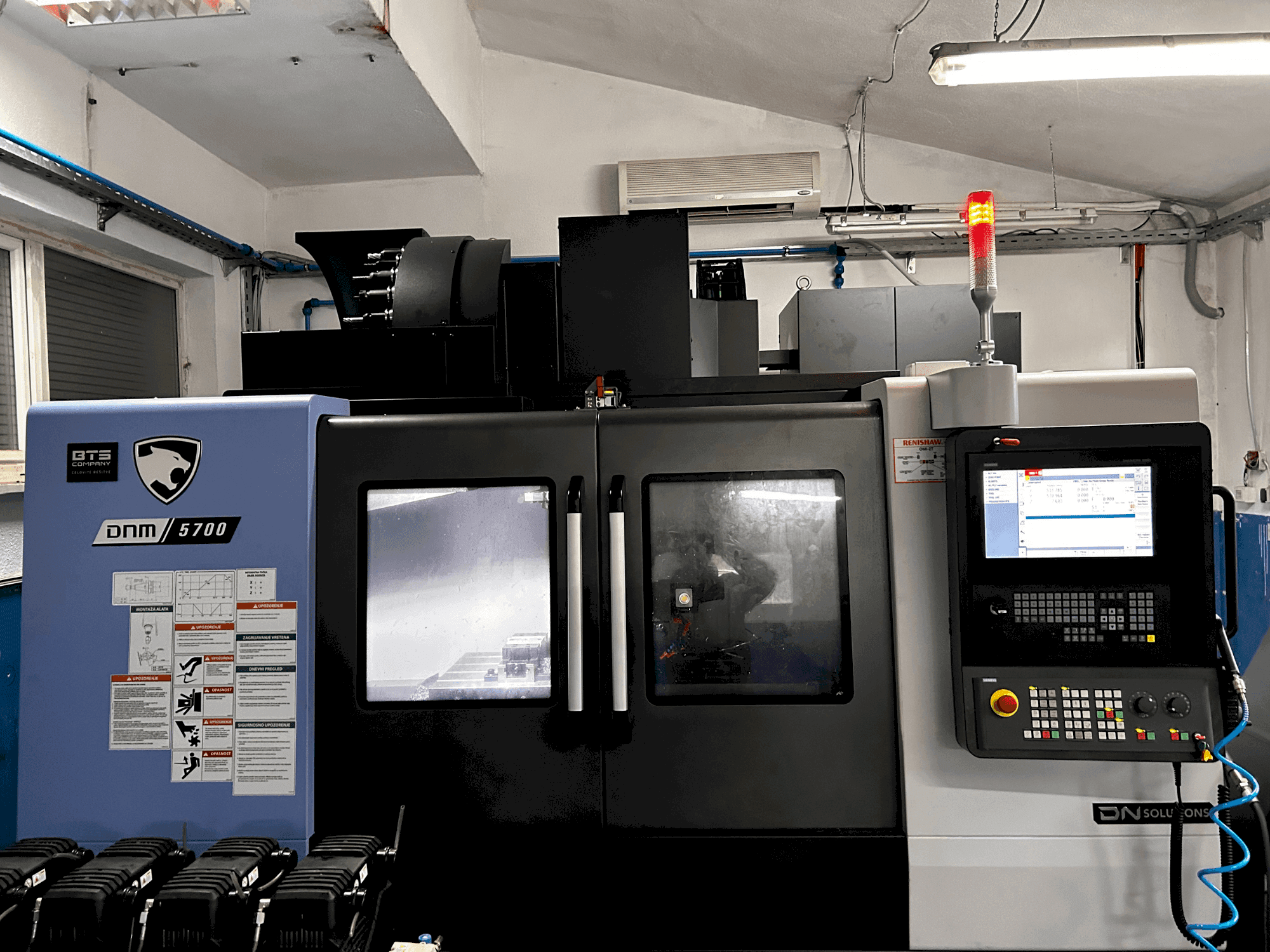

Front view of DN SOLUTIONS DNM 5700 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DN SOLUTIONS DNM 5700

Photo Gallery

DN SOLUTIONS - DNM 5700HR-MIL-DNS-2024-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DN SOLUTIONS DNM 5700 For Sale | gindumac.com

Show in original language

This 3-axis DN SOLUTIONS DNM 5700 vertical machining center was manufactured in 2024. It features a high-speed spindle with a maximum speed of 12,000 RPM, enhanced by a cooling system. The machine includes a 30-tool automatic tool changer and a Renishaw OMP60 in-machine measuring system. Additional features include a touch screen monitor, "Shop Mill" programming package, and preparation for a 4th axis. Consider the opportunity to buy this DN SOLUTIONS DNM 5700 vertical machining center. Contact us for more information.

Overview

brand: DN SOLUTIONS
year: 2024
MODEL: DNM 5700
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DN SOLUTIONS DNM 5700

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Additional Information

Additional equipment

Oil Skimmer
Air Conditioner
MPG - Handle
Flushing the Workspace - Flood Coolant
Air Blowing Nozzle on Spindle Head

Machine Benefits

Qualitative Machine Benefits

Dns tool load monitoring system
Coolant gun
Renishaw omp60 in-machine measuring system and ots cable-free tool measuring system (spindle) optical type sensorrenishaw omp60 in-machine measuring system and ots cable-free tool measuring system (spindle) optical type sensor
Measuring cycles software for s840d - ts27r, omp60, ots
On network drive
Additional measuring version beyond (only milling)

Technical Machine Benefits

15" monitor - touch screen
"shop mill" program package
Preparation for 4th axis (siemens)
Sw-option dxf readersw-option dxf reader
Spindle head cooling system
Power: p=11/16. 5 kw (s6 40%)
Max torque: tmax=141 nm (s6 40%)
Spindle specification: bt40 / pull stud: ki217-22327
Atc: 30 tools
Tsc: 12 bar - 50 hz, 4. 0 kw

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
