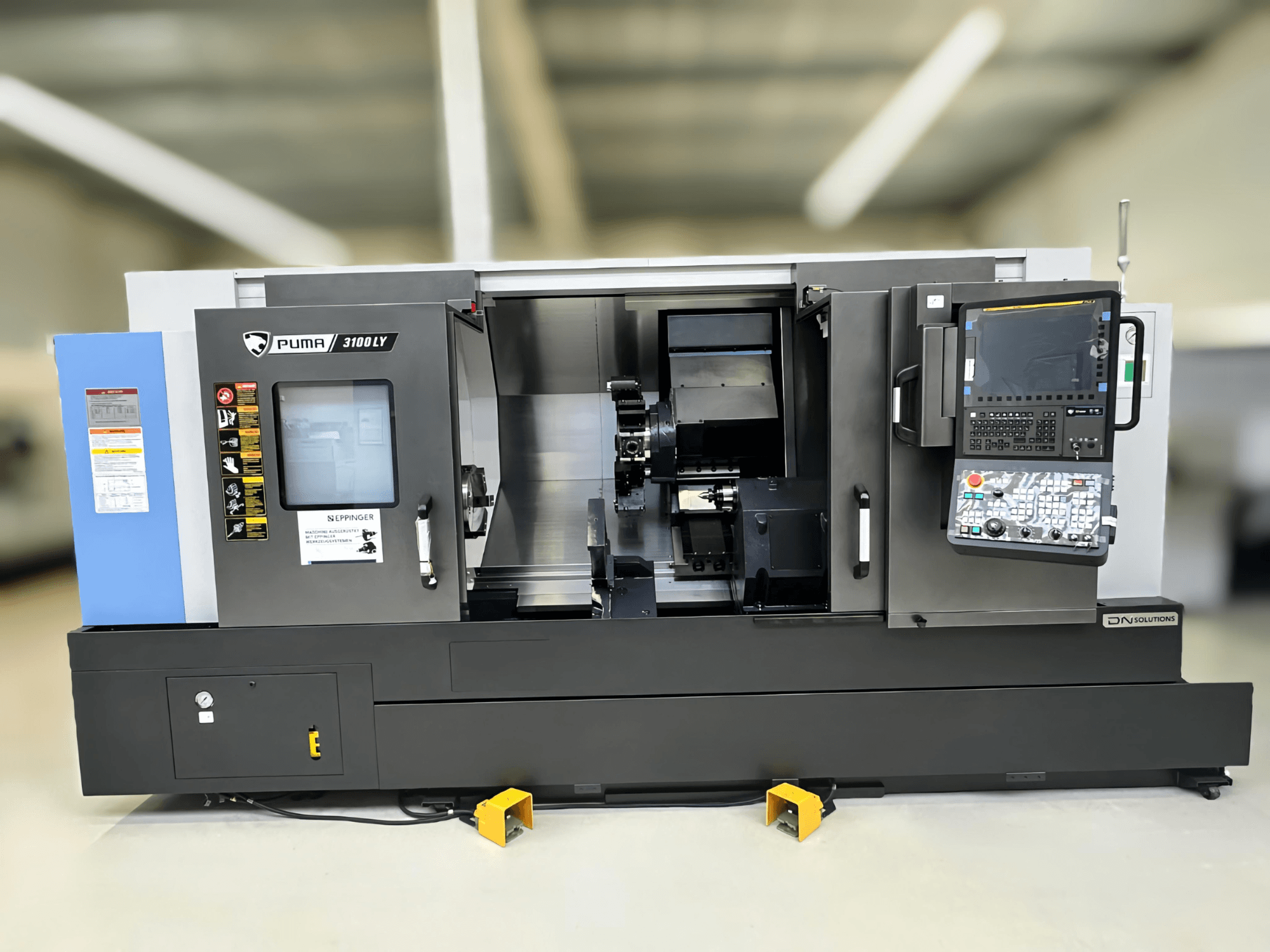

DN SOLUTIONS - 3100 LY DE-TUR-DNS-2023-00004

• Main spindle chuck size: 12 in (306 mm)

• Bar capacity: 102 mm

• Rapid traverse: X 30 m/min; Y 30 m/min; Z 10 m/min

• Max turning diameter: 420 mm

• Max turning length: 1285 mm

• Driven tool speed: 5000 rpm

• Tooling: 12 stations, BMT65

• Guideway type: Box guideways

• Axes/features: C-axis, Y-axis

• Electrical: 380 V, 3-phase, 50/60 Hz

• Electrical ratings: 55.02 kVA; Full load current 83.60 A; Short circuit capacity 10 kA; Interrupting capacity 5 kA

Additional equipment

• Optional:

• 1 pc. External turning tool post BMT65 25x25 single left, right (500-0679)

• 3 pcs. External turning tool post R/L high (500-6960)

• 1 pc. Facing tool post BMT65P/SQ 25 mm (500-0834)

• 3 pcs. Boring bar holders (ID: 50 mm) BMT65P (500-5555)

• 1 pc. IK cover (500-0837)

• 1 pc. Reducing sleeve set

• 1 pc. Reducing sleeve set (500-0808)

• 1 pc. Adapter set PRECI-FLEX Er32 (BMT 65P) (500-0500)

• 12 pcs. Covers BMT 65 (500-1931)

• 2 angled externally cooled Eppinger AGWs

• 2 straight externally cooled Eppinger AGWs

• Chip conveyor (hinge belt conveyor). Price on request

• Machine is delivered with standard basic package: Turret fully equipped, base holder included

Machine is a Showroom machine that never has been in production. Like new
