DMG - TWIN 65 Rg1AT-TUR-DMG-2013-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG TWIN 65 Rg1 For Sale | gindumac.com

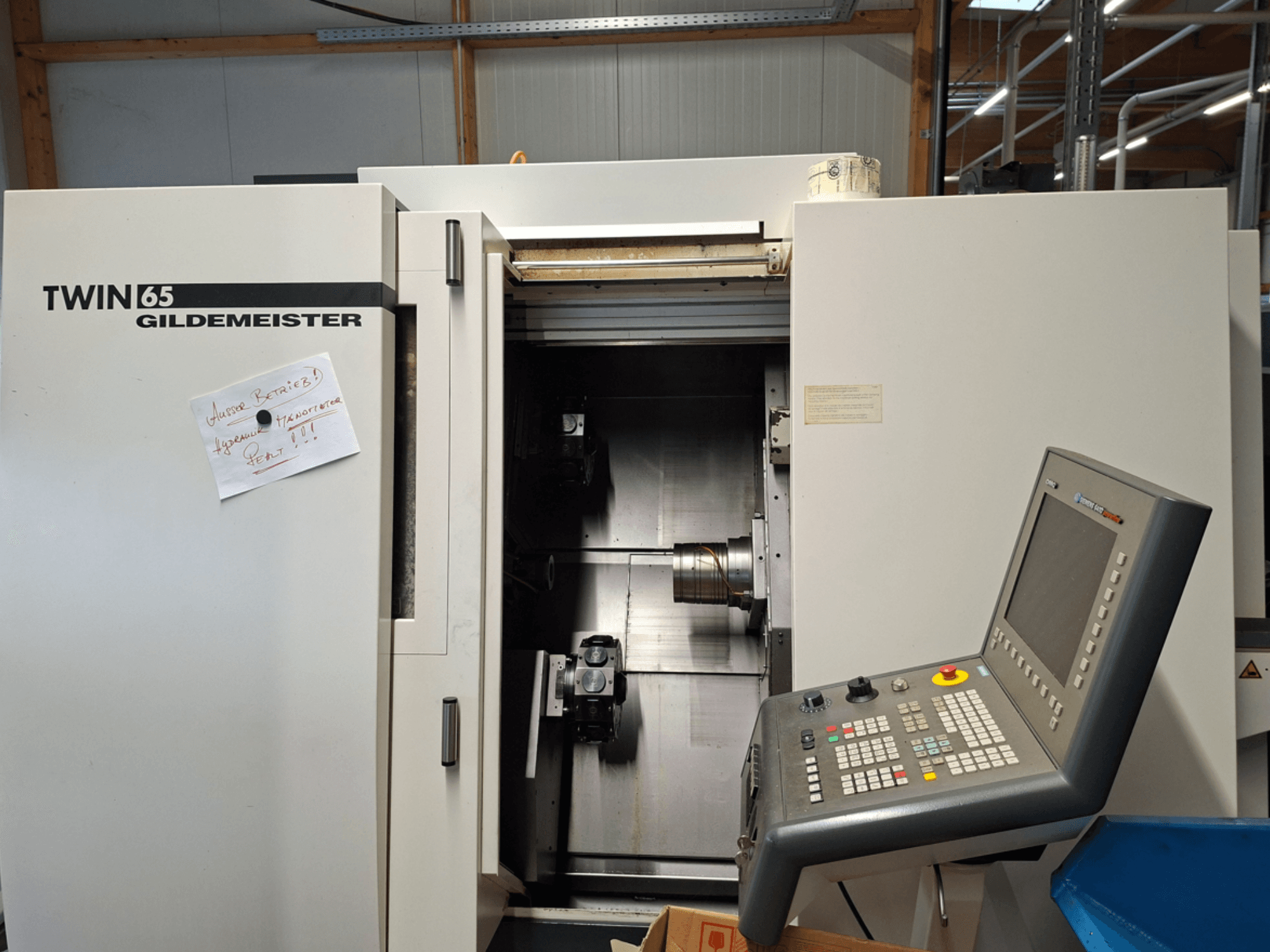

This 6-axis DMG TWIN 65 Rg1 was manufactured in 2013, featuring twin-spindle turning capabilities with CNC control 840D powerline. It includes two 12-station star turrets, main and counter spindles, Y-axis, and a chip conveyor. The machine offers a spindle speed range up to 5600 rpm and a chuck diameter of 150 mm. Consider the opportunity to buy this DMG TWIN 65 Rg1 horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: DMG
- year: 2013
- MODEL: TWIN 65 Rg1
- production hours: 37217
- application type: Turning
- Location: Austria
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG TWIN 65 Rg1
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Dimensions
- Machine Depth: 2810 mm
- Machine Height: 2050 mm
- Machine Weight: 5300 kg
Movement
- Number of Axes: 6
Technical Specification
- Spindle Power: 20 kW
- Spindle Speed: 5000 RPM
Additional Information
Configuration/features:
2 cross slides
2 star turrets, 12 stations each, with live tooling
Main and counter spindles
2 tool drives
2 C-axes and 1 Y-axis
Left spindle (main):
Chuck diameter: 150 mm
Spindle flange: 140 h5 mm
Spindle bore: 79 mm
Front bearing diameter: 165 mm
Power: 15 kW (100% ED) / 20 kW (40% ED)
Torque: 120 Nm (100% ED) / 160 Nm (40% ED)
Speed range: 25–5600 rpm
Right spindle (counter/sub):
Chuck diameter: 150 mm
Spindle flange: 140 h5 mm
Spindle bore: 79 mm
Front bearing diameter: 165 mm
Torque: 120 Nm (100% ED) / 160 Nm (40% ED)
Axes/travels:
Slide 1: X 220 mm, Z 320 mm, Y ±30 mm
Slide 2: X 120 mm, Z 345 mm
Slide 3: Travel 145 mm
Turrets/tooling:
Turret 1: 12 stations, VDI 25 (DIN 69880), live tooling up to 6000 rpm, 3.8 kW (40% ED)
Turret 2: 12 stations, VDI 25 (DIN 69880), live tooling up to 6000 rpm, 3.8 kW (40% ED)
Equipment/options on machine:
Differential clamping for main spindle
Differential clamping for counter spindle
Paint/enclosure (Gildemeister standard):
Machine enclosure and work area door: Calcite white (RAL 9010)
Chip conveyor: Titanium gray (RAL 7016)
Chip conveyor hood: Calcite white (RAL 9010)
Machine base and control cabinet: Titanium gray (RAL 7016)
Additional equipment
Chip conveyor (with hood)
Bar processing package RG 1:
Workpiece pick-up device with NC-controlled carriage
Hydraulically operated gripper arm, pneumatically operated gripper
1 set of gripper jaws (blanks)
Conveyor belt
Capacity: Ø 6–65 mm, length approx. 300 mm; max. 3.5 kg (4.5 kg for TWIN 65)
Preparation/connection for bar feeder or bar feeder magazine
Coolant spray gun
DMG indicator light, 4-way (stack light)
Electrical/mechanical connection for oil mist separator
Automatic sliding hood operation
EDS pressure switch for clamping device
DMG Netservice (on-board)
“Green light for your machine” pre-installed on the control unit (status/indicator)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
