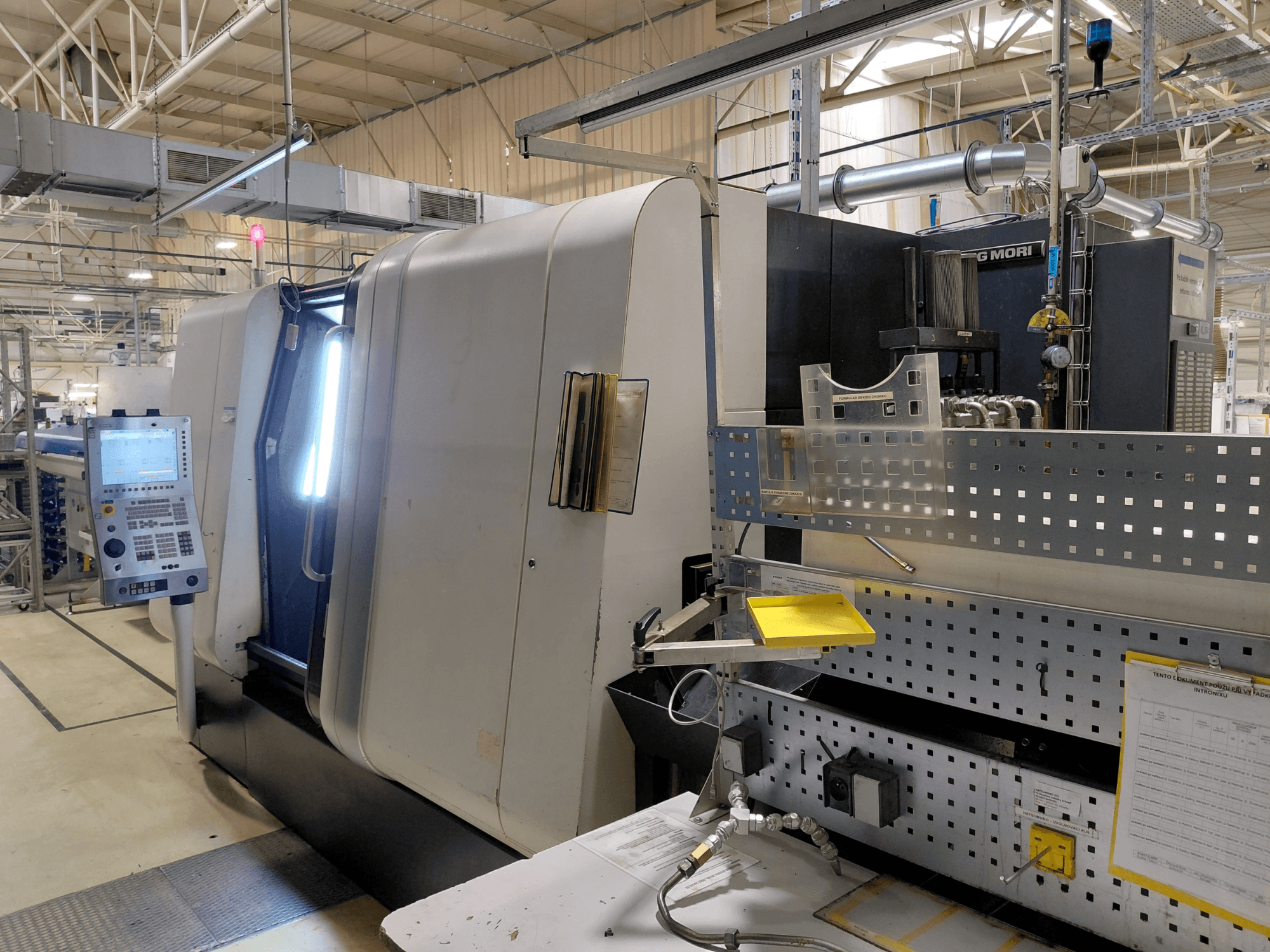

This 8-axis DMG MORI Sprint 65 linear was manufactured in 2015. It features a maximum main spindle speed of 5000 rpm and a maximum main spindle bar diameter of 65 mm. The machine includes two turrets, each with 12 driven tool positions, and a robust coolant tank capacity of 650 liters. If you are looking to get high-quality turning capabilities, consider the DMG MORI Sprint 65 linear multi-spindle turning machine we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2015
- MODEL: Sprint 65 linear
- production hours: 43196
- application type: Turning
- Location: Germany
- machine type: Multi-Spindle Turning Machine
- control unit brand: FANUC
Technical Information - DMG MORI Sprint 65 linear
Control Unit
- Control Brand: FANUC
- Control Model: 310
Dimensions
- Machine Height: 2300 mm
- Machine Length: 4500 mm
- Machine Weight: 9500 kg
- Machine Width: 1990 mm
Movement
- Number of Axes: 8
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 65 mm
- Spindle Power: 25 kW
- Spindle Speed: 5000 RPM
Additional Information
Total hours: 64274 h; Operating hours: 43196 h
Counter spindle: 17 kW; max speed 5000 rpm; max bar diameter 45 mm
CNC controlled axes:
X1: stroke 165 mm; rapid 30 m/min; acceleration 5 m/s2
Z1: stroke 678 mm; rapid 30 m/min; acceleration 5 m/s2
Y1: stroke 80 (+50/-30) mm; rapid 30 m/min; acceleration 5 m/s2
X2: stroke 165 mm; rapid 30 m/min; acceleration 5 m/s2
Z2: stroke 640 mm; rapid 30 m/min; acceleration 5 m/s2
W2: stroke 690 mm; rapid 30 m/min; acceleration 5 m/s2
Turrets: 2; 12 driven positions per turret; Tool system VDI 30; Max driven tool speed 4000 rpm
Coolant system: tank approx. 650 l; pump capacity per turret 20 l/min; pressure 7 bar
Power supply: 91 kVA
Base machine configuration and functions:
Drive for slide 1 and 2 (all 12 positions)
C-axis for main and counter spindle
Y-axis for slide 1
Counterspindle collet cleaning with coolant
Mechanical preparation for oil mist filter
Electrical and software interface for bar loader
Angular synchronism between main and counter spindle
Automatic machine shut down
2 additional on/off outputs (4 M-functions)
Rigid tapping
Piece and time counter
Software for polygonal turning (slide 1 and 2)
Constant cutting speed
Helical interpolation (slide 1)
Spindle speed control
Quadruple warning light
Cooling device for electrical cabinet
Control options:
Tool wear monitoring system (FANUC monitor)
Sister tool selection system (FANUC monitor)
Additional equipment
IEMCA MASTER 865 MP 43 L bar feeder
Swarf (chip) conveyor, belt type
Workpiece unloading device including belt
Main spindle collet chuck MPF 65/140 (no axial feed), max Ø 65 mm
Manual collet changer SACO MPT65/140 and MPF65/140
Counter spindle chuck SMW 175-BBD, incl. adapter
1 set of soft jaws for SMW 175-BBD
Differential clamping pressure for counter spindle (two selectable pressures)
External flushing of jaws/collets with coolant on main and counter spindle
Various new spare parts available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
