➤ Used MURATA Model MURATEC MD 120 For Sale | gindumac.com

Show in original language

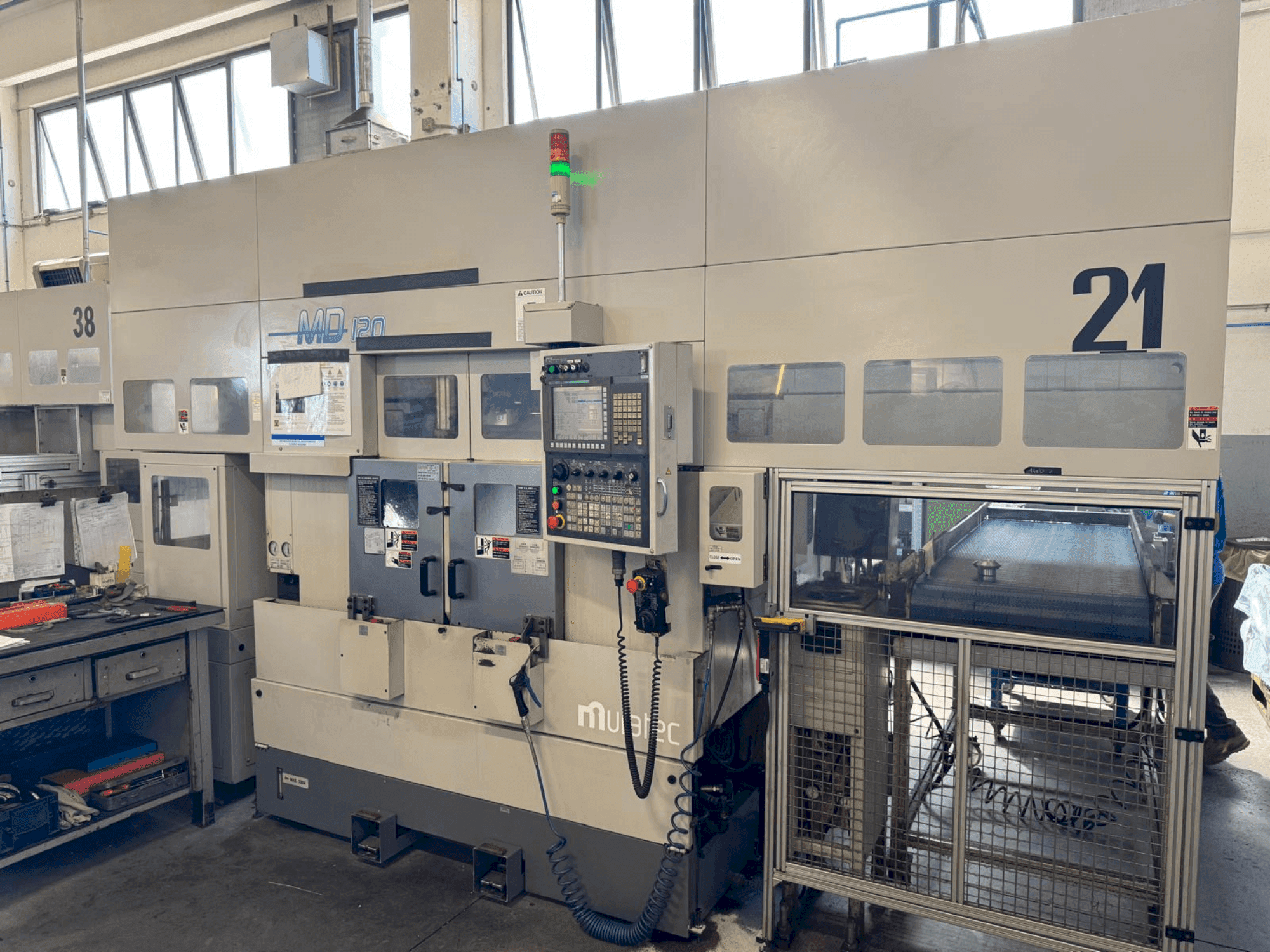

This 4-axis MURATA Muratec MD 120 was manufactured in 2009. A CNC 2-spindle, 2-turret precision lathe with FANUC FS31i – Model A control, it features a max turning diameter of Ø 120 mm and a max turning length of 75 mm. Spindle speeds reach up to 4,500 rpm, and it includes a chip conveyor. If you are looking to get high-quality turning capabilities, consider the MURATA Muratec MD 120 machine we have for sale. Contact us for more information.

Overview

brand: MURATA
year: 2009
MODEL: Model MURATEC MD 120
application type: Turning
Location: Italy
machine type: Multi-Spindle Turning Machine

Technical Information - MURATA Model MURATEC MD 120

Dimensions

Machine Weight: 4500 kg

Movement

Number of Axes: 4
X-axis Travel: 130 mm

Technical Specification

Spindle Speed: 4500 RPM

Additional Information

Axes: 4 (X1, Z1, X2, Z2)
Distance between spindles: 340 mm
Max turning diameter: Ø 120 mm
Max turning length: 75 mm
Turret tools: 2 × 10 driven positions

Additional equipment

Chip conveyor
Integrated loader: 2 loading stations; loader travel X-axis (Left 200 mm / Right 1,600 mm), Y-axis 550 mm, Z-axis 155 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
