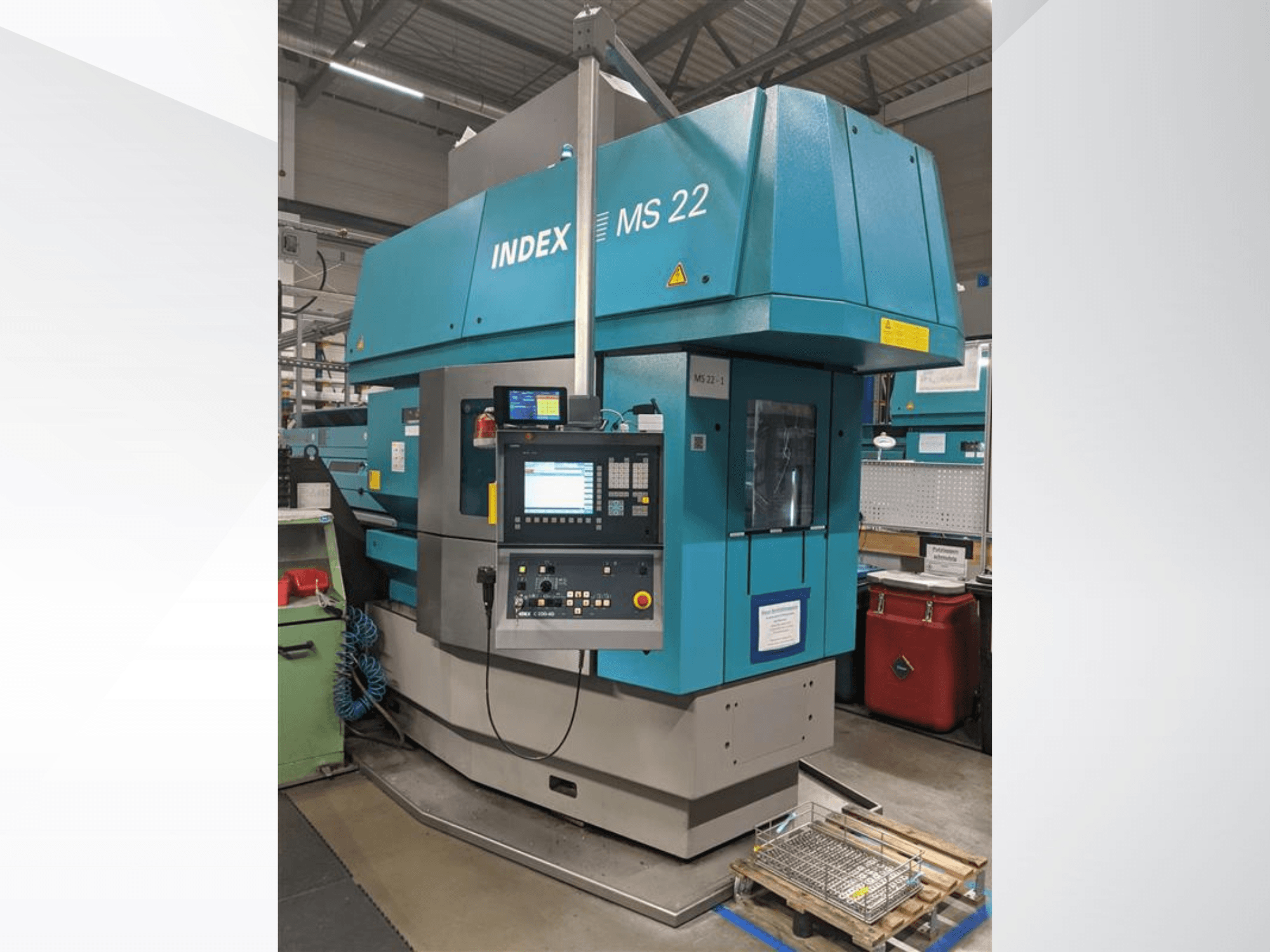

Index - MS 22DE-TUR-IND-2011-00001

- Nominal Voltage: 400 V

- Rated Current (In): 99 A

- Short Circuit Current (Icu): 50 kA

- Peak Current (I2): 3.6 kA

- Maximum Backup Fuse: 100 A

- Rated Power: 64 kW

- Connected Load: 67 kVA

- Frequency: 50 Hz

- Control Voltage: 24 VDC

- Operating Hours: 124,075 h

- Hydraulic Operation Hours: 61,189 h

- Operating Time: 37,971 h

- Production Time: 27,865 h

- Control System: Siemens Sinumerik 840D powerline (Index C200-4D) with Dual NCU

- Bar Loader System: IEMCA / SIR MS22 P flat loader, Type 33 (YOM: 2011, Pressure: 6 bar, Mass: 100 kg, Voltage: 400 V / 50 Hz, Current: 7 A)

- Material Feeders: 1 set Ø12 with reducer tubes, 1 set Ø18 with reducer tubes, 1 set Ø24

- Clamping Heads: Ø9, Ø10, Ø12 – Ø18, Ø20 – Ø22

- Knoll Coolant/Filter System (YOM: 2011): 1x high-pressure pump (80 bar, 24 l/min), 1x high-pressure pump (40 bar, 55 l/min), 1x low-pressure pump (300 l/min at 4 bar)

- Tooling Drive Connections: 2x electrical connections on NCU 1, 3x electrical connections on NCU 2

- Tooling Attachments: 1x polygon turning device, 3x powered tool holders ER11 (i = 1:2, max speed 12,000 rpm), 1x powered tool holder VDI25 (i = 1:1, max speed 6,000 rpm)

- Back-machining Unit: on slide 6.3 (with 2x powered tool holders, 1x fixed holder, i = 1:2, max speed 12,000 rpm)

- Optional Equipment: Fire suppression system, Coolant mist extraction and filtration system (SH 2000-PEV-T/TR, two-stage design), Integrated ARTIS process monitoring system
