Mazak Quick Turn 18 NSP

Photo Gallery

Rs. 1,602,376

gindumac price

(Ex works)

Get an official quote

Mazak - Quick Turn 18 NSPDE-TUR-MAZ-1992-00001

Name: Mazak Quick Turn 18 NSP
Brand: Mazak
SKU: DE-TUR-MAZ-1992-00001
Price: 1602376 INR
Availability: InStock

Rs. 1,602,376

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quick Turn 18 NSP For Sale | gindumac.com

Show in original language

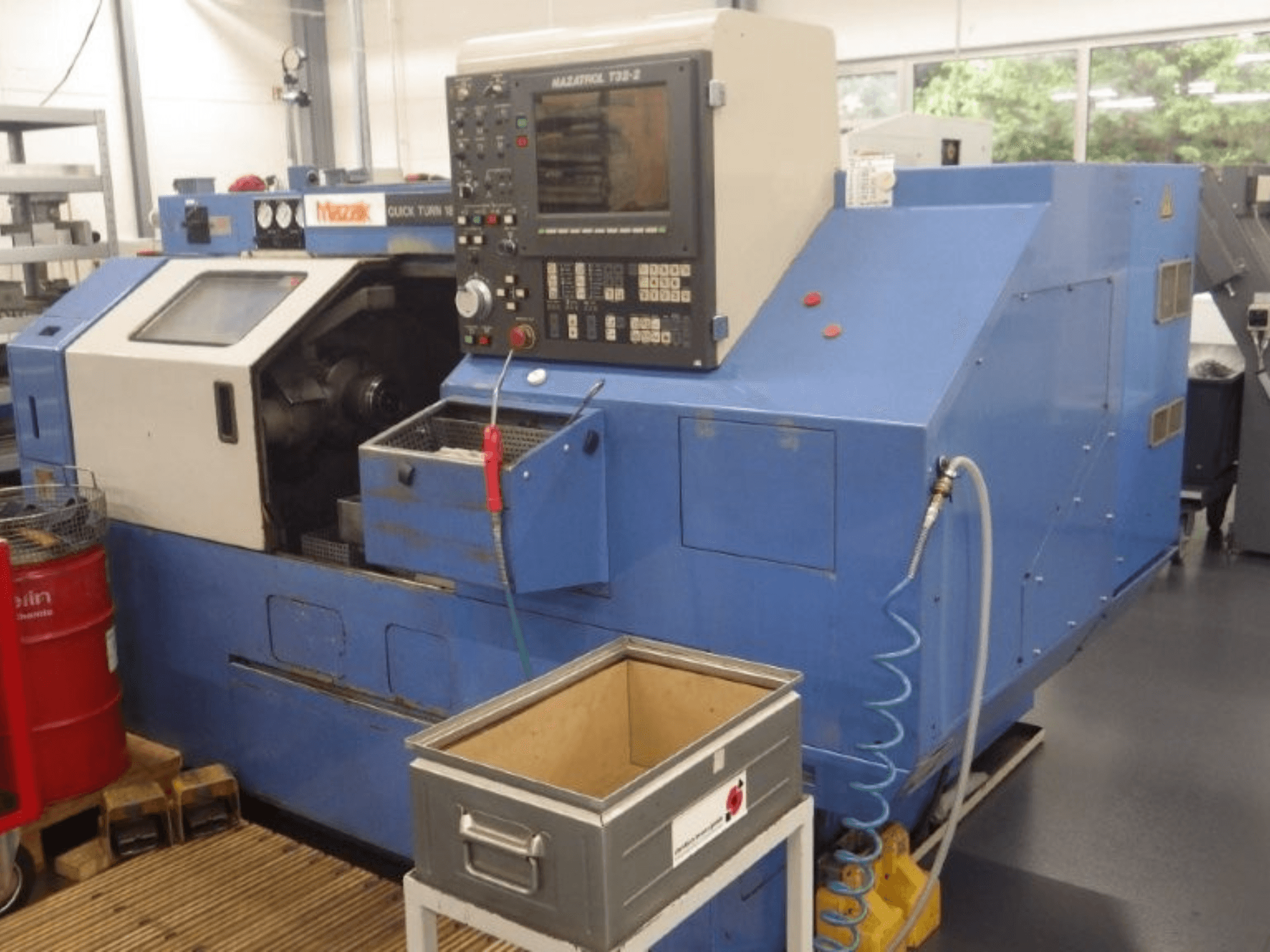

Multi-spindle turning machine manufactured in 1992. This Mazak Quick Turn 18 NSP features a maximum turning diameter of 260 mm and a turning length of 500 mm. It includes a tool turret with 8-fold / 16 positions and a spindle speed range of 36 - 3,600 rpm. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn 18 NSP machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Mazak
year: 1992
MODEL: Quick Turn 18 NSP
application type: Turning
Location: Germany
machine type: Multi-Spindle Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn 18 NSP

Control Unit

Control Brand: MAZATROL
Control Model: T32-2

Dimensions

Machine Height: 1900 mm
Machine Length: 2700 mm
Machine Weight: 4300 kg
Machine Width: 2000 mm

Movement

Number of Axes: 2
X-axis Travel: 180 mm

Technical Specification

Counter Spindle: Yes
Max. Bar Diameter: 60 mm
Spindle Speed: 3600 RPM

Additional Information

- Control: MAZATROL T32-2

- Max. Turning Diameter: 260 mm

- Max. Turning Length: 500 mm

- Speed Range Main Spindle: 36 - 3,600 rpm

- Speed Range Sub-Spindle: 36 - 3,600 rpm

- Travel Z-Axis: 510 mm

- Travel X-Axis: 180 mm

- Spindle Bore: Ø 70 mm

- Bar Loader Length: 3,000 mm

- Collet Chuck Holder: For 185 E collets

- Collet Chuck Range (Main Spindle): Ø 4 - 60 mm

- Sub-Spindle: 3-jaw chuck, Ø 125 mm to Ø 70 mm

- Tool Turret: 8-fold / 16 positions

- Tool Eye: Measuring probe for tool measurement in working area

- Main Spindle Chuck: KITAGAWA 3-jaw chuck Ø 254 mm

- Coolant System: Complete coolant equipment

- Foot Switch: 2 double foot switches for opening/closing both chucks

- Machine Weight: 4,300 kg

- Machine Dimensions (L x W x H): 2.7 x 2.0 x 1.9 m

Optional

- Drip pan (2500 x 2700 mm), IRCO 3000 mm bar loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
