➤ Used DMG MORI M1 PRO For Sale | gindumac.com

Show in original language

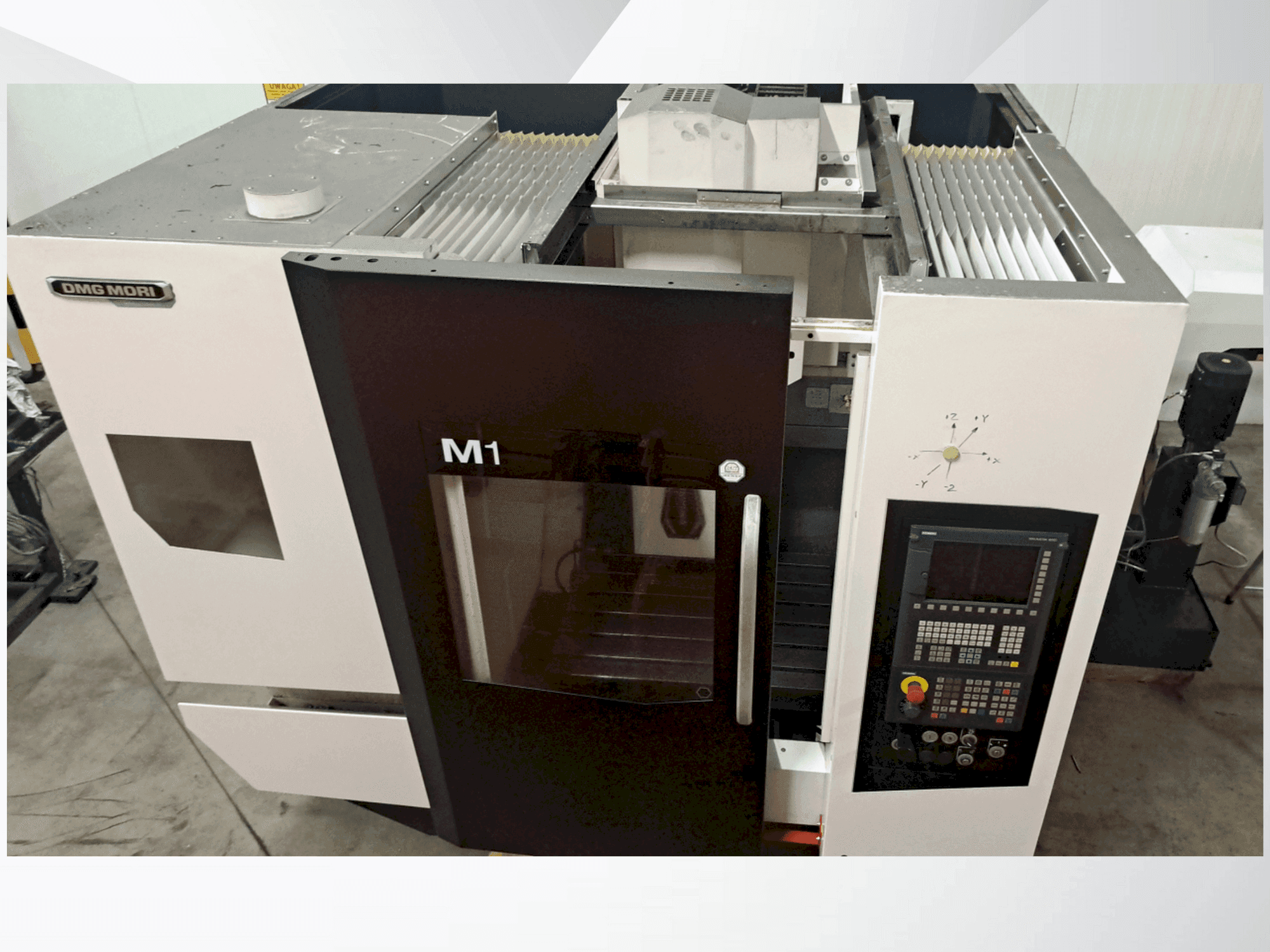

This 3-axis DMG MORI M1 PRO was manufactured in 2022. It features a robust inline spindle with a speed range of 20-12000 rpm and a 24-position automatic tool changer. The worktable supports up to 600 kg with dimensions of 850 × 650 mm. Additional highlights include a Renishaw PP40 probe, 20 bar coolant system, and LED lighting. Ideal for precision machining tasks. Contact us for more information about this machine.

Overview

brand: DMG MORI
year: 2022
MODEL: M1 PRO
production hours: 1316
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI M1 PRO

General Data

Measurements width: 2665 mm
Measurements depth: 3065 mm
Measurements height: 2840 mm
Machine weight: 5600 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D

Main drive

Spindle speed range: 20 – 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 510 mm

Table

Table load: 600 kg

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: SK40

Media

Power consumption: 20 kVA

Additional Information

Additional equipment

Job Shop package
Renishaw PP40 wireless workpiece probe
TS27R tool measurement probe
Scraper-type chip conveyor
Coolant tank capacity: 200 L (left side)
Coolant pump: 20 bar internal through-spindle coolant
Machine enclosure roof
LED work area lighting

Machine Benefits

Technical Machine Benefits

Table size: 850 × 650 mm
24-position automatic tool changer with double gripper
Drive type: ball screw drives with ac servomotors****
Voltage: 3 × 400 v

Extra Information

The machine is in fully functional condition Tested and confirmed by DMG service report, including accuracy measurements Complete documentation is available Currently disconnected from power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
