DMG MORI M1 Pro

Photo Gallery

DMG MORI - M1 ProDE-MIL-DMG-2022-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI M1 Pro For sale | gindumac.com

Show in original language

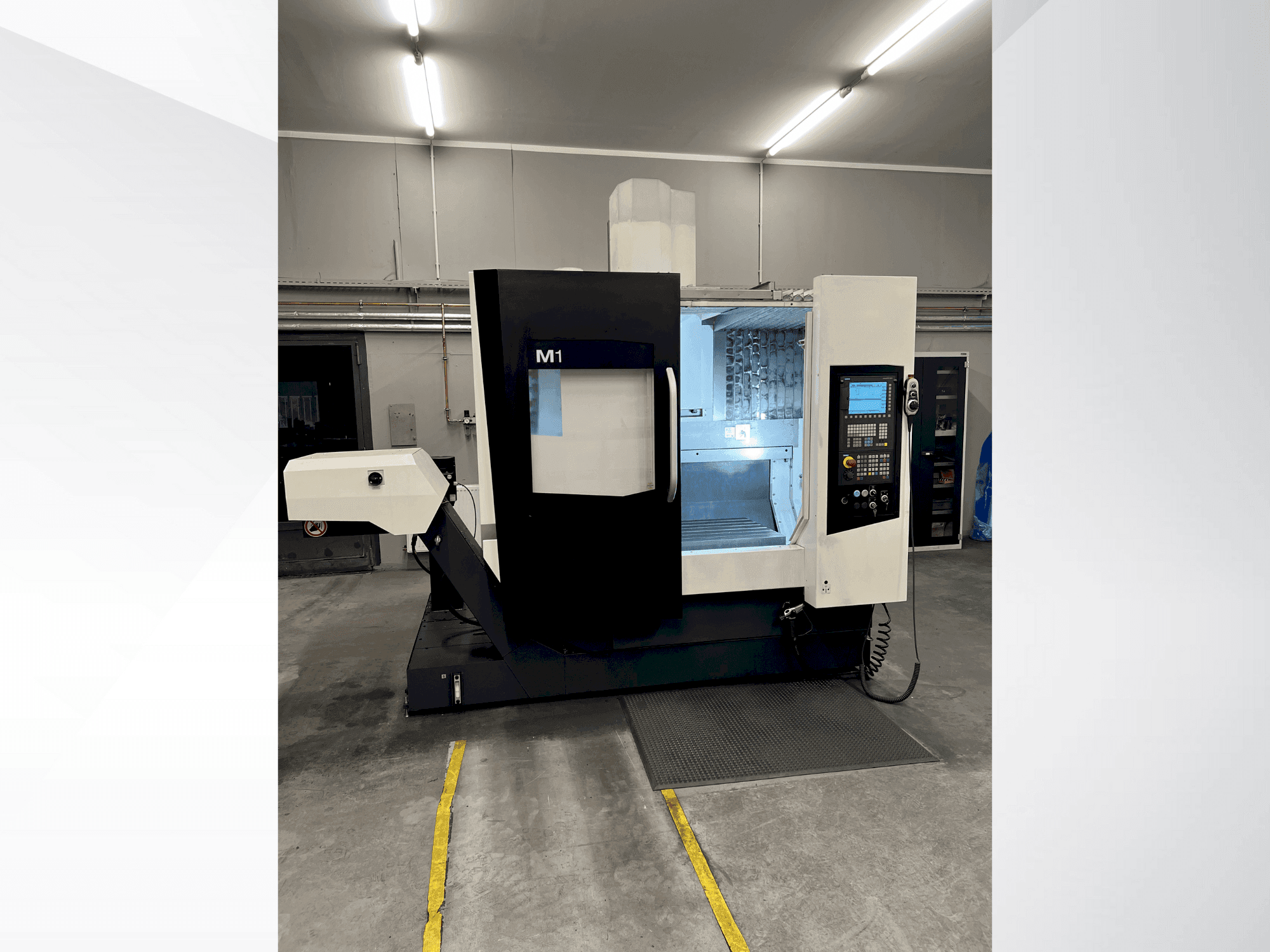

This 3-axis DMG MORI M1 Pro vertical machining center was manufactured in 2022. It features a 550 x 550 x 510 mm work envelope, rapid traverse rates of 24 m/min, and a tool magazine for 24 tools. Equipped with a high-speed range up to 12,000 rpm and an internal coolant supply of 20 bar, it also includes a Renishaw touch probe kit and a chip conveyor. For more information about this vertical machining center, please reach out to us.

Overview

brand: DMG MORI
year: 2022
MODEL: M1 Pro
production hours: 1100
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI M1 Pro

Control Unit

Model: 828 D
Brand: SIEMENS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Tool taper: SK40 DIN 69871
Number of axis: 3

Movement

X-AXIS Movement: 550 MM
Y-AXIS Movement: 550 MM
Z-AXIS Movement: 510 MM

Table

Outer length: 850 mm
Outer width: 650 mm

Media

Chip conveyor: Yes

Additional equipment

- Spindle Torque: 83/57 Nm (40/100% DC) / Spindle Motor Power: 13/9 kW (40/100 % ED)
- Rapid Traverse (X / Y / Z): 24 m/min
- Number of Tools: 24-tool magazine with double gripper
- Tool Clamping: According to DIN 69872
- DMG MORI IoTconnector and NETservice
- 3-D Data Model: In STEP format
- Renishaw Touch Probe Kit / Coolant Spray Gun / Cabin Roof / Internal Coolant Supply: 20 bar
- Bed Flushing: Via M function / Job Store Package: For Siemens 828 D
- Mechanical Preparation for Oil Mist Separator: Diameter: 150 mm / External and Internal Blow Air: Through spindle center
- Tropical Package: Active cooling unit for control cabinet and additional fan in the control panel (recommended from 35°C to max. 45°C)/ External Electronic Handwheel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robust spindle power and torque for demanding operations.
- - Efficient tool management with a 24-tool magazine.
Qualitative Machine Benefits:
- - Precision and reliability with siemens 828 d control and renishaw touch probe kit.
- - Enhanced cooling capabilities for operation in high-temperature environments.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
