➤ Used DMG MORI HSC 105 For Sale | gindumac.com

Show in original language

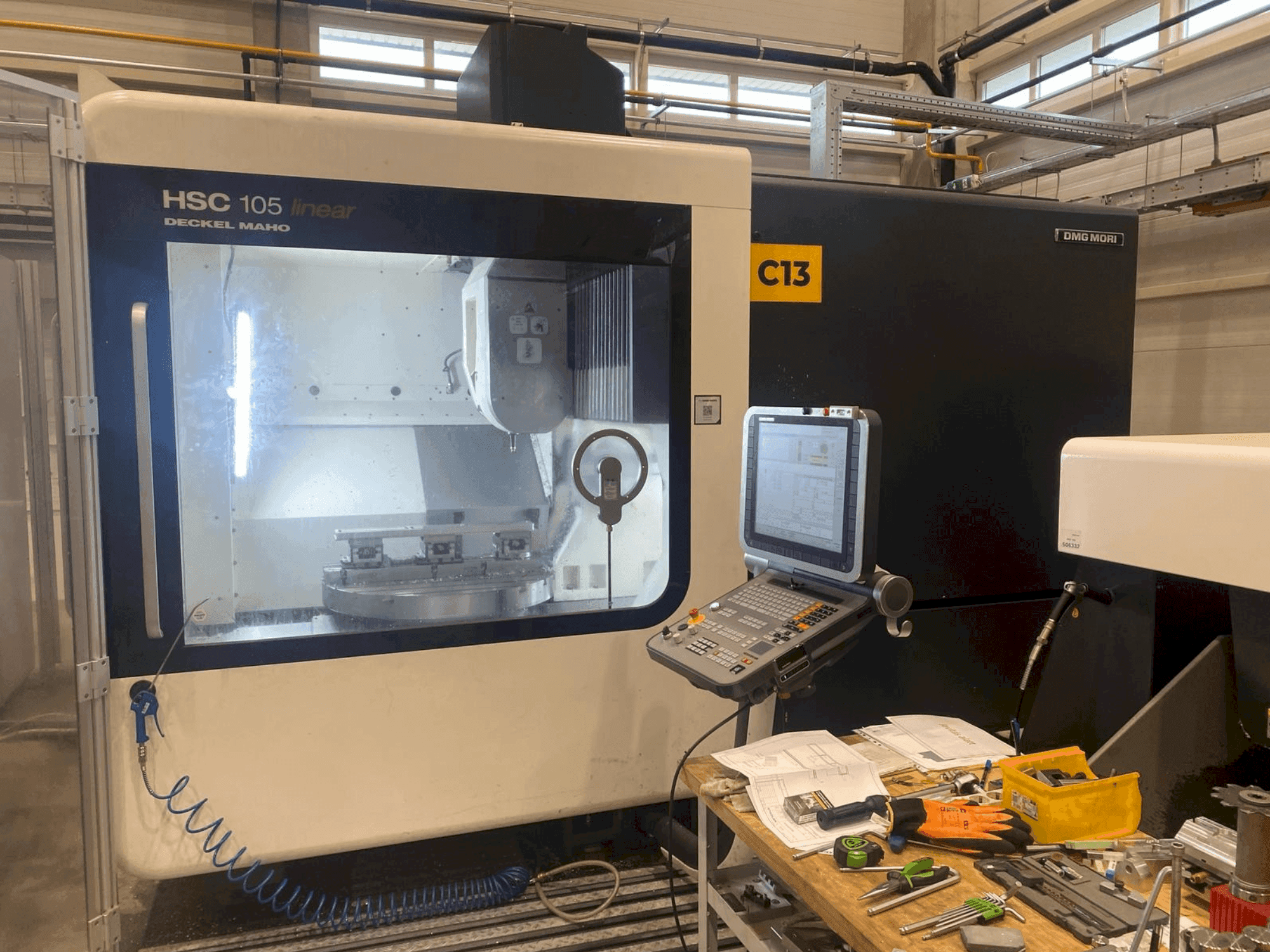

This 5-axis DMG MORI HSC 105 universal machining center was manufactured in 2021. It offers advanced capabilities for precision machining. Consider the opportunity to buy this DMG MORI HSC 105 universal machining center. Contact us for more information.

Overview

brand: DMG MORI
year: 2021
MODEL: HSC 105
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI HSC 105

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530 HSCI

Movement

X-axis Travel: 1050 mm
Y-axis Travel: 800 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Power: 55 kW
Spindle Speed: 28000 RPM

Additional Information

Additional equipment

Tool Taper: HSK-A63 DIN 69893 / Tool Magazine: 30-position disk tool magazine, 60-position pickup chain type
Scraper Belt Chip Conveyor and Machine Bed Flushing / Separate Water Treatment Unit: 980-liter tank and paper filter / Pump: 40 bar / 23 l/min for internal cooling through spindle / Extended Chip Flushing / Rotating Inspection Window / Manual Coolant Flushing Gun / Internal Compressed Air Cooling: Through spindle / EROWA Pallet Handling System Preparation
Documentation: English, Hungarian / Display Text: German/Hungarian / Screen Text: German/Hungarian
DMG MORI Monitoring: D-ME406* DMG MORI Messenger V4 / DMG MORI Software Solutions: DMG MORI Service Agent, DMG MORI NETSERVICE, DMG MORI IoTconnector

Machine Benefits

Technical Machine Benefits

Rapid traverse speed: 90 m/min
Mounting surface: Ø 950 mm / b-tilt range: +10/-110° / c-rotation range: 360° / maximum table weight: 800 kg
3d-controller heidenhain itnc530 hsci / operator interface: smart. Nc
Cooling: active cooling for spindle and linear drive
Mpc machine protection control / direct measuring system: with pressurized air cleaning / active cooling: electrical switch cabinet / additional cooling: external compressed air cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
