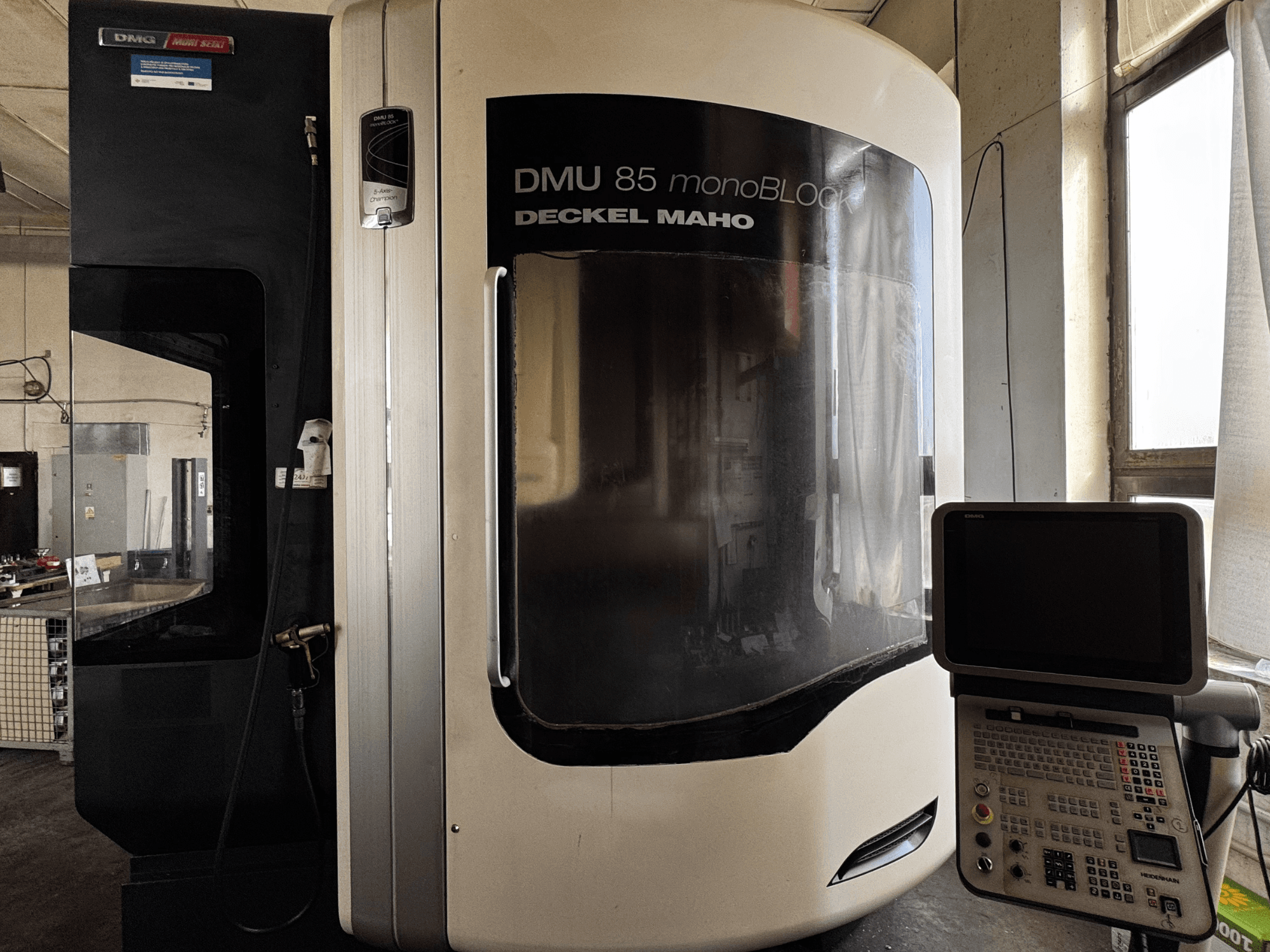

DMG MORI DMU 85 monoBLOCK vertical machining center, front view with control panel and large viewing window.
DMG MORI DMU 85 monoBLOCK vertical machining center, front view with control panel and large viewing window.

DMG MORI - DMU 85 monoBLOCKCZ-MIL-DMG-2013-00001

Rs. 17,124,654
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG MORI DMU 85 monoBLOCK was manufactured in 2013. It features an impressive X-axis travel of 935 mm, Y-axis travel of 850 mm, and Z-axis travel of 650 mm. The machine includes a robust table size of 1,040 mm and a maximum table load of 1,500 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 85 monoBLOCK vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG MORI
  • year: 2013
  • MODEL: DMU 85 monoBLOCK
  • production hours: 31460
  • application type: Milling
  • Location: Czech Republic
  • machine type: Vertical Machining Centre
  • Available from: 13/04/2026
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 85 monoBLOCK

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530 HSCI

Dimensions

  • Table Load: 1500 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 935 mm
  • Y-axis Travel: 850 mm
  • Z-axis Travel: 650 mm

Technical Specification

  • Number of Tools: 60
  • Spindle Speed: 18000 RPM
  • Taper Size: HSK 63

Additional Information

  • Max feedrate: 40,000 mm/min

  • Table size: Ø 1,040 mm

  • Through-spindle coolant: 20 bar

  • Operating mode 4: machining process control (work with open work area door allowed)

  • Repairs/maintenance:

    • C-axis seal replaced just after warranty (improved version)

    • Spindle replaced (05/2021)

    • Machine measured last year – circular interpolation (Ballbar) within tolerance

  • Typical use:

    • Duralumin machining 80% overall

    • 3-axis: 50%

    • 5-axis: 40% (up to 10% 5-axis continuous)

Additional equipment

  • Measuring probe: TS649

  • Tool probe: Blum Laser

  • 3D quickSET

  • Electric handwheel

  • Rinsing gun

  • Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
