DMG MORI DMU 80 EVO
DMG MORI - DMU 80 EVO
2011
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG MORI DMU 80 EVO Vertical Machining center

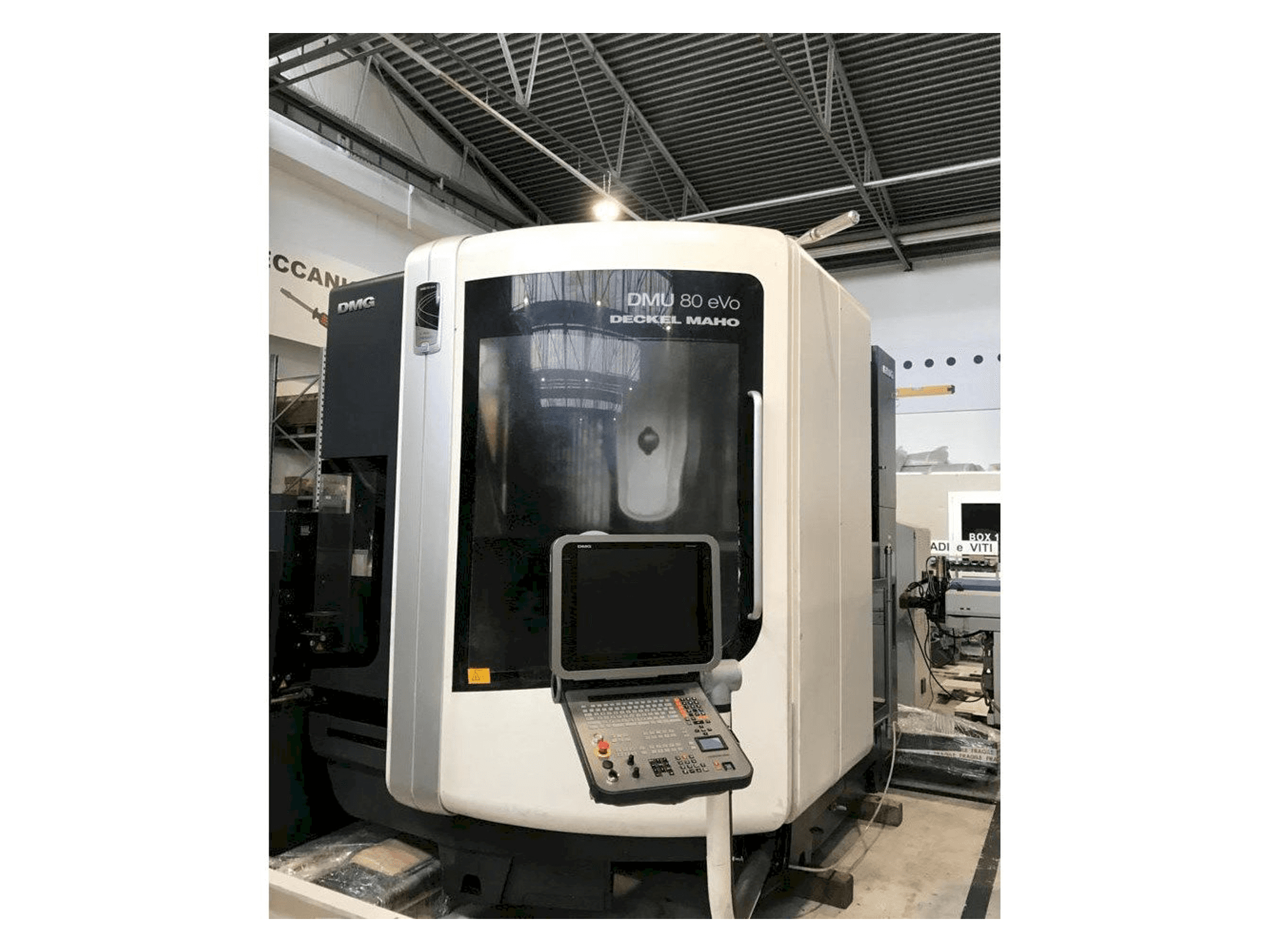

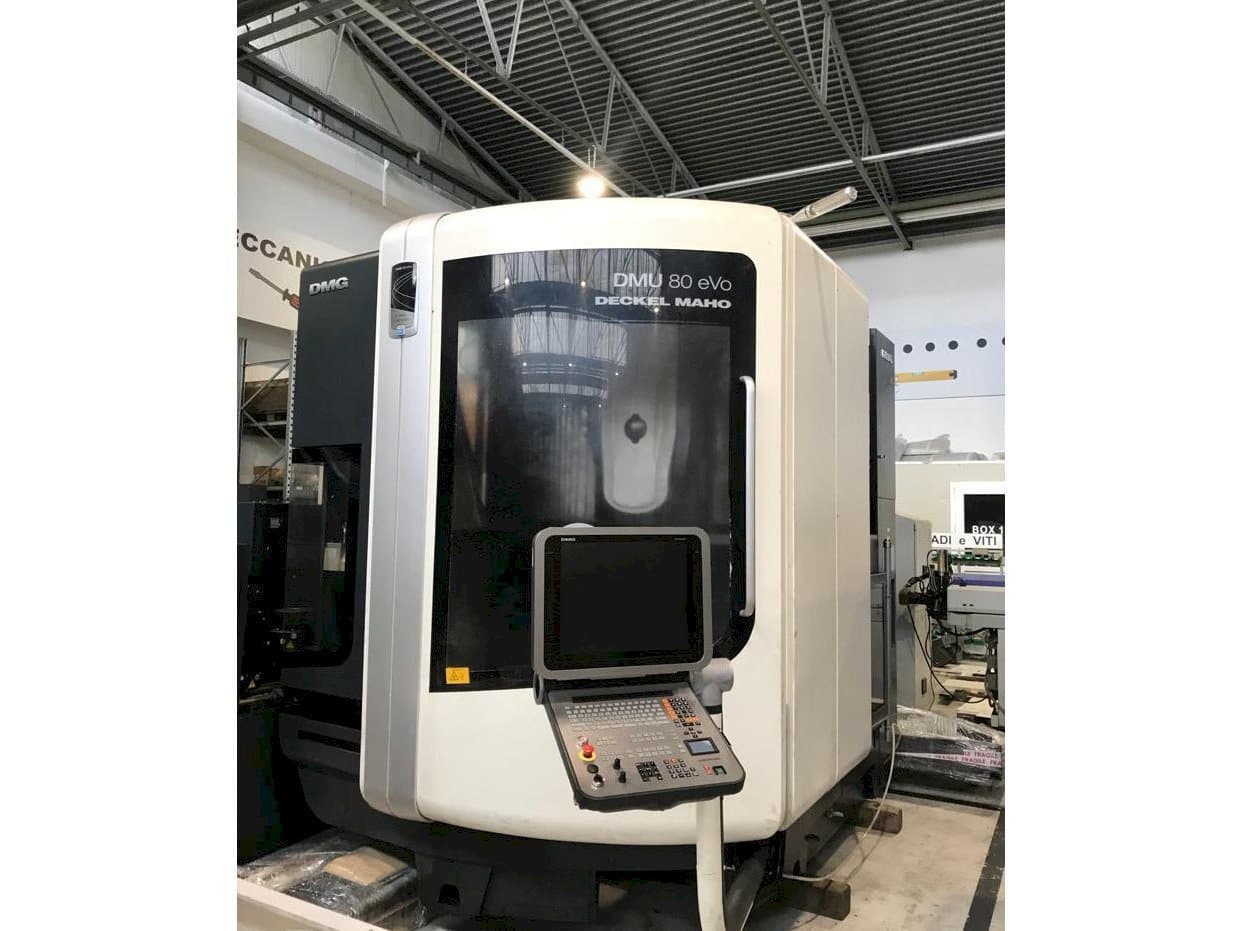

This DMG MORI DMU 80 EVO Vertical Machining center was made in 2011 in Germany and has 31887 production hours. It is equipped with a HEDEINHAIN TNC 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.
Overview
- brand: DMG MORI
- year: 2011
- MODEL: DMU 80 EVO
- production hours: 31887
- application type: Milling
- Location: Italy
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
- GINDUMAC ID: IT-MIL-DMG-2011-00001
Technical Information
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 530 CNC
Main drive
- Spindle speed range: 18000 1/MIN
- Spindle motor power: 35/25 kw
- Tool taper: ISO 40
- Number of axis: 5
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 650 mm
- Z-AXIS Movement: 550 mm
- B-AXIS Movement: -5 / + 110° MM
- C-AXIS Movement: 360° MM
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Torque nm 130/87 (40% / 100%)
- - Standard feed drives xyz 50m/min.
- - Feed drives dynamic xyz 80m/min.
- - Clamping area 800x700 mm.
- - Load on table kg. 600
- - Table torque axis speed rpm 80/150
- - B / c axis speed rpm 50/50
- - Tool magazine 30 pos.
- - Coolant through the spindle 40 bar
- - Feeler
- Qualitative Machine Benefits:
- - Laser length/diameter setting
- - Paper filtering system
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
