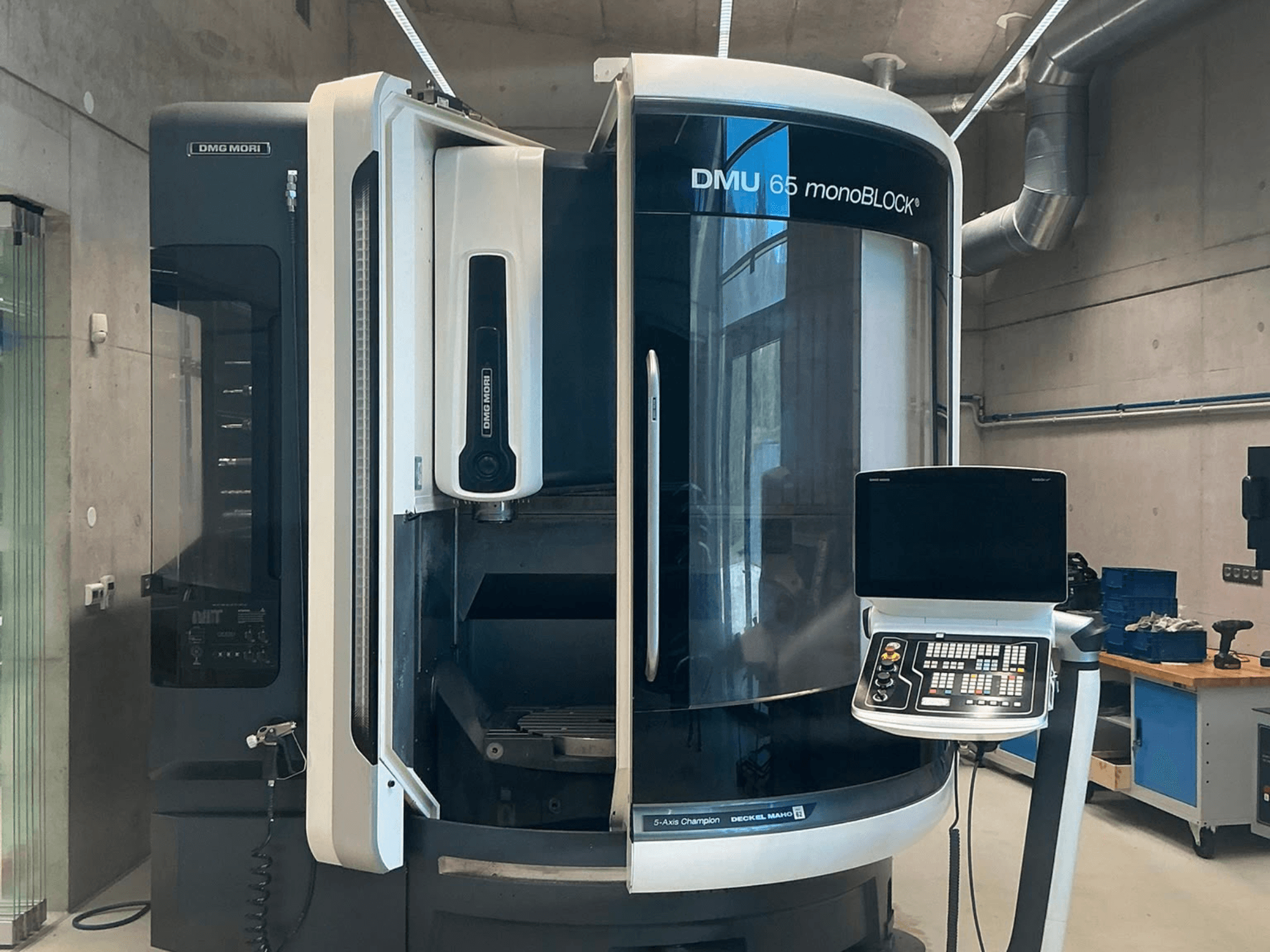

DMG MORI - DMU 65 monoBLOCKCZ-MIL-DMG-2016-00002

• Spindle: power 21 kW (40% ED) / 16 kW (100% ED); torque 111 Nm (40% ED); pull stud DIN 69872

• Table: Rotary table (C-axis) Ø650 mm integrated in rigid table 800 x 650 mm

• Swivel/rotary axes: A-axis +120° / -120° from 0°; C-axis 360°; A-axis torque/holding 3,400 Nm (100% ED); A-axis hydraulic clamping holding torque 6,200 Nm; C-axis torque/holding 2,000 Nm (100% ED)

• Feed/rapid: Rapid traverse X/Y/Z 40 m/min; max feed X/Y/Z 40,000 mm/min; max feed force X 7 kN, Y 13 kN, Z 10 kN (all 100% ED)

• Guideways: Roller linear guides on all linear axes

• Measuring system: Direct, absolute, 0.001 mm resolution, magnetic (for Siemens)

• Control: CELOS with Siemens 840D sl Operate, 21.5" ERGOline multi-touch

• Tool changer/magazine: Automatic with double gripper (vertical); 30-position HSK-A 63 chain magazine

• Coolant/swarf standard: Chip tray with integrated 500 L tank; standard swarf management via chip tray

• Condition: Excellent; only 1,963 spindle hours (machine was used only for making of prototypes)

Additional equipment

• Production package (P-K0398): Chip conveyor with coolant tank, paper band filter, internal coolant through spindle (IKZ) 40 bar / 23 l/min, external coolant 4 bar / 40 l/min, door flushing

• Tool interface (P-M0039): Tool taper adaptation for HSK-A63 (DIN 69893)

• Swarf wash pistol (P-G0004): 2 bar / 40 l/min

• Measuring probe (P-K0263): Heidenhain TS 649 infrared touch probe

• Tool measuring system (P-K0405): Blum laser for vertical tool length and diameter measurement

• Kinematics option (P-K0224): 3D quickSET toolkit for checking/correcting 4/5-axis configuration

• Operation Mode 4 (P-H0038): Manual intervention in work area with open doors under controlled process

• Electronic handwheel (P-H0109): Siemens 840D

• Tooling included
