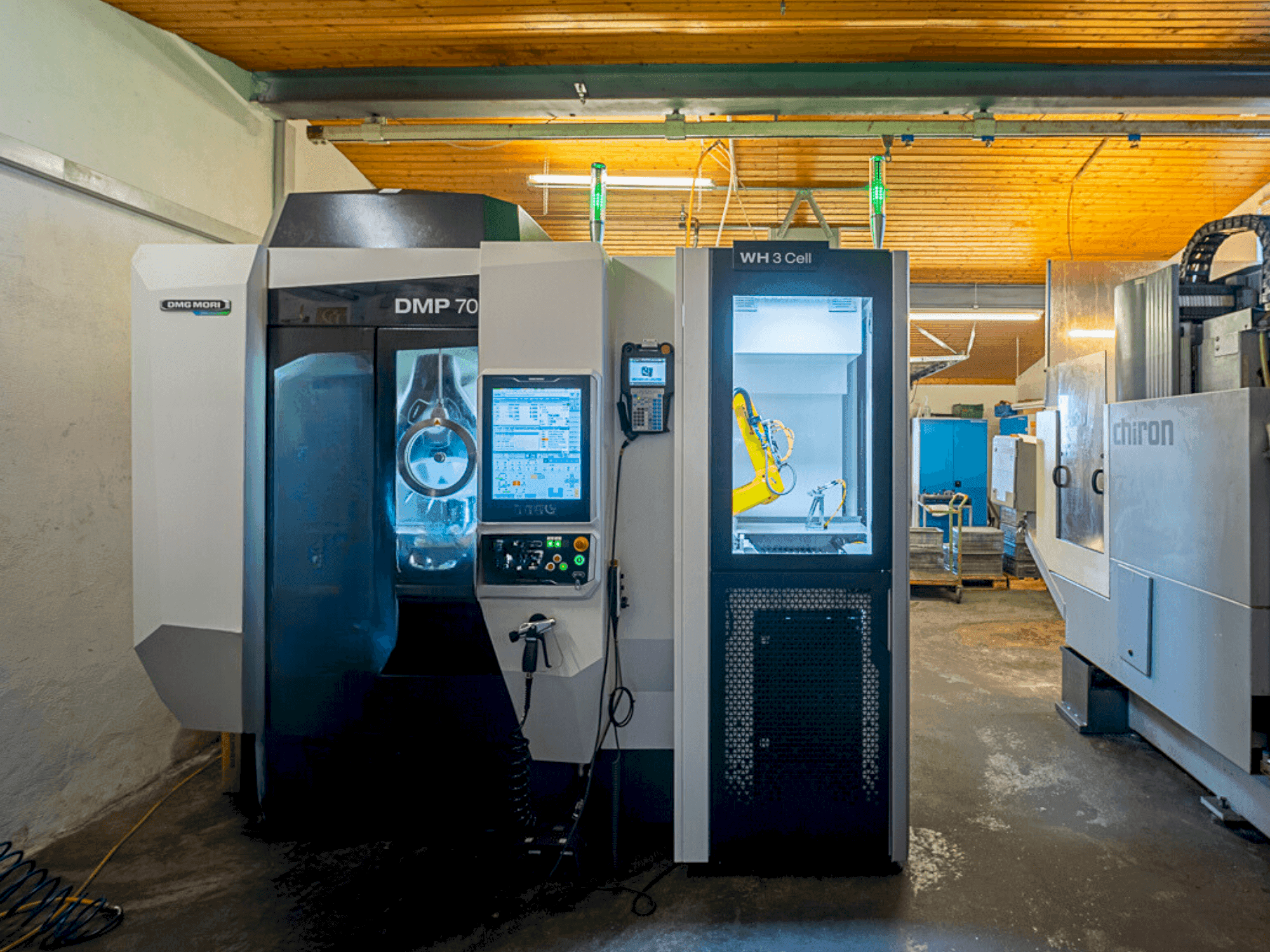

Front view of DMG MORI DMP 70 with WH3  machine

DMG MORI DMP 70 with WH3

DMG MORI - DMP 70 with WH3

2021

Rs. 22,315,550

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI DMP 70 with WH3 Vertical Machining centre was manufactured in the year 2021. It is equipped with a DMG MORI control unit. The machine disposes of a spindle with a speed range of 24000 rpm, a internal cooling system and a chip conveyor. Contact us anytime for further questions.

Overview

  • brand: DMG MORI
  • year: 2021
  • MODEL: DMP 70 with WH3
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-MIL-DMG-2021-00002

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: 840d Solutionline

Main drive

  • Number of spindles: 1
  • Spindle speed range: 20 to 24000 rpm 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 700 MM
  • Y-AXIS Movement: 420 MM
  • Z-AXIS Movement: 380 MM

Table

  • Outer length: 840 mm
  • Outer width: 420 mm

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Tool holder ISO7388-2 J30
    • - Tool changer 25 places
    • - Additional tank 600l
    • - Oil and emulsion mist separator

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Internal cooling system with 40 bar.
        • - Paper belt filter.
        • - Ikz 40; 40 bar/ 23 l/min.
        • - Torque max. 78 nm.
        • - Operating mode 4.
        • - Blast air through spindle center.
        • - Electronic handwheel.
        • - Special 3-fold gripper unit type schunk pgn plus p64-1.
        • - Workpiece loading and unloading system qh 3 cell with 6-axis industrial robot.
        • - Blum efficiency package: tc52 infrared touch probe

      Extra information

      • - Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
