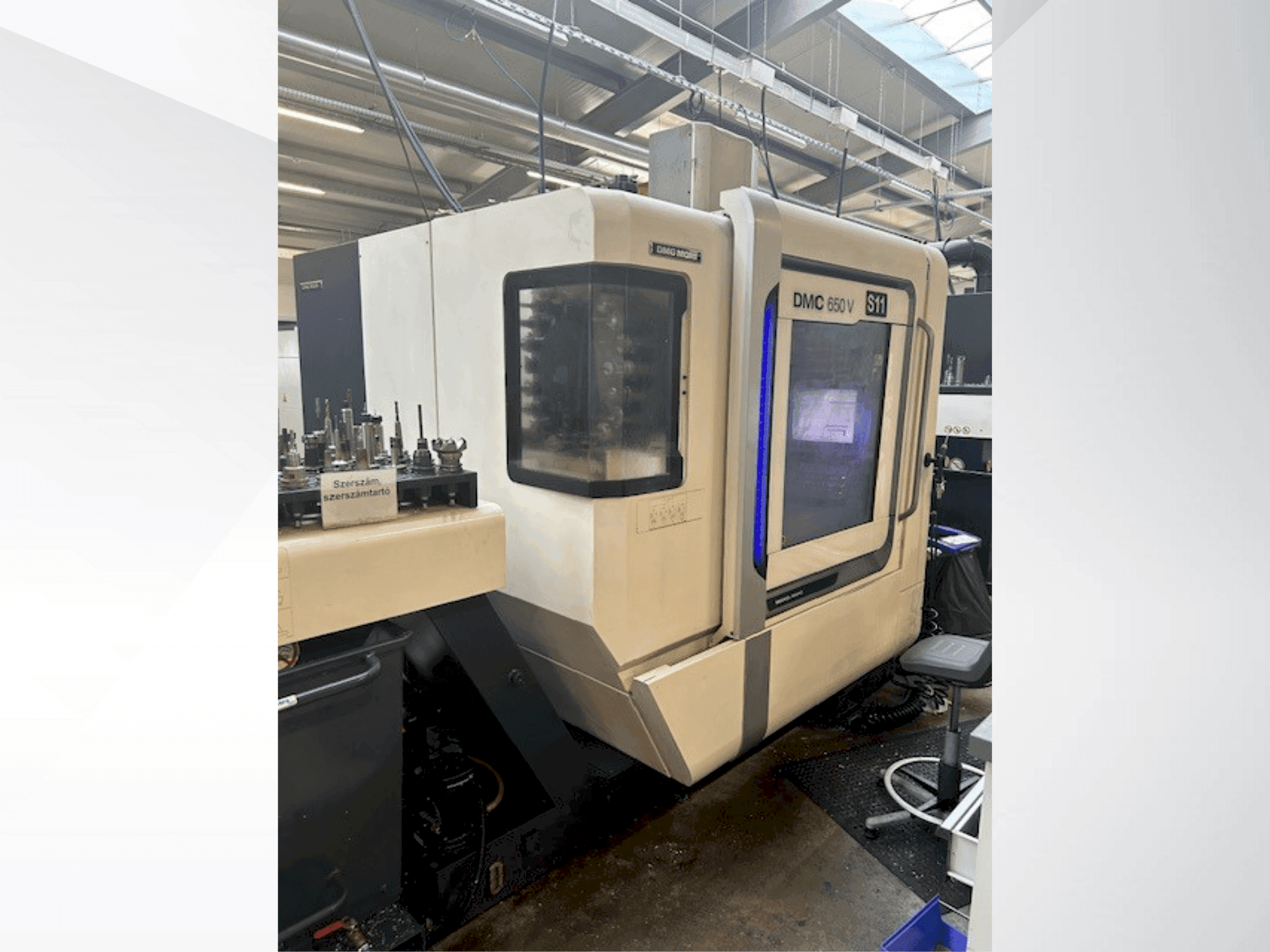

Front view of DMG MORI DMC 650 V  machine

DMG MORI - DMC 650 VHU-MIL-DMG-2014-00002

Rs. 4,813,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DMG MORI DMC 650 V was manufactured in 2014. A vertical machining centre featuring a Heidenhain TNC 640 control, it offers a robust toolchanger with 20 SK40 slots and a rapid feed of 36 m/min. The spindle operates at speeds up to 14,000 rpm, supported by an internal coolant supply at 20 Bar. Ideal for precision tasks with its direct measuring system in X, Y, Z. Contact us for more information about this machine.

Overview

  • brand: DMG MORI
  • year: 2014
  • MODEL: DMC 650 V
  • production hours: 6355
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 650 V

Control Unit

  • Brand: HEIDENHAIN

Main drive

  • Number of axis: 3

Movement

  • X-AXIS Movement: 650 mm
  • X-AXIS Rapid traverse: 36 m/min
  • Y-AXIS Movement: 520 mm
  • Y-AXIS Rapid traverse: 36 m/min
  • Z-AXIS Movement: 475 mm
  • Z-AXIS Rapid traverse: 36 m/min

Table

  • Outer length: 900 mm
  • Outer width: 570 mm

Turret

  • Tool taper: ISO40/SK40 DIN69871

    Additional equipment

    • - Chip conveyor and flushing working area
    • - Spray gun for swarf removal
    • - Infrared measuring probe TS649
    • - Direct measuring system X, Y, Z

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tool clamping: din69872
        • - Toolchanger: 20 places sk40
        • - Coolant-air blast change-over
        • - Internal coolant supply with rotary inlet, 20 bar, cartridge filter, 245-liter tank capacity
      • Qualitative Machine Benefits:
        • - Manual control panel
        • - Design version white

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
