DMG MORI DMC 635V ecoline Vertical Machining Centre

Show in original language

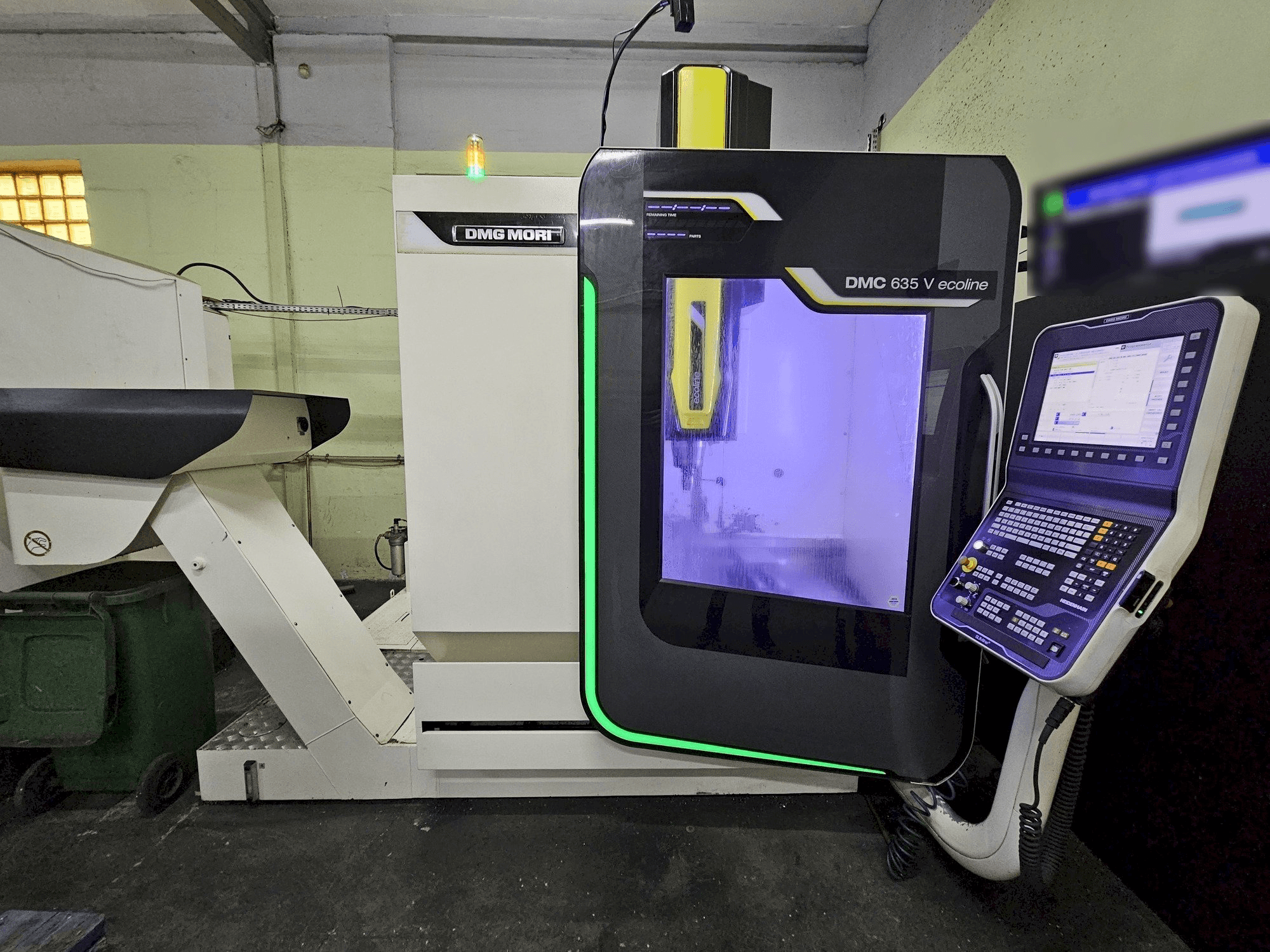

This DMG MORI DMC 635V ecoline Vertical Machining Centre was manufactured in 2014 in Poland. It has 3 axes with a X-travel of 635mm. Equipped with a tool magazine of 20 tool it can handle a max. tool weight of 6 kg, a max. tool length of 300 mm and a max. tool diameter of 80 mm. The table size is 790 x 590 mm with a max. load of 600 kg. It runs with a SK40 tool holder and a spindle speed of 12000 rpm. The machine has operated 63868 power on hours and 33482 spindle hours. It comes with chip conveyor and cooling through spindle. See photo and video gallery for more impressions.

Overview

brand: DMG MORI
year: 2014
MODEL: DMC 635V ecoline
production hours: 33482
application type: Milling
Location: Poland
machine type: Machining centers (vertical)
availability: Sold

Technical Information - DMG MORI DMC 635V ecoline

General Data

Machine weight: 3900 kg

Controller

Brand: DMG MORI
Model: SLMline with HEIDENHAIN TNC 620

Main drive

Spindle speed range: max. 12000 rpm 1/MIN

Movement

X-AXIS Movement: 635 mm
X-AXIS Rapid traverse: 30 m/min
X-AXIS Accuracy: 0.001
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 30 m/min
Y-AXIS Accuracy: 0.001
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 30 m/min
Z-AXIS Accuracy: 0.001

Table

Outer length: 790 mm
Outer width: 560 mm
Table load: 600 kg

Tools

Slots in storage: 20
Max weight: max. 6 kg
Max tool diameter: max. 80 mm
Max tool length: max. 300 mm
Type of tool holder: SK40

Additional equipment

- Cooling through the spindle
- Chip conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X-axis: 635 mm // y-axis: 510 mm // z-axis: 460 mm
- - Speed range max. 12000 rpm
- - Rapid traverse in x / y / z: 30 m/min
- - Positioning accuracy, resolution in x / y / z: 0. 001 mm
- - Number of tools: 20 pcs
- - Tool weight max. 6 kg // tool length max: 300 mm // tool diameter max: 80 mm
- - Chip-to-chip time: 5 sec
- - Table: 790 x 560 mm
- - Table height (upper edge of table): 720 mm
- - Table load (assembly weight): 600 kg
Qualitative Machine Benefits:
- - Power on: 63868h
- - Spindle: 33482h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
