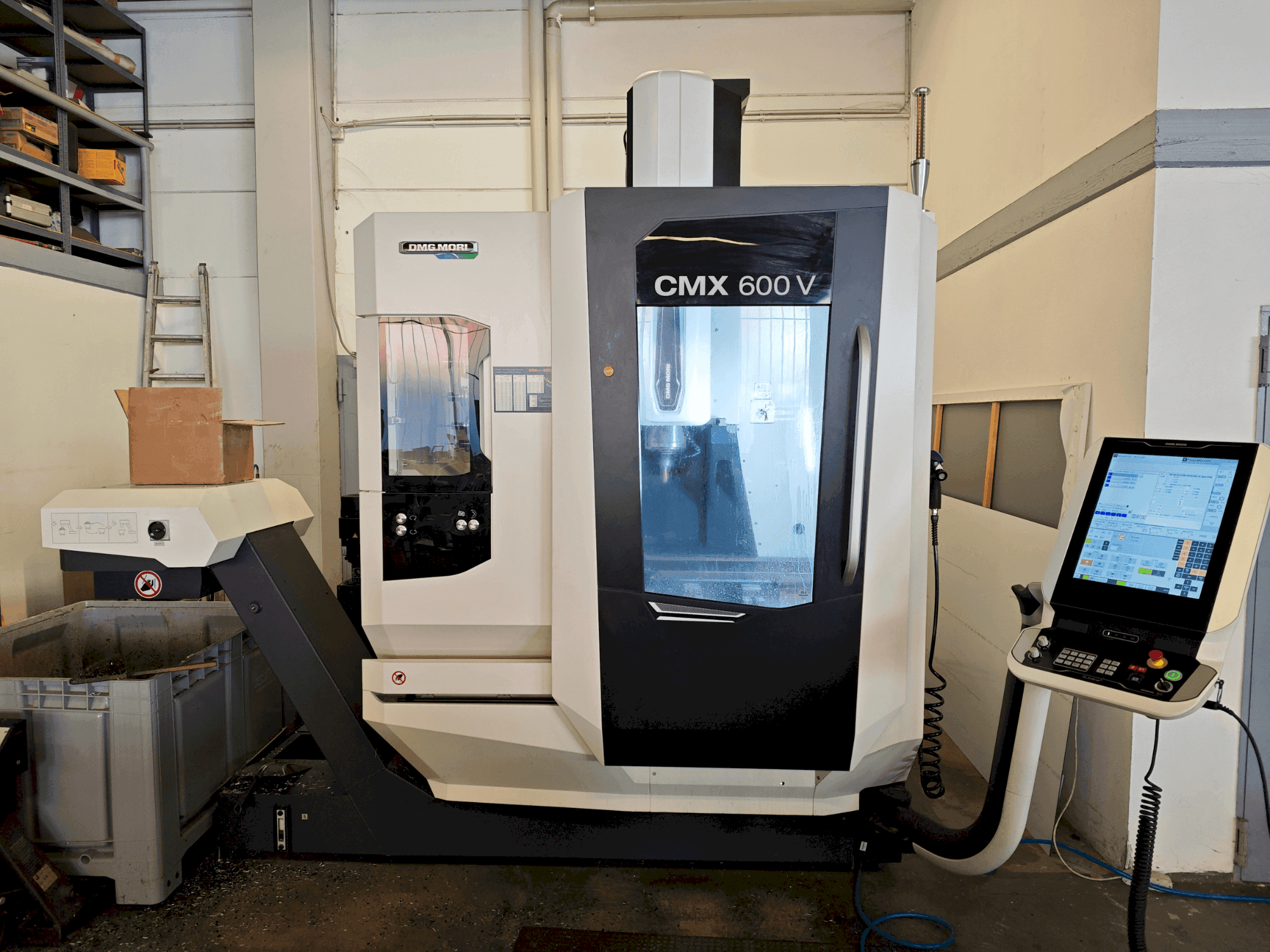

Front view of DMG MORI CMX 600 V machine
Front view of DMG MORI CMX 600 V machine

DMG - MORI CMX 600 VDE-MIL-DMG-2022-00004

Rs. 11,173,300
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis DMG MORI CMX 600 V was manufactured in 2022. It features a vertical machining center with a travel path of 600 x 560 x 510 mm and a rapid traverse rate of 30 m/min. The machine includes a tool magazine for 60 tools, a spindle speed range up to 15,000 rpm, and an internal coolant supply at 20 bar. Ideal for precision machining with its direct measuring system and robust tool holder SK40. Contact us for more information about this machine.

Overview

  • brand: DMG
  • year: 2022
  • MODEL: MORI CMX 600 V
  • production hours: 1401
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI CMX 600 V

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 620

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 600 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 560 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 510 mm
  • Z-AXIS Rapid traverse: 30 m/min

Tools

  • Type of tool holder: SK40

Media

  • Chip conveyor: Yes

    Control Unit

    • Brand: HEIDENHAIN
    • Model: TNC 620

    Main drive

    • Number of axis: 4

    Movement

    • X-AXIS Movement: 600 mm
    • X-AXIS Rapid traverse: 30 m/min
    • Y-AXIS Movement: 560 mm
    • Y-AXIS Rapid traverse: 30 m/min
    • Z-AXIS Movement: 510 mm
    • Z-AXIS Rapid traverse: 30 m/min

    Tools

    • Type of tool holder: SK40

    Media

    • Chip conveyor: Yes

      Additional equipment

      • - InlineMASTER® spindle with 15000 rpm
      • - RotoClear option (rotating viewing window + automatic magazine door)
      • - Warranty: 36 months with no hourly limit

      Additional Information

        Machine Benefits

        • Technical Machine Benefits:
          • - Internal coolant supply with 20 bar
          • - Dual cartridge filter for coolant
          • - Chip conveyor (scraper chain) with tank capacity
          • - Oil and emulsion mist separator
          • - 4-color signal light
          • - Tool holder: sk40 according to din 69871, with big plus interface
          • - Tool clamping: according to din 69872
          • - Tool magazine for 60 tools (option includes chain type with servo drive and loading/unloading during automatic operation)
          • - Tool magazine for 30 tools with double gripper

        Extra information

        • - Air-blast cleaning through the spindle center, activated via M function with minimal oil consumption Renishaw length gauge package for HEIDENHAIN control Digital Manufacturing Package: iOTconnector, Machine Data Connector (MDC), and NETservice for online services and remote maintenance support

      *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

      Your account manager:

      Sergi Guardia

      Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

      get in contact

      Payment Terms

      • Payment in advance

      • Asset Financing
