SMEC - MCV 5500DE-MIL-SME-2022-00001

Rs. 6,273,244
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

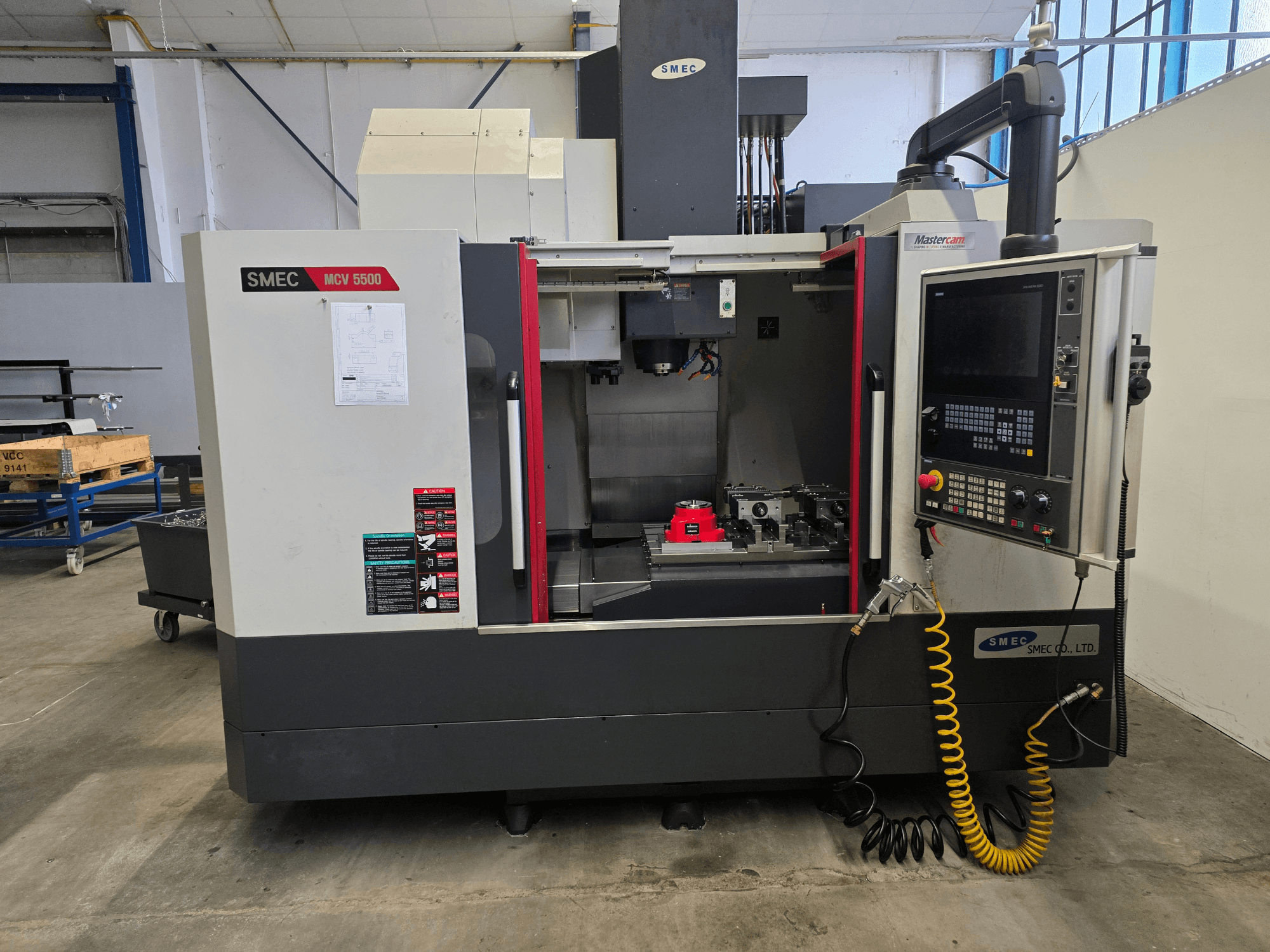

This 3-axis SMEC MCV 5500 was manufactured in 2022. It features an X-axis travel of 1050 mm, Y-axis travel of 550 mm, and Z-axis travel of 520 mm. The machine includes a robust table size of 1200 x 540 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the SMEC MCV 5500 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: SMEC
  • year: 2022
  • MODEL: MCV 5500
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - SMEC MCV 5500

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 828D

Dimensions

  • Machine Height: 2778 mm
  • Machine Length: 3635 mm
  • Machine Weight: 6700 kg
  • Machine Width: 2977 mm
  • Table Length: 1200 mm
  • Table Load: 800 kg
  • Table Width: 540 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1050 mm
  • Y-axis Travel: 550 mm
  • Z-axis Travel: 520 mm

Technical Specification

  • Spindle Power: 22 kW
  • Spindle Speed: 12000 RPM
  • Through-spindle Coolant: Yes
  • Tool Stations: 30

Additional Information

- CNC Control: Siemens SINUMERIK 828D incl. OPERATE and ShopMill

- T-Slot Size: 4 x 18H8 mm

- T-Slot Distance: 125 mm

- Distance Spindle Center to Column: 580 mm

- Distance Table to Spindle Nose: 130-650 mm

- Ball Screw X-Axis: Ø 40 x 12 mm

- Ball Screw Y-Axis: Ø 40 x 12 mm

- Ball Screw Z-Axis: Ø 40 x 10 mm

- Feed Motor X-Axis: 3 kW

- Feed Motor Y-Axis: 3 kW

- Feed Motor Z-Axis: 3 kW

- Rapid Traverse X/Y/Z: 36/36/30 m/min

- Feed Rate X/Y/Z: 1-15,000 mm/min

- Spindle Motor: 22 kW (30 min) / 18.5 kW (Cont.)

- Max. Spindle Torque: 141 Nm

- Spindle Taper: BBT 40

- Tool Storage Capacity: 30 positions

- Max. Tool Weight: 8 kg

- Max. Tool Length: 300 mm

- Max. Tool Diameter: Ø 80 mm (Ø 125 mm with adjacent empty pockets)

- Tool Change Time: 1.6 s

- Chip-to-Chip Time: 5 s

- Coolant System Tank Capacity: 365 L

- Coolant Flow Rate: 29.1 L/min

- Internal Coolant Pressure (IKZ): 20 bar

- Hydraulic System Capacity: 3.9 L

- Hydraulic System Max. Pressure: 9 bar

- Max. Power Requirement: 32 kVA

- Voltage: 400 V

- Compressed Air Connection: 6 bar

- Machine Dimensions (W x D x H): 3635 mm (incl. chip conveyor) x 2977 mm x 2778 mm

- Additional Equipment:

* Hinge belt side chip conveyor with rollers

* Oil skimmer with endless belt

* Coolant unit with coolant gun and bed flushing

* Spindle oil cooling system

* Air gun

* DXF Reader

* Electronic handwheel

* 3-color status signal light

* Work area lighting

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
