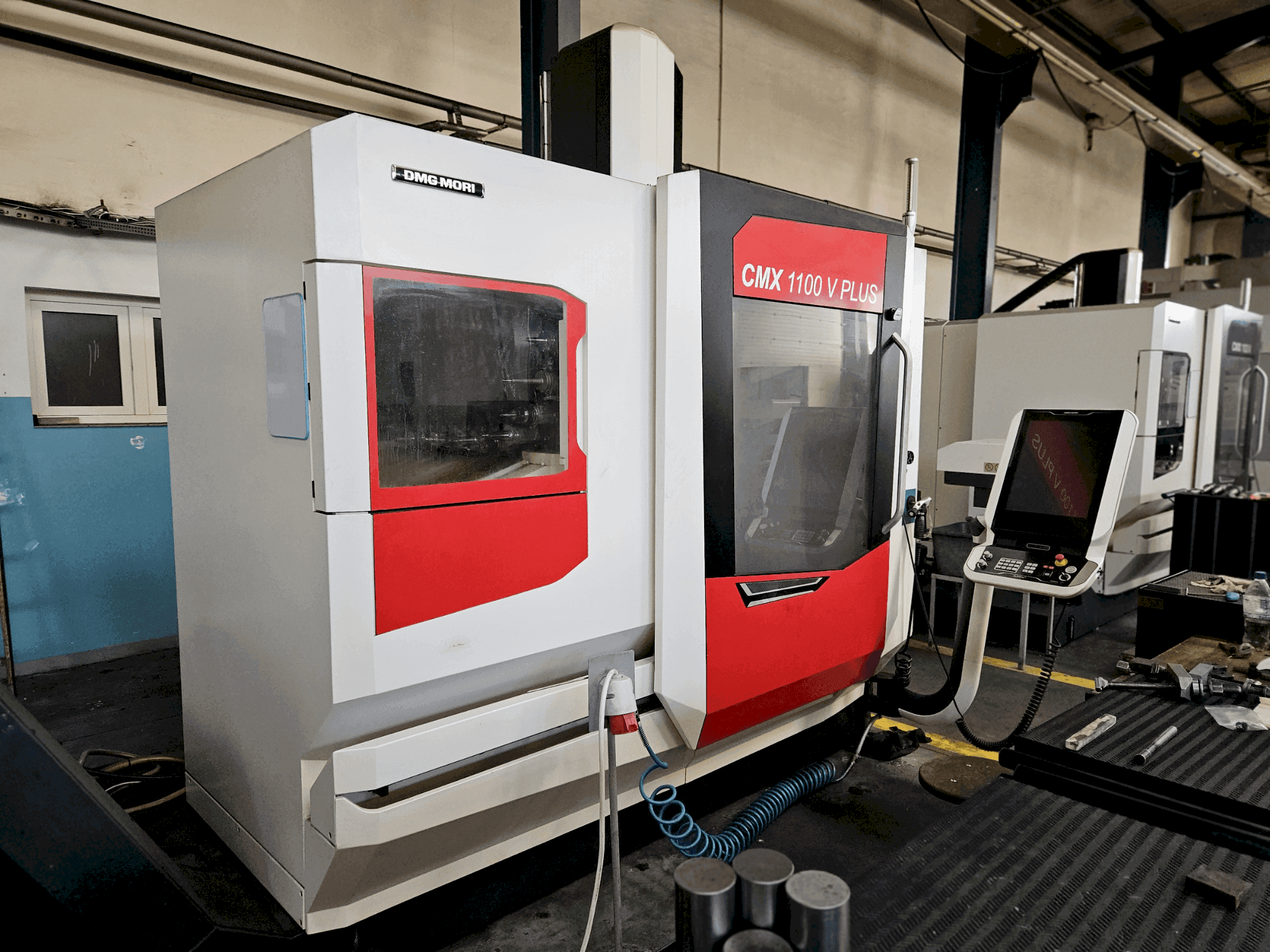

Front view of DMG MORI CMX 1100 V  machine

DMG MORI - CMX 1100 VPL-MIL-DMG-2019-00002

Rs. 6,898,200
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DMG MORI CMX 1100 V was manufactured in 2019 and features a robust C-Frame design. It offers a spindle speed range of 20 to 12000 rpm and a power output of 13 kW. The machine has a large table clamping surface of 1400 x 560 mm and can handle a maximum load of 1000 kg. Ideal for precision machining, buy this DMG MORI CMX 1100 V vertical machining centre. The machine is official DMG's colours black and white, the red part is a foil which can be easyly removed. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: DMG MORI
  • year: 2019
  • MODEL: CMX 1100 V
  • production hours: 13143
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - DMG MORI CMX 1100 V

Control Unit

  • Model: 19″ DMG MORI SLIMline with HEIDENHAIN

Main drive

  • Spindle speed range: 20-12000 1/MIN
  • Spindle motor power: 13 kW (40% ED), 9 kW (100% ED)
  • Tool taper: SK40 DIN69871

Movement

  • X-AXIS Movement: 1100 mm
  • Y-AXIS Movement: 560 mm
  • Z-AXIS Movement: 510 mm

Table

  • Outer length: 1400 mm
  • Outer width: 560 mm
  • Min distance between vertical spindle and table: 120 mm
  • Max distance between vertical spindle and table: 630 mm
  • Table load: 1000 kg

Clamping unit

  • Clamping force: 9 kN

    Additional equipment

    • - Tool Magazine: 30-position chain magazine with double gripper
    • - Internal coolant supply at 12 bar
    • - Machine Protection Control: MPC 2.0
    • - Tool Probe with calibration pin for the tool probe
    • - Handwheel
    • - Coolan Flushing Gun
    • - 4-color signal lamp
    • - Scraper-type chip conveyor with a 250-liter tank (left side)
    • - Work area flushing with M function
    • - Automatic roof for the work area (controlled by M function)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - C-frame mechanical design
        • - Torque: 83 nm (40% ed), 57 nm (100% ed)
        • - Direct measuring system for x, y, z axes: includes linear scales with air purge for the measurement system
        • - Working hours: power on 13143h, spindle: 5404h

      Extra information

      • - The machine is safely stored in a warehouse. Before disassembly, the machine was thoroughly inspected by the service team. A service report with geometry measurements is available. The equipment includes a tool probe, handwheel, chip flushing gun, and calibration pin for the tool measurement probe. The workpiece probe is not included.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
