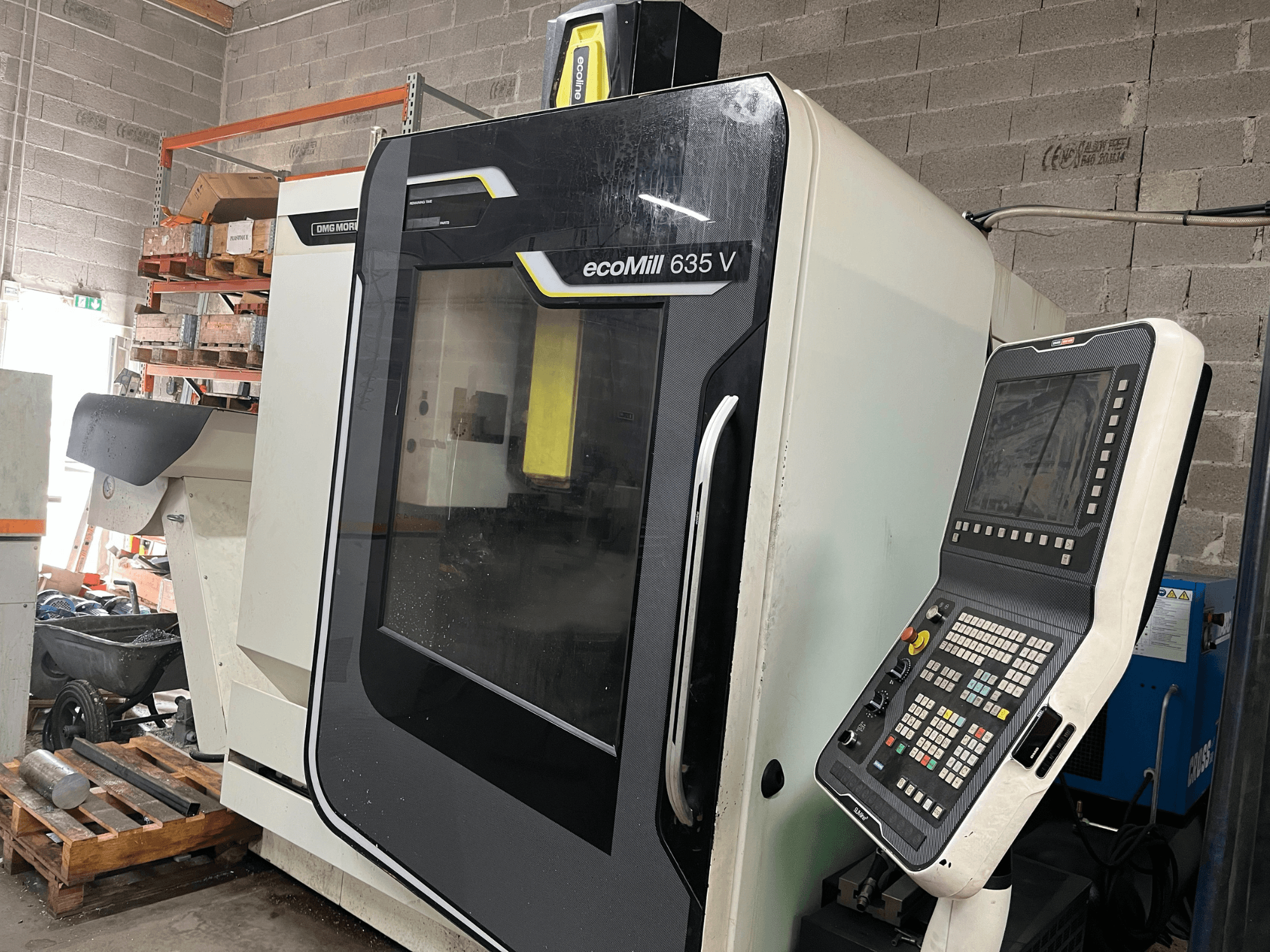

This 3s DMG MORI 635V vertical machining centre was manufactured in 2013. It features travels of 635 mm in the X-axis, 510 mm in the Y-axis, and 460 mm in the Z-axis, with a rapid traverse of 30 m/min. The spindle speed ranges from 20 to 12,000 rpm, and it includes a 20-station tool changer. Consider the opportunity to buy this DMG MORI 635V vertical machining centre. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2013
- MODEL: 635V
- production hours: 8654
- application type: Milling
- Location: France
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI 635V
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D SL
Movement
- Number of Axes: 3
- X-axis Travel: 635 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 460 mm
Technical Specification
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Rapid traverse: 30 m/min
Tool clamping: per DIN 69872
Tool changer: 20-station SK40 (disc-type magazine with double gripper)
Table dimensions: 560 × 790 mm
PROGRESSline & Planonlight: Display of production time and remaining number of parts
DMG Netservice: Client installation on external PC
Options included:
Extended tool magazine: 30 stations (chain-type with pockets and double gripper)
Measuring system: Direct displacement measuring system for X, Y, Z axes with pressurization
Hours:
Power-on: 21,788 h
Spindle: 8,654 h
Additional equipment
Renishaw probe kit:
OMP40-2 measuring probe (optical transmission)
OTS wireless tool setting probe
OMI-2T optical transmission module
Chip disposal package:
Scraper-type chip conveyor (discharge height: 950 mm)
185-litre tank
Cleaning spray gun
4-colour signal lamp
Control option: Electronic handwheel
Electrical: 20 kVA transformer
Tooling: Sandvik SK40 tooling kit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
