- ➤ Used DMG M1 - Machining Center For Sale | gindumac.com

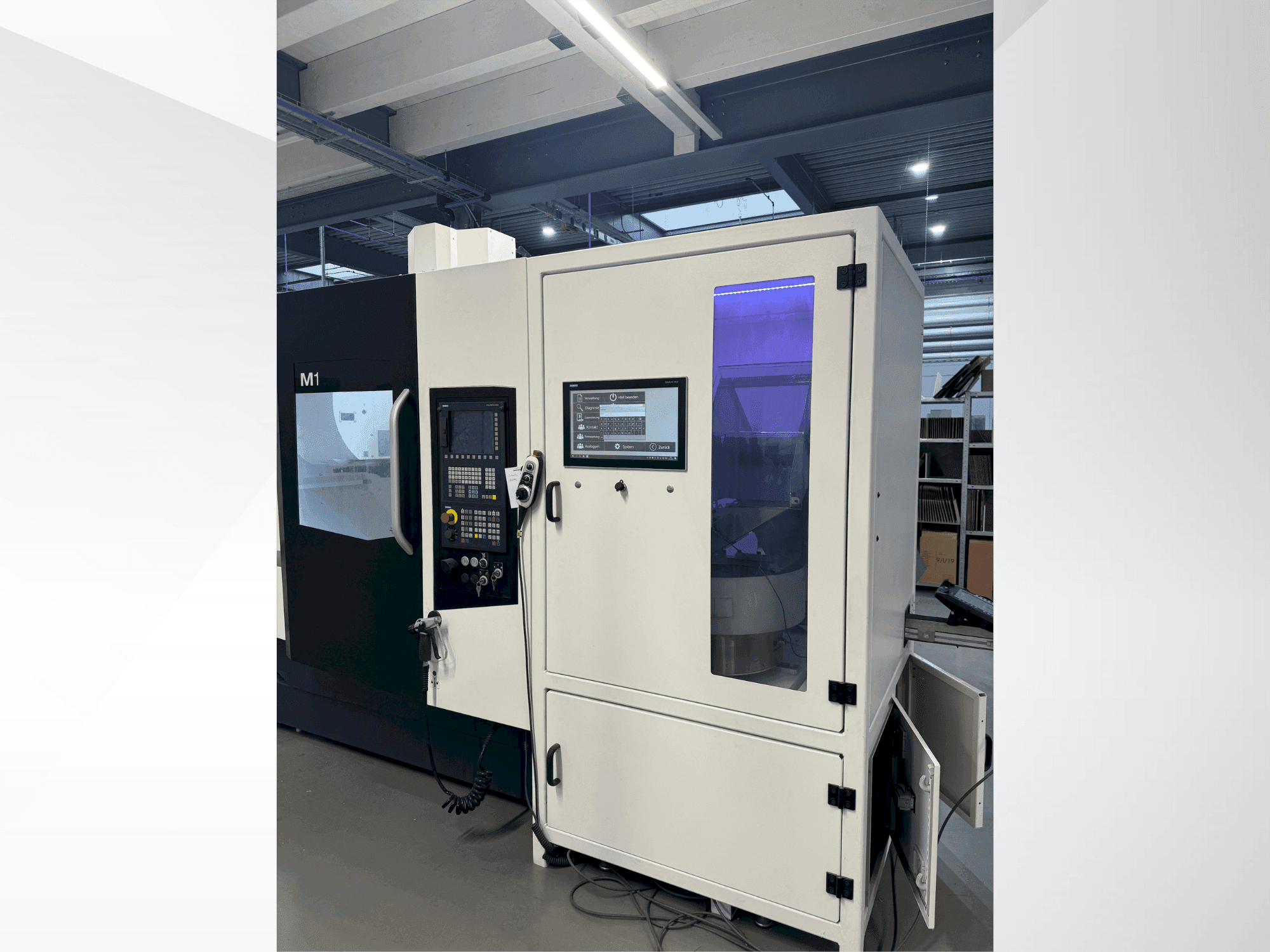

This 3-axis DMG M1 vertical machining center was manufactured in 2022. It features a Siemens SINUMERIK One 828D control, a spindle speed of 12,000 rpm, and a table size of 850 x 650 mm supporting up to 600 kg. Equipped with a 24-place tool changer and both internal and external cooling systems, it ensures precise milling operations. If you are looking to get high-quality milling capabilities consider the DMG M1 machine we have for sale. Contact us for more information.
Overview
- brand: DMG
- year: 2022
- MODEL: M1
- production hours: 123
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG M1
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK One 828D
Dimensions
- Table Length: 850 mm
- Table Load: 600 kg
- Table Width: 650 mm
Movement
- X-axis Travel: 550 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Technical Specification
- Number of Tools: 24
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Automation interface with 6-axis robot, high dynamics
- Siemens PLC and HMI with safety module
- IDS industrial camera with Halcon Vision integration
Machine Benefits
Qualitative Machine Benefits
- Schunk clamping technology
Technical Machine Benefits
- Operating unit: handwheel + touch panel
- Spindle cooling: water-cooled, temperature monitoring
- Cooling lubricant: internal & external cooling, 20 bar
- Chip conveyor: left-sided, belt conveyor
- Pneumatic system: integrated with external pressure gauge field
- Led work area lighting
- High-precision 3-axis cnc machine with automation preparation
- Compact footprint
- Ideal for precise milling, manual or automated
- Renishaw tool and workpiece probe
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
