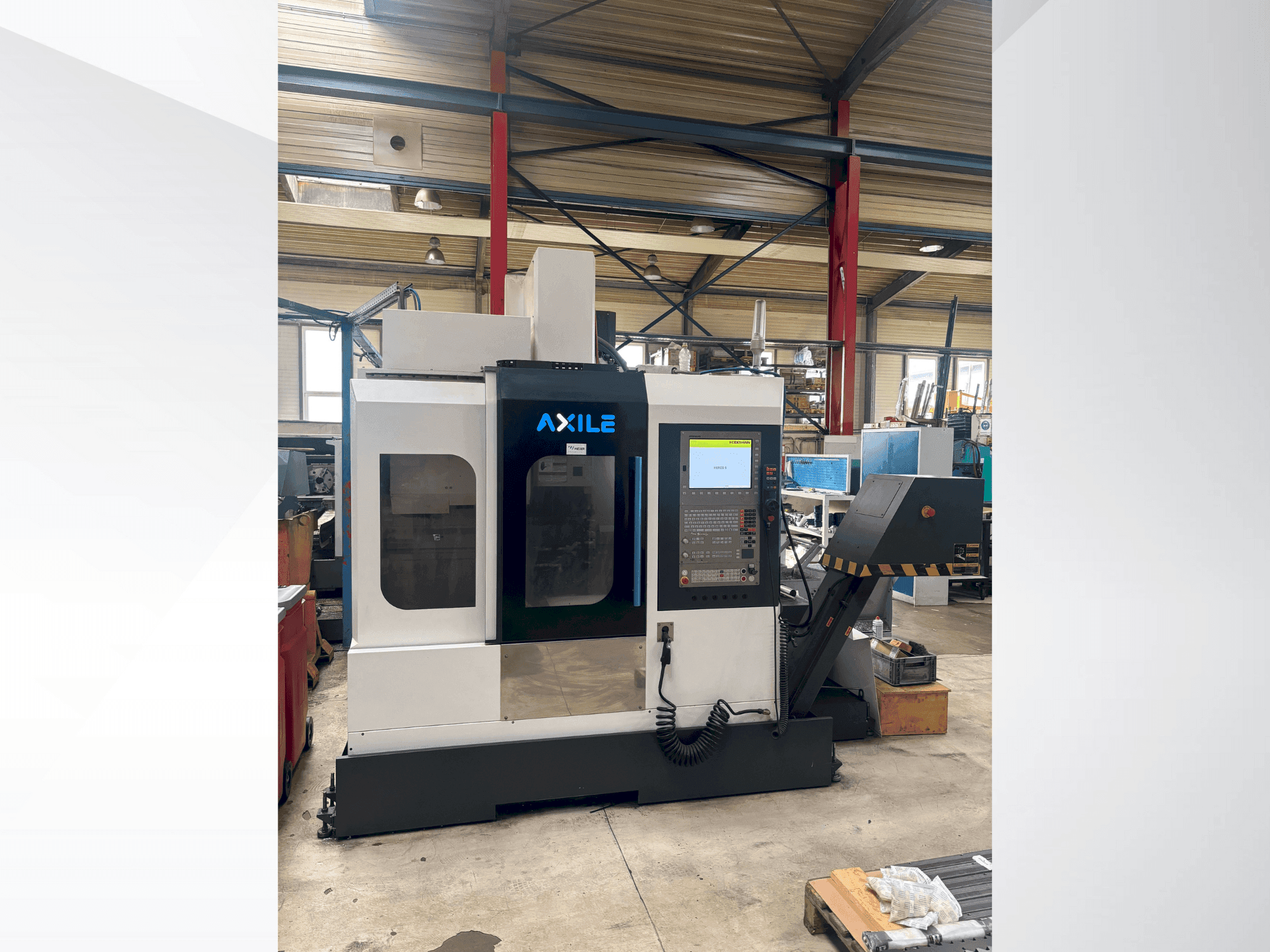

This 3-axis AXILE V4 vertical machining center was manufactured in 2019. It features a robust table size of 770 × 410 mm with a maximum load capacity of 400 kg. Equipped with a high-speed ISO40 spindle capable of 12,000 rpm, it ensures efficient machining. The machine includes a 30/32 tool arm changer and a rapid traverse rate of 36 m/min, enhancing productivity. Consider the opportunity to buy this AXILE V4 vertical machining center. Contact us for more information.
Overview
- brand: AXILE
- year: 2019
- MODEL: V4
- production hours: 2975
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - AXILE V4
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Depth: 3195 mm
- Machine Height: 2720 mm
- Machine Weight: 4350 kg
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 450 mm
Additional Information
Additional equipment
- T-slots: 16 × 100 mm (4 pieces)
- Speed: Standard: 12000 rpm /Optional: 18000 rpm or 24000 rpm
- Motor power: Heidenhain: 10/12.5 kW /Siemens: 10.5/15.8 kW /Fanuc: 11/15 kW/ Optional: 20 kW
- Axial Accuracy Control (AAC) / Spindle Vibration Supervision (SVS) / Tool-tip Positioning Control (TPC)
- Standard: 30 or 32 tools/ Optional: 40 tools
- Tool holder: BT / CAT / DIN 40 / HSK 63 /Change time (tool-to-tool): 1.55 s (50 Hz) / 1.31 s (60 Hz)
- Max. Tool dimensions: Diameter: Ø75 mm (Ø125 mm with empty neighboring compartment) / Length: 300 mm /Weight: 7 kg
- Tool changer (ATC) Type: Arm change
- ISO40 in-line spindle (12000 rpm, with CTS function) / Spindle oil cooler / Arm tool changer (30/32 tools)
- Coolant tank (20 bar) / Scraper chip conveyor / Linear encoder for all 3 axes / Backwash device / Flushing gun / Heat exchanger / 4th axis prepared (switching circuit)
Machine Benefits
Technical Machine Benefits
- Table: size: 770 × 410 mm / height: 820 mm / max. Load: 400 kg
- Accuracy: repeat accuracy (x/y/z): ±0. 01 mm / positioning accuracy: 0. 01 mm over 300 mm / feed speed (rapid traverse): 36 m/min (x/y/z)
- Guide rails: linear guideways (35 mm ball) x: 300 mm distance/ y: 620 mm /distance z: 400 mm/ distance
- Axis drive: recirculating ball screws: Ø32 × p12 × c3 (for x, y, z)
- Max. Load weight: 160 kg (standard) / 200 kg (optional)
- Floor area: 3195 × 1910 mm
- Spindle center to z-axis guard: 475 mm/spindle nose to table: 100-550 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
