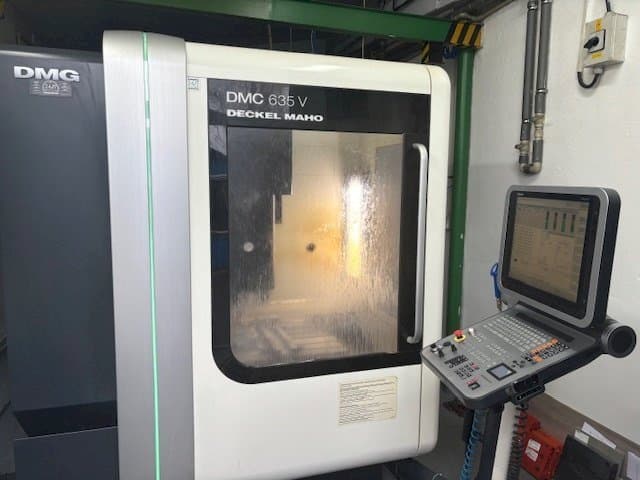

DMG DMC 635V Vertical Machining center

Show in original language

This DMG DMC 635V Vertical Machining center was manufactured in the year 2008 in Germany and has 44725 production hours, of which 32319 are spindle hours. It is equipped with a HEIDENHAIN iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 14000 rpm.

Overview

brand: DMG
year: 2008
MODEL: DMC 635V
production hours: 44725
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMC 635V

General Data

Measurements width: 2954 mm
Measurements depth: 2757 mm
Measurements height: 2935 mm

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 635 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 790 mm
Outer width: 560 mm

Tools

Slots in storage: 20
Type of tool holder: SK 40

Additional Information

Machine history

Industries: Molds

Machine Benefits

Technical Machine Benefits:
- - Optional spindle with increase rpm 14. 000 and cooling main drive unit
- - Direct measurement x/y/z
- - Spindle motor power 13/9 kw
- - Outer cooling water/air
- - Tool setter heidenhain tt130
- - Infra probe heidenhain ts649
- - Tool holders
- - Wash gun
- - Electronic handwheel
Qualitative Machine Benefits:
- - 11/2023 - new spindle installed, accuracy protocol available
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
