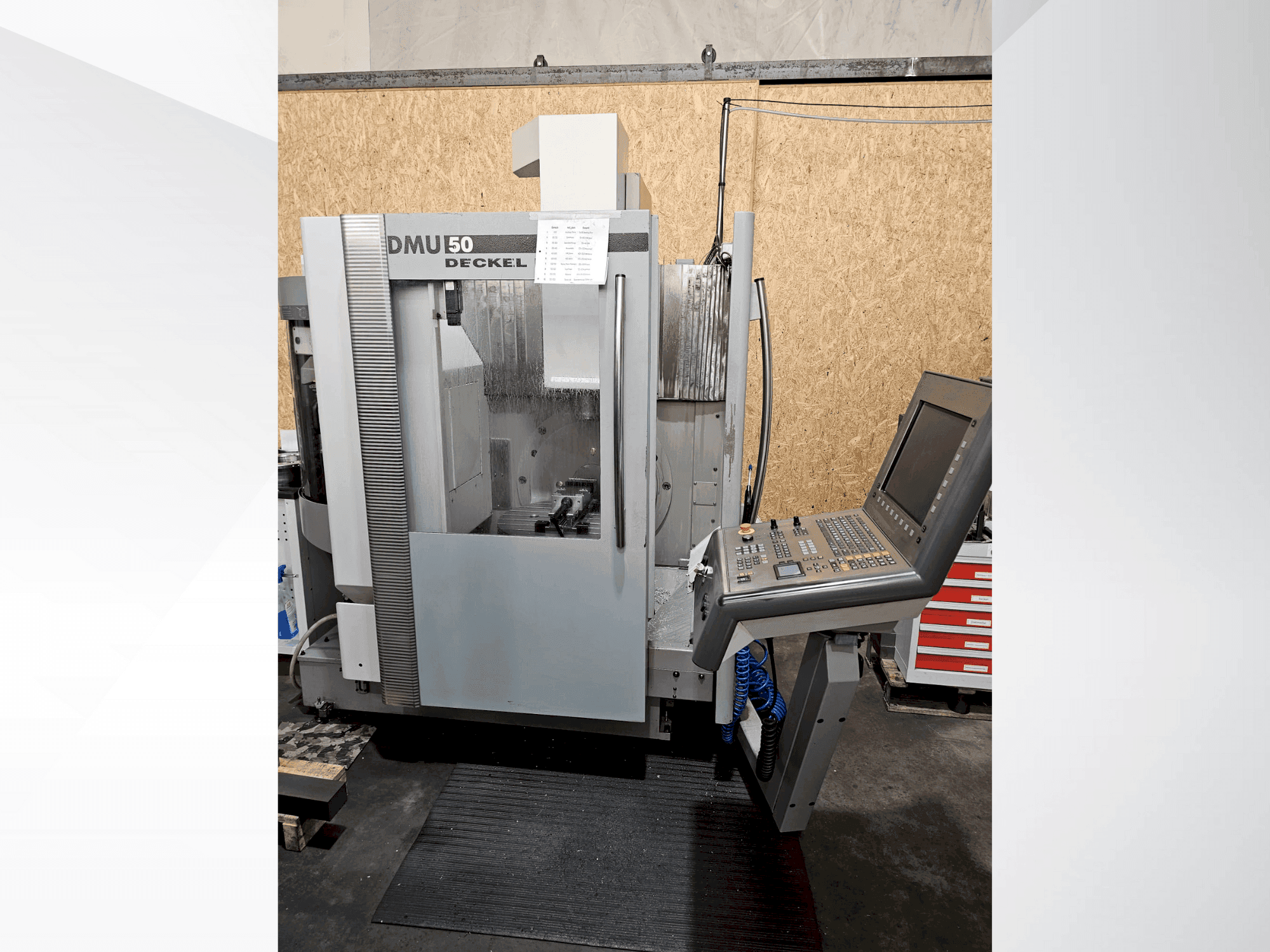

DMG DECKEL MAHO - DMU 50DE-MIL-DMG-2005-00002

Additional equipment

• Tool Positions: 16 / Max. Tool Weight: 6 kg / Max. Tool Length: 300 mm
• Max. Tool Diameter: Without adjacent tools: 130 mm / With adjacent tools: 80 mm
• Total Power Requirement: 17 kVA
• No chip conveyor included / No automatic measuring probe included / No tools included

Machine Benefits

Qualitative Machine Benefits

• Low spindle hours and power-on hours.
• Never used in series production; operated with care and proper procedures.
• Warm-up programs and maintenance routines followed for optimal performance.

Technical Machine Benefits

• Torque: 57 / 82 nm / rapid traverse (x/y/z): 12 m/min /feed rate: 10000 mm/min
• Table clamping surface: 630 x 500 mm
• Swivel range: -5 / +110°
• Max. Table load: 200 kg
• T-slots: 14 h7 / t-slot spacing: 63 mm
• C-axis rotation: +/- 360°
• Complete x-axis bearing overhaul including ball screw and bearing assembly. / various hydraulic components overhauled. / tool changer readjusted and sensor system replaced.
• New door switch installed. / new discs installed (with some chip debris affecting them). / new coolant pump installed. / new screen installed. / new handwheel hr410 installed.
• Machine is 5-axis machine with 3+2 configuration
