DMG DECKEL MAHO - DMC 64V linearPL-MIL-DMG-2007-00002

Name: DMG DECKEL MAHO DMC 64V linear
Brand: DMG DECKEL MAHO
SKU: PL-MIL-DMG-2007-00002
Price: 3700535 INR
Availability: InStock

Rs. 3,700,535

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG DECKEL MAHO DMC 64V linear | Machining Center

Show in original language

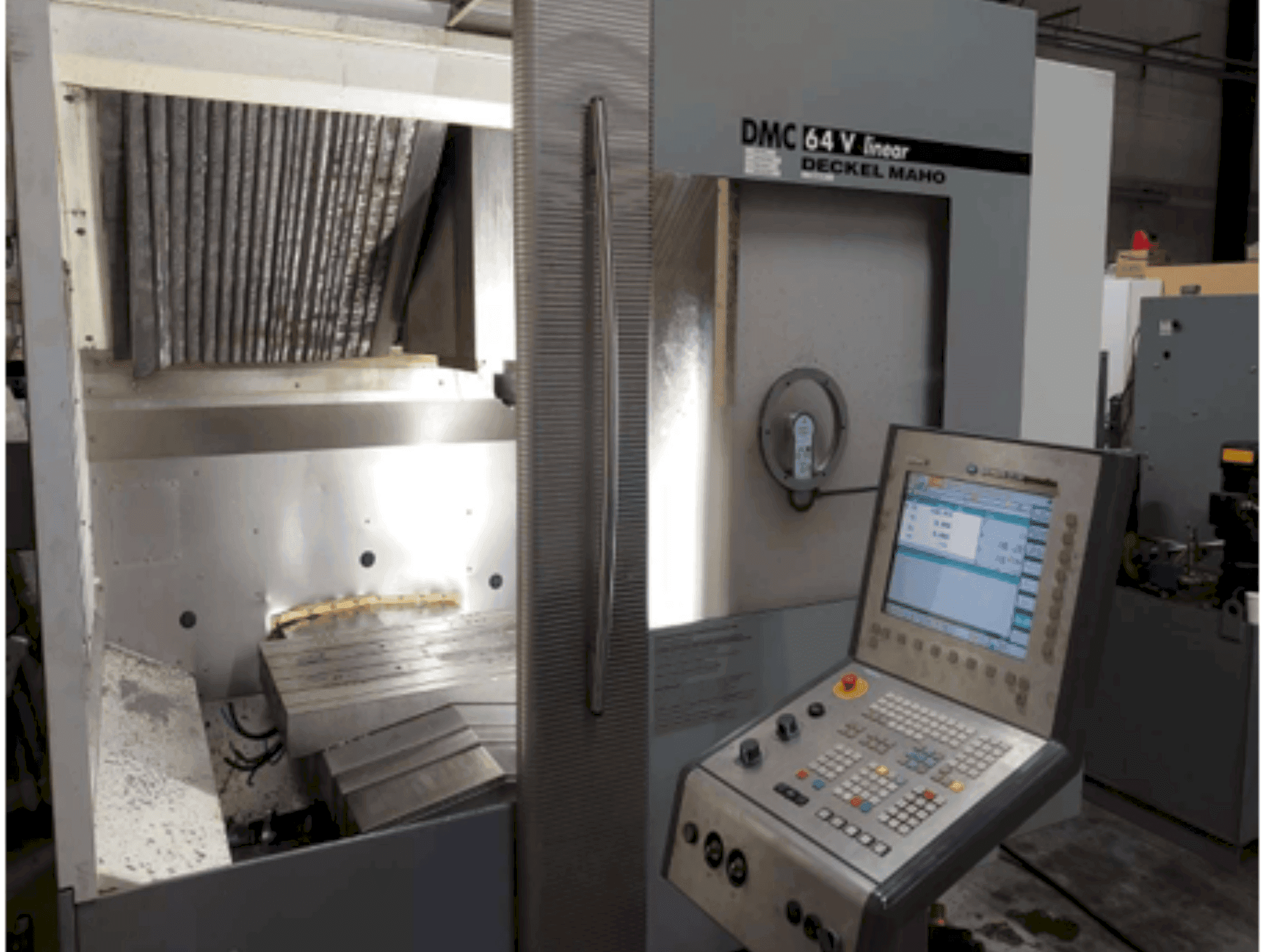

This 3-axis DMG DECKEL MAHO DMC 64V linear was manufactured in 2007. It features a Siemens 810D ShopMill control, SK40 spindle with speeds up to 12,000 rpm, and a tool magazine with 30 positions. The machine includes a chip conveyor, coolant gun, and a high-pressure coolant system. Ideal for precise and efficient machining. Contact us for more information about this machine.

Overview

brand: DMG DECKEL MAHO
year: 2007
MODEL: DMC 64V linear
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG DECKEL MAHO DMC 64V linear

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 810D powerline and ShopMill

Dimensions

Machine Weight: 7500 kg
Table Load: 600 kg

Movement

Number of Axes: 3
X-axis Travel: 640 mm
Y-axis Travel: 600 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

Additional Equipment

Chip conveyor
Coolant gun
Flushing system
Programmable spindle air blast
VISIPORT rotating inspection window
Electrostatic oil mist extractor
Siemens handwheel

Machine Benefits

Technical machine benefits:

Workpiece Table size: 850 × 600 mm
Coolant through spindle, 20 bar
600 L system with filtration unit
Condition: Machine after full inspection (spindle, geometry, oils/grease replaced).

Extra Information

Tool magazine: 30 positions, 2 sec tool change
Axis drives: X – linear drive; Y/Z – ball screws
Heidenhain linear scales on X/Y/Z
Full documentation, electrical diagrams, NC/PLC back-up on USB

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
