- ➤ Used DMG DECKEL MAHO DMC 64V linear | Machining Center

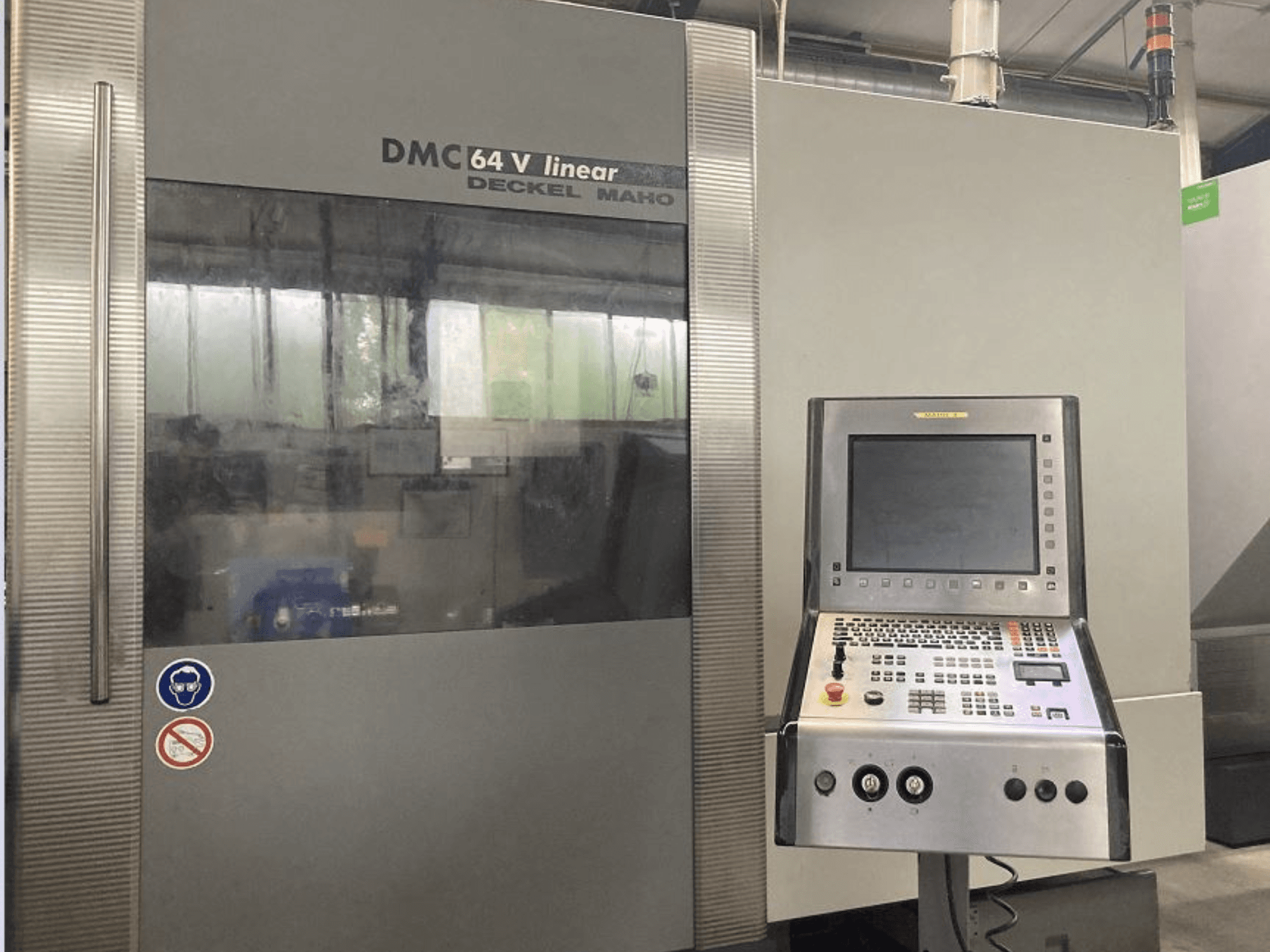

This 4-axis DMG DECKEL MAHO DMC 64V linear was manufactured in 2002. It features a travel of 640 mm on the X-axis, 600 mm on the Y-axis, and 500 mm on the Z-axis. The machine has a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 30. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMC 64V linear vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG DECKEL MAHO
- year: 2002
- MODEL: DMC 64V linear
- production hours: 24396
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DECKEL MAHO DMC 64V linear
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 7000 kg
- Table Length: 850 mm
- Table Load: 600 kg
- Table Width: 600 mm
Movement
- Number of Axes: 4
- X-axis Travel: 640 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Power: 14 kW
- Spindle Speed: 12000 RPM
- Tool Stations: 30
Additional Information
Condition: Used (good)
Operating hours: 24396 h
Electrical:
Nominal power: 39 kVA
Voltage: 400 V
Frequency: 50 Hz
Secondary voltage: 230 V
Control voltage: 24 V
Current: 63 A
Current (max): 56 A
Rapid traverse:
X: 70 m/min
Y: 40 m/min
Z: 40 m/min
Feed Force (X, Y, Z-Axis - 40% ED): 7000 N
Feed Speed (X, Y, Z-Axis): max. 40 m/min
Rapid Traverse (Y, Z-Axis): 40 m/min
Rapid Traverse (X-Axis): 60 m/min
Ball Screw Diameter/Pitch (X, Y-Axis): 40 x 15 mm
Position Accuracy (Y, Z-Axis Standard - Indirect Measurement System): 0.020 mm
Position Accuracy (X-Axis Standard - Direct Measurement System): 0.005 mm
Position Accuracy (Y, Z-Axis Option - Direct Measurement System): 0.008 mm
Resolution: 0.001 mm
Input Resolution (X, Y, Z-Axis): 0.001 mm
Main Drive Power (40% / 100% ED): 18 / 14 kW
Main Drive Torque (40% / 100% ED): 95 / 75 Nm
Front and Rear Spindle Bearing Diameter: No specification
Spindle Speed: Infinitely programmable from 0 to 12,000 min⁻¹
Setup Operation Spindle Speed: 0 to 800 min⁻¹
Program Check with Manual Intervention Spindle Speed: 0 to 5,000 min⁻¹
Motor Type: Direct drive via speed-controlled asynchronous motor with liquid cooling
Maximum Torque (S1 - 100% ED): 70 Nm
Maximum Torque (S6 - 40% ED): 100 Nm
Maximum Motor Power (S1 - 100% ED): 13 kW
Maximum Motor Power (S6 - 40% ED): 19 kW
Included Equipment: Chip Conveyor (Spiral type)
Chip Conveyor Discharge Height: 380 mm
On this machine, compressed air can be activated through the spindle using an M-code command
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
