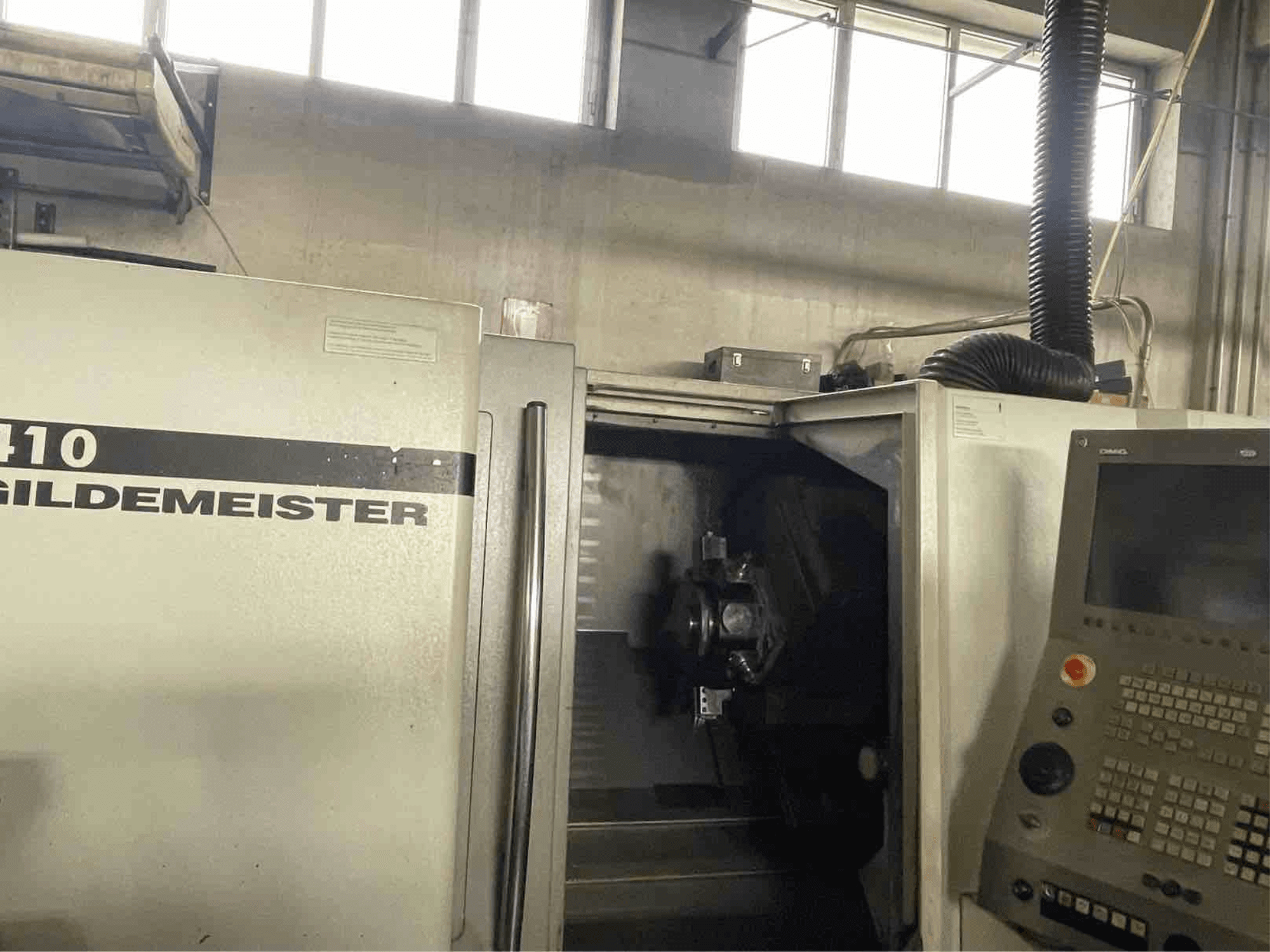

DMG CTX410

Photo Gallery

DMG - CTX410 IT-TUR-DMG-2008-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG CTX410 For Sale | gindumac.com

Show in original language

This 4-axis DMG CTX410 was manufactured in 2008. It features a maximum turning length of 600 mm and a turning diameter of 320 mm. The machine is equipped with a powerful spindle capable of reaching speeds up to 5,000 rpm and includes a turret with 12 positions for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the DMG CTX410 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DMG
year: 2008
MODEL: CTX410
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - DMG CTX410

Dimensions

Machine Height: 1770 mm
Machine Length: 4300 mm
Machine Weight: 5300 kg
Machine Width: 1715 mm

Movement

Number of Axes: 4
X-axis Travel: 250 mm
Y-axis Travel: 40 mm
Z-axis Travel: 635 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 21 kW
Spindle Speed: 5000 RPM

Additional Information

Rapid traverse (X/Y/Z): 24 / 10 / 30 m/min
Main spindle:
- Spindle bore: 87 mm
- Bar capacity: 65 / 75 mm
- Max torque: 240 Nm
C-axis:
- Speed: 200 rpm
- Torque: 200 Nm
- Indexing accuracy: 0.04°
Turret:
- Stations: 12
- Tool holder: VDI 30
- Driven tools: Yes (all 12 positions)
- Driven tool speed: up to 4,000 rpm
Turning capacity:
- Max turning length: 600 mm
- Max turning diameter: 320 mm
Equipment: Tailstock
Electrical:
- Total power: 44 kVA
- Voltage: 400 V
- Frequency: 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
