➤ Used DMG CTX 310 eco For Sale | gindumac.com

Show in original language

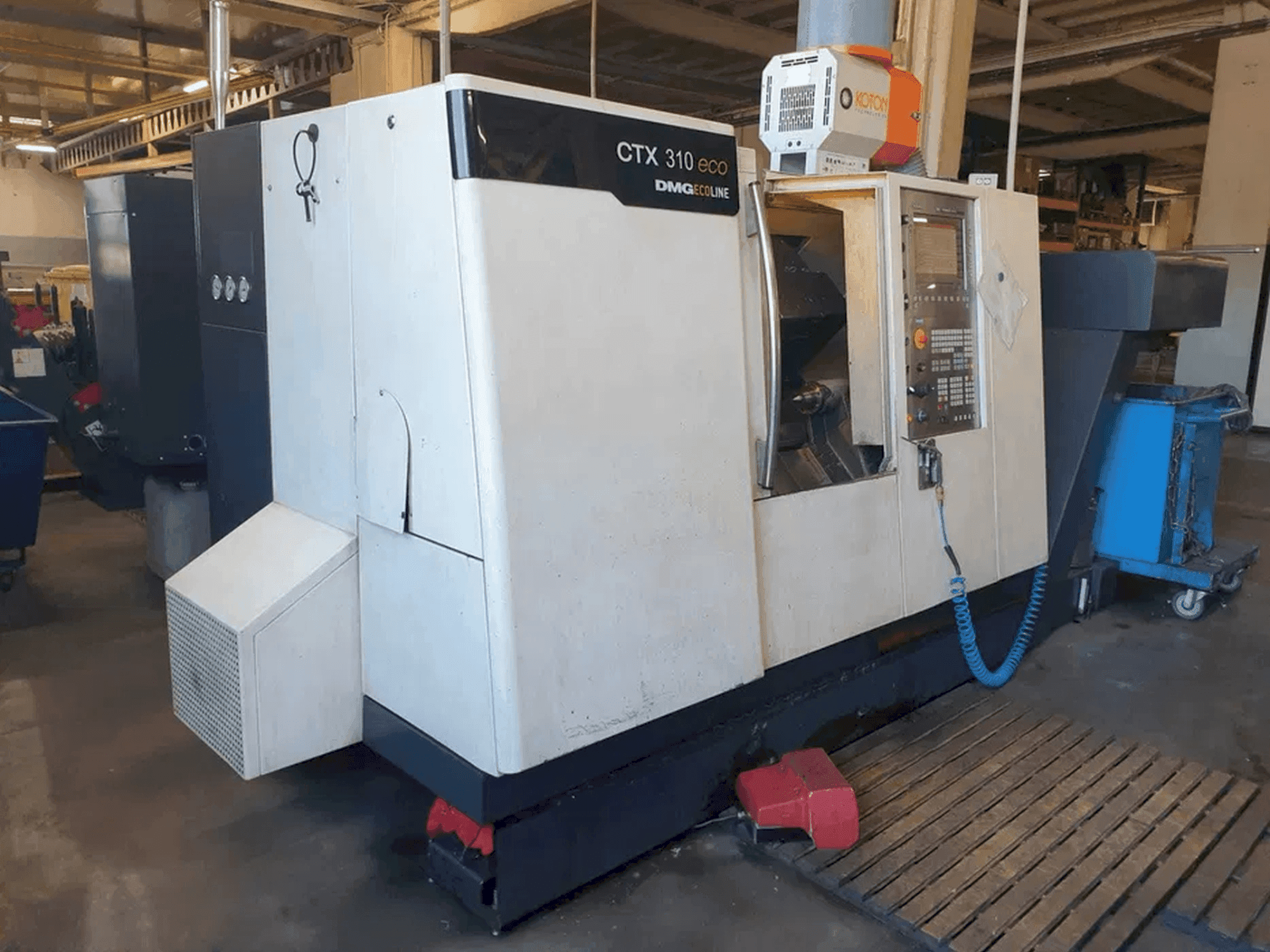

This DMG CTX 310 eco was manufactured in 2009. A robust horizontal turning machine, it offers reliable performance for precision machining. Ideal for those looking to enhance their turning capabilities. Contact us for more information.

Overview

brand: DMG
year: 2009
MODEL: CTX 310 eco
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG CTX 310 eco

General Data

Measurements width: 1700 MM
Measurements depth: 4150 MM
Measurements height: 2250 MM
Machine weight: 3400 KG

Control Unit

Brand: SIEMENS
Model: 810D powerline

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: (40% / 100% DC): 16.5 / 11 kW
Spindle bore: 51 mm
Number of axis: 2

Movement

X-AXIS Movement: 160 mm
X-AXIS Rapid traverse: 24 mm/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 24 mm/min

Media

Chip conveyor: Yes

Additional equipment

- 12-position turret head
- Work area lighting
- Foot switch

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 200 mm
- - Max through diameter: 330 mm
- - Max through diameter over cross slide: 260 mm
- - Maximum spindle torque (40% / 100% dc): 166. 5 / 112 nm
- - Tailstock quill stroke: 400 mm
- - Tailstock force: 400 dan
- - Installed power: 21 kva
- - Power supply: 400 v; 50/60 hz

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
