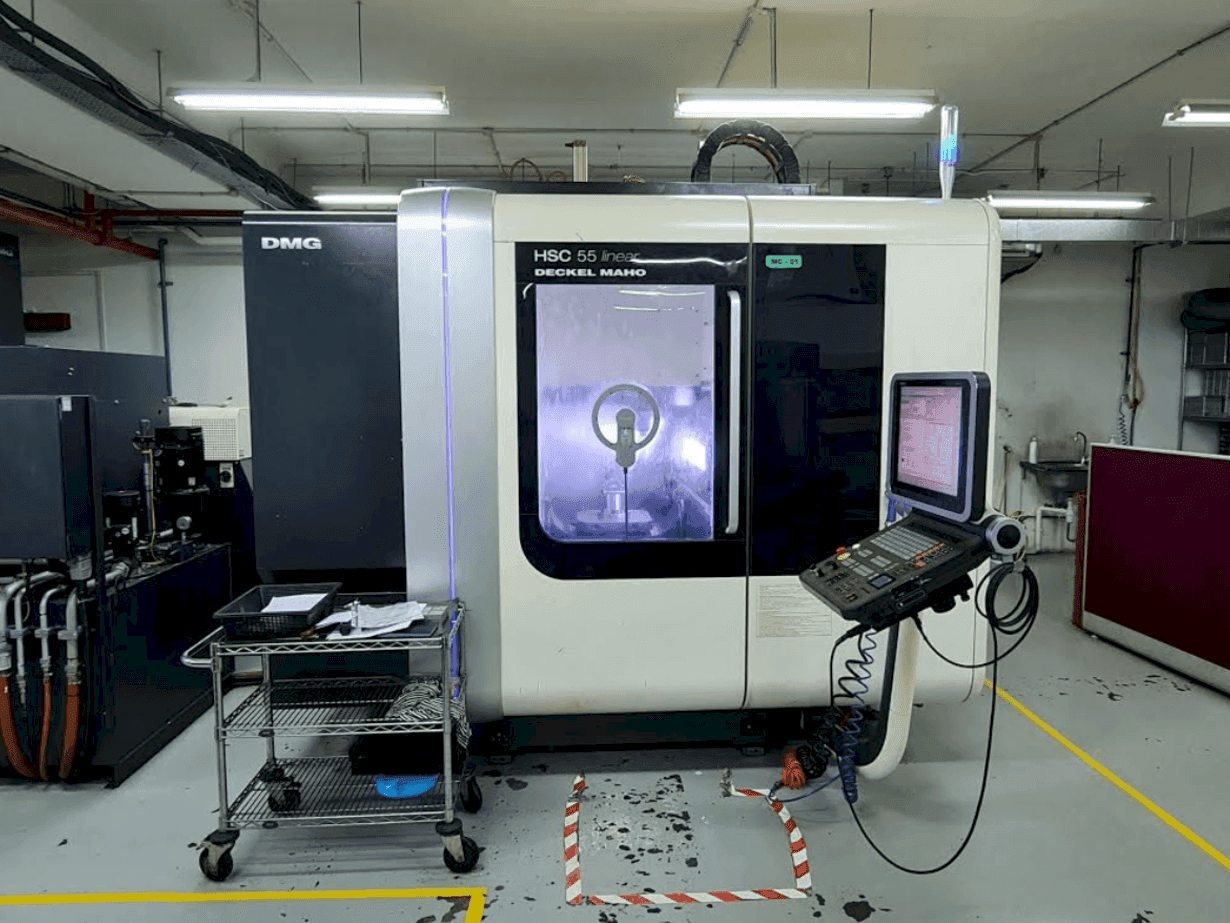

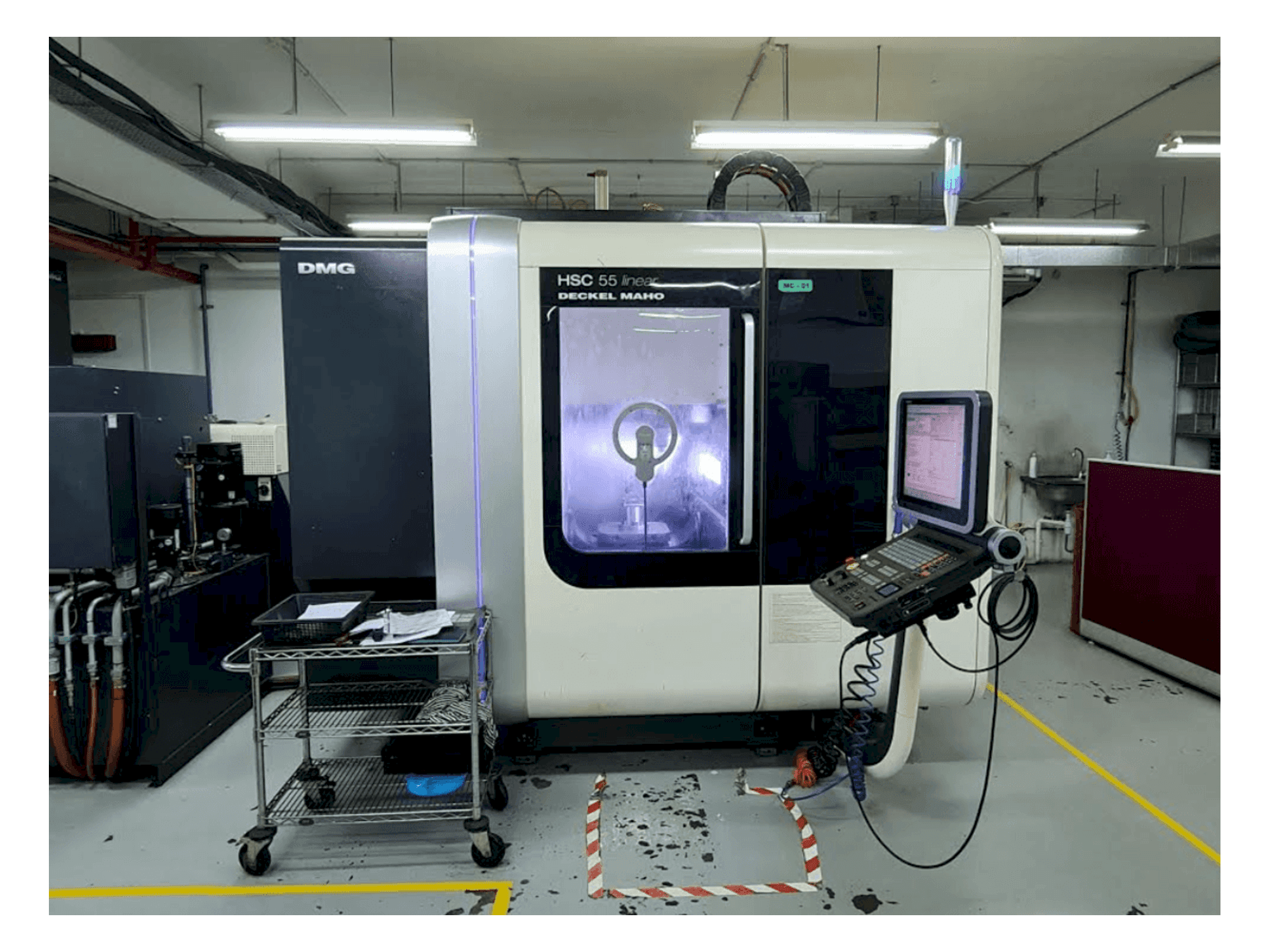

DECKEL MAHO HSC 55 linear

Photo Gallery

DECKEL MAHO - HSC 55 linearSG-MIL-DEC-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO HSC 55 Milling

Show in original language

This DECKEL MAHO HSC 55 linear Universal Machining Center was built in the year 2012. It is equipped with a Heidenhain iTNC 530 HSCI – 3D control unit. This machine can perform with a spindle speed range up to 28000 rpm. The machine counts with a Direct absolute measuring system with air purage, a Tropical Climate Package, a Laminated safety glass and a Coolant.

Overview

brand: DECKEL MAHO
year: 2012
MODEL: HSC 55 linear
application type: Milling
Location: Singapore
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO HSC 55 linear

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530 HSCI – 3D – 19"display

Movement

Number of Axes: 5
X-axis Travel: 450 mm
Y-axis Travel: 580 mm
Z-axis Travel: 460 mm

Technical Specification

Spindle Speed: 28000 RPM

Additional Information

Additional equipment

Signal Lamp 4 color
Direct absolute measuring system with air purage
Active chiller for spindle
Safety package for power failure
Tropical Climate Package
Laminated safety glass
Coolant – airblast change over by M-code

Machine Benefits

Qualitative Machine Benefits

Spindle thru’ coolant 40 bar – paper filter system

Technical Machine Benefits

Tool tape hsk-a63
Atc 60 magazine
Tilting a axis +10deg / -110deg
C axis 360 x 0. 001deg
Permanent cooling of a & c motor
Laser tool measuring, tool length & diameter - renishaw
Infrared touch probe pp60
Electronic hand-wheel
3d quick set for 5 axis calibration
Application tuning cycle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
