➤ Used DECKEL MAHO DMU 125 P hi-dyn | Universal Center

Show in original language

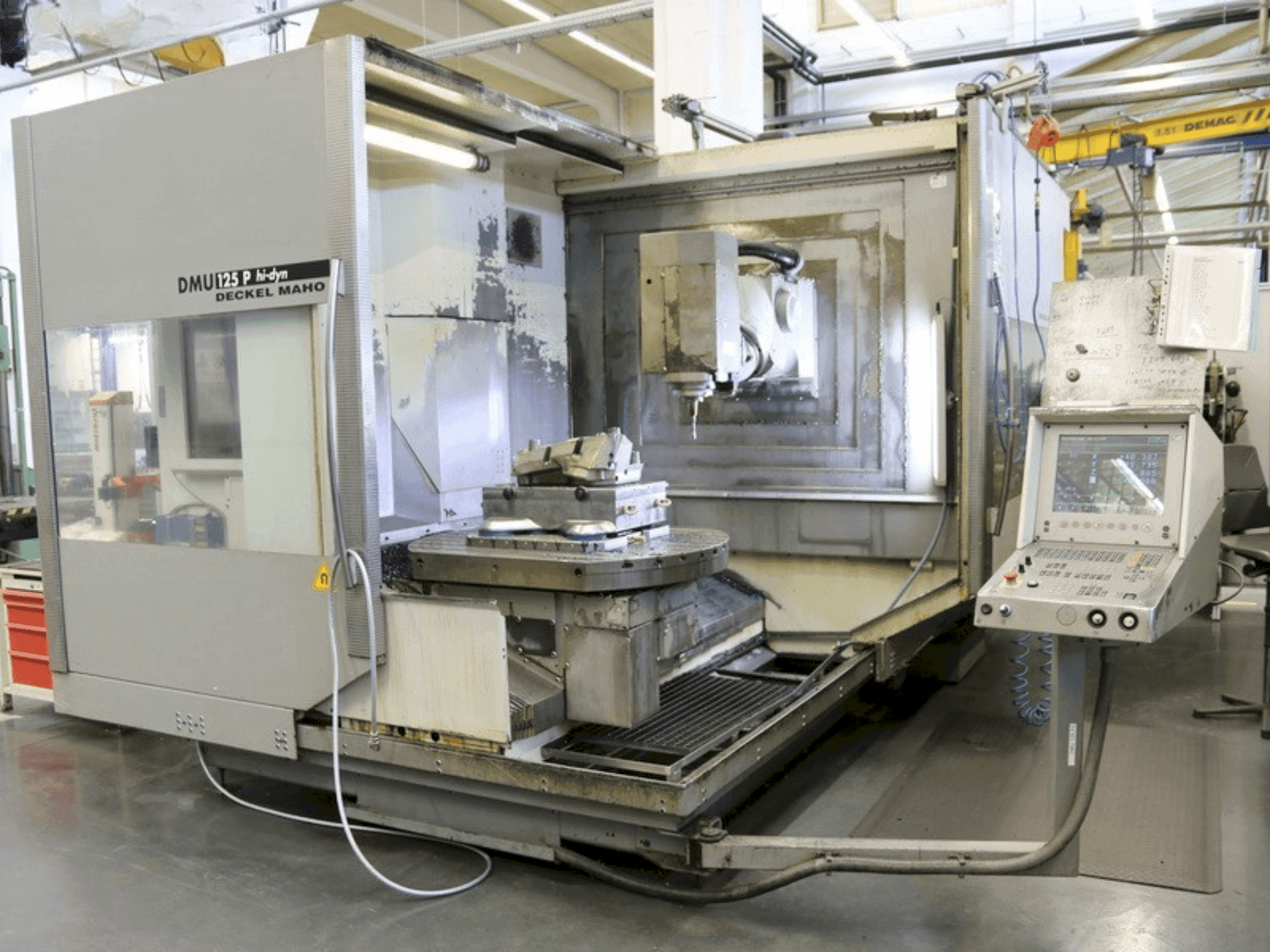

This 5-axis DECKEL MAHO DMU 125 P hi-dyn was manufactured in 2000. It features a Heidenhain TNC 426 control, a swiveling head, and a NC rotary table with a 360° B-axis rotation. The main spindle supports up to 8,000 rpm with a power of 15 kW. It includes a 30-position tool magazine and a high-pressure coolant system. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMU 125 P hi-dyn machine we have for sale. Contact us for more information.

Overview

brand: DECKEL MAHO
year: 2000
MODEL: DMU 125 P hi-dyn
application type: Milling
Location: Slovenia
machine type: Universal Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 125 P hi-dyn

General Data

Measurements width: 6000 mm
Measurements depth: 7000 mm
Measurements height: 3000 mm
Machine weight: 12200 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 426

Main drive

Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 15 / 10 kW
Tool taper: SK 50
Number of axis: 4+1

Movement

X-AXIS Movement: 1250 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 880 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 40 m/min

Table

Number of tslots: 9
Table load: 2000 kg

Tools

Number of stations: 30
Max weight: 20 kg
Max tool diameter: 110 mm
Max tool length: 420 mm

Media

Chip conveyor: Yes

General Data

Measurements width: 6000 mm
Measurements depth: 7000 mm
Measurements height: 3000 mm
Machine weight: 12200 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 426

Main drive

Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 15 / 10 kW
Tool taper: SK 50
Number of axis: 4+1

Movement

X-AXIS Movement: 1250 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 880 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 40 m/min

Table

Number of tslots: 9
Table load: 2000 kg

Tools

Number of stations: 30
Max weight: 20 kg
Max tool diameter: 110 mm
Max tool length: 420 mm

Media

Chip conveyor: Yes

Additional equipment

- Documentation
- Coolant System
- High-pressure Coolant (40 bar)
- Through-spindle Coolant
- Electronic Handwheel
- 90° Swivelling Milling Head (H/V)
- 30-position Tool Magazine
- Touch Probe M&H RMP 2000
- Hydraulic System
- Oil Mist Extraction

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Torque: 130 nm
- - Swivelling head (h/v): ±90°
- - Feed speed: 0 – 15000 mm/min
- - Table size: 1250 x 1000 mm
- - C-axis rotation: 360° / 0. 001°
- - Distance from spindle center to column: 900 mm
- - T-slot distance: 100 mm // t-slot width: 18 h7 mm
- - Center hole: 50 h6 mm
- - Max. Table torque: 3500 nm // max. Table rotation speed: 8 rpm
- - Nc rotary table

Extra information

- Work Light The offer includes the Tool Presetting Device ZOLLER Venturion 400 Total Power Requirement: 55 kVA Max. Tool Diameter (with Adjacent Positions Free): 230 mm Tool Change Time (tool-to-tool): 3.0 sec Chip-to-chip Time (Vertical / Horizontal): 11 / 16 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
