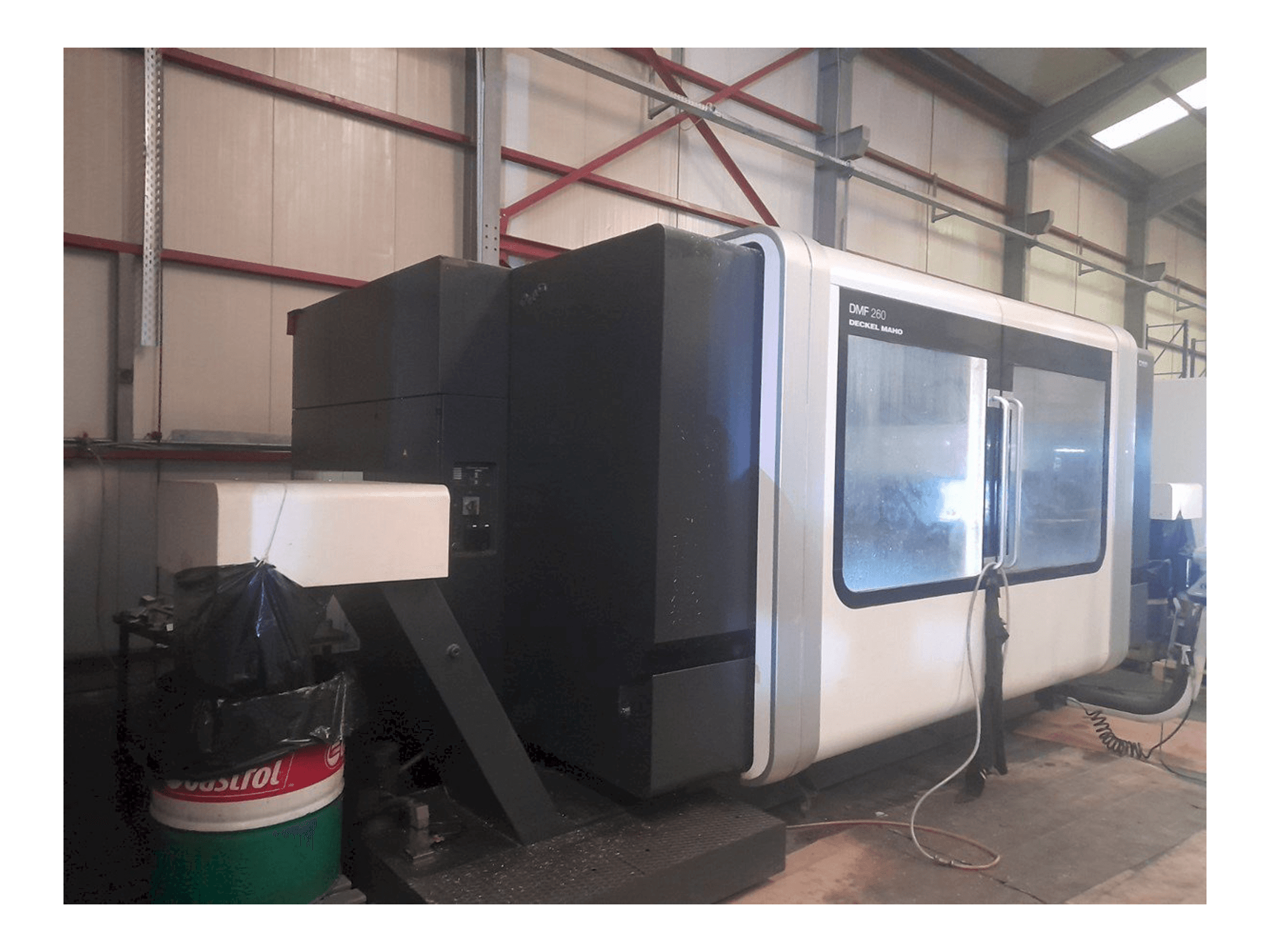

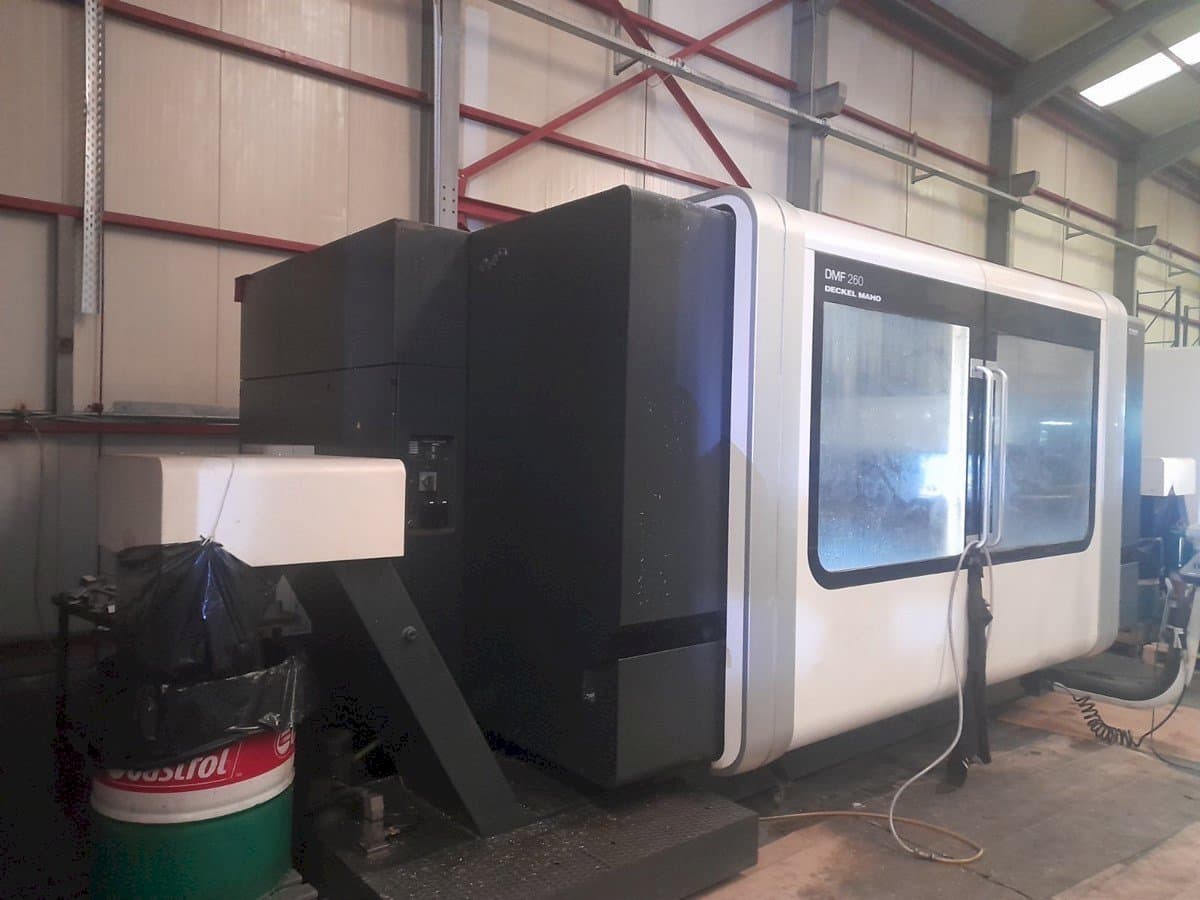

Left side view of DECKEL MAHO DMF 260  machine

DECKEL MAHO DMF 260

DECKEL MAHO - DMF 260

2010

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DECKEL MAHO DMF 260 Vertical Machine Center was built in Germany in the year 2010 and has 29271 hours, of which 14211 are spindle hours. It is equipped with a 3D-control Siemens 840D solution line operation mode ShopMill Open ERGOline® Control, a 19" display, and has 3 axis. The machine has a spindle speed of 20 - 8000 rpm.

Overview

  • brand: DECKEL MAHO
  • year: 2010
  • MODEL: DMF 260
  • production hours: 29271
  • application type: Milling
  • Location: Greece
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: GR-MIL-DEC-2010-00001

Technical Information

Control Unit

  • Brand: Siemens
  • Model: 840D

Main drive

  • Spindle speed range: 20 - 8000 1/MIN
  • Spindle motor power: 23.5/13.5 kW
  • Tool taper: SK40 DIN 69871
  • Number of axis: 3

Movement

  • X-AXIS Movement: 2600 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 700 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Rapid move 40 m/min
      • - Acceleration 4 m/s2
      • - Tool clamping according to din 69872
      • - Magazine for 30 tools (chain with double gripper)
      • - Chip-to-chip time 7,6 s
      • - Rigid table 2,900 x 700 mm
      • - Full-protective cabin, coolant tank
      • - Direct measuring systems
      • - Swarf conveyor (scraper conveyor) discharge height 950 mm
      • - Stop block hsk-a63/sk40/cat40
    • Qualitative Machine Benefits:
      • - Air purge for linear measuring systems x,y,z

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
